AXXA50L-JEZEBC (2019)
Toyota Avalon (China)
Production
Mar 2019
-
Jun 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )AXXA50

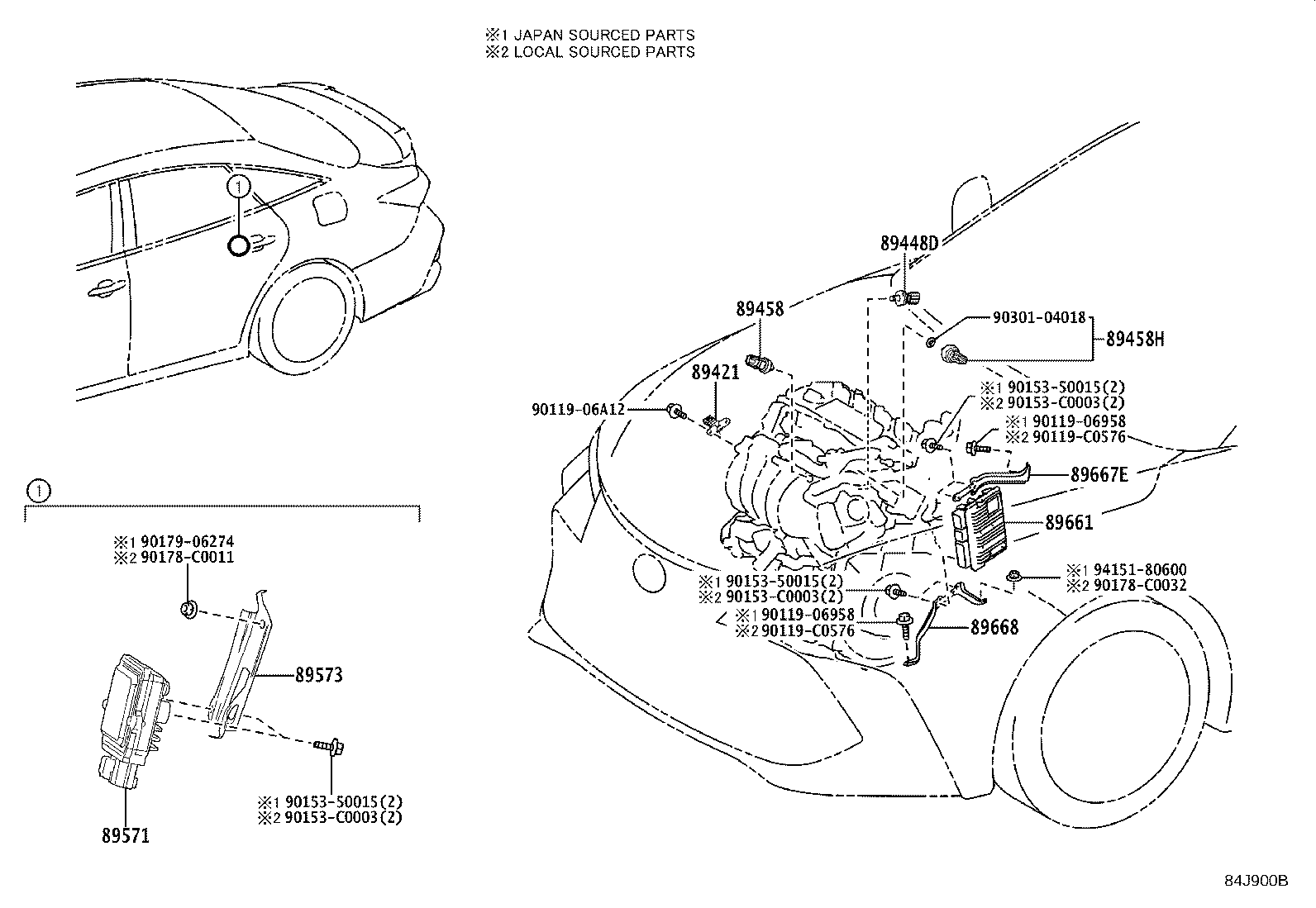

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-33010 |
AXXA50,MXXA50 |
1 | ||
| 89448D - SENSOR, OIL PRESSURE & TEMPERATURE | ||||
| 89448-33010 |
AXXA50,MXXA50 |
1 | ||
| 89458 - SENSOR, FUEL PRESSURE | ||||
| 89458-33030 |
AXXA50,MXXA50 |
1 | ||
| 89458H - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-33041 |
AXXA50,MXXA50 |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-33030 |
AXXA50,AXXH50 |
1 | ||
| 89571-42010 |
AXXA50,MXXA50 |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-07010 |
AXXA50,AXXH50 |
1 | ||
| 89573-07020 |
AXXA50,MXXA50 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-07730 |
AXXA50 DENSO |
1 | ||
| 89661-07740 |
AXXA50 DENSO,EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 89661-07740 |
AXXA50 DENSO |
1 | ||
| 89661-07741 |
AXXA50 DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-07080 |
AXXA50,MXXA50 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-07080 |
AXXA50,MXXA50 |
1 | ||
| Common parts | ||||
| 90119-06958 | ||||
| 90119-06A12 | ||||
| 90119-C0576 | ||||
| 90153-50015 | ||||
| 90153-C0003 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90179-06274 | ||||
| 90301-04018 | ||||
| 94151-80600 | ||||
