AXXA50L-JEZEBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jun 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

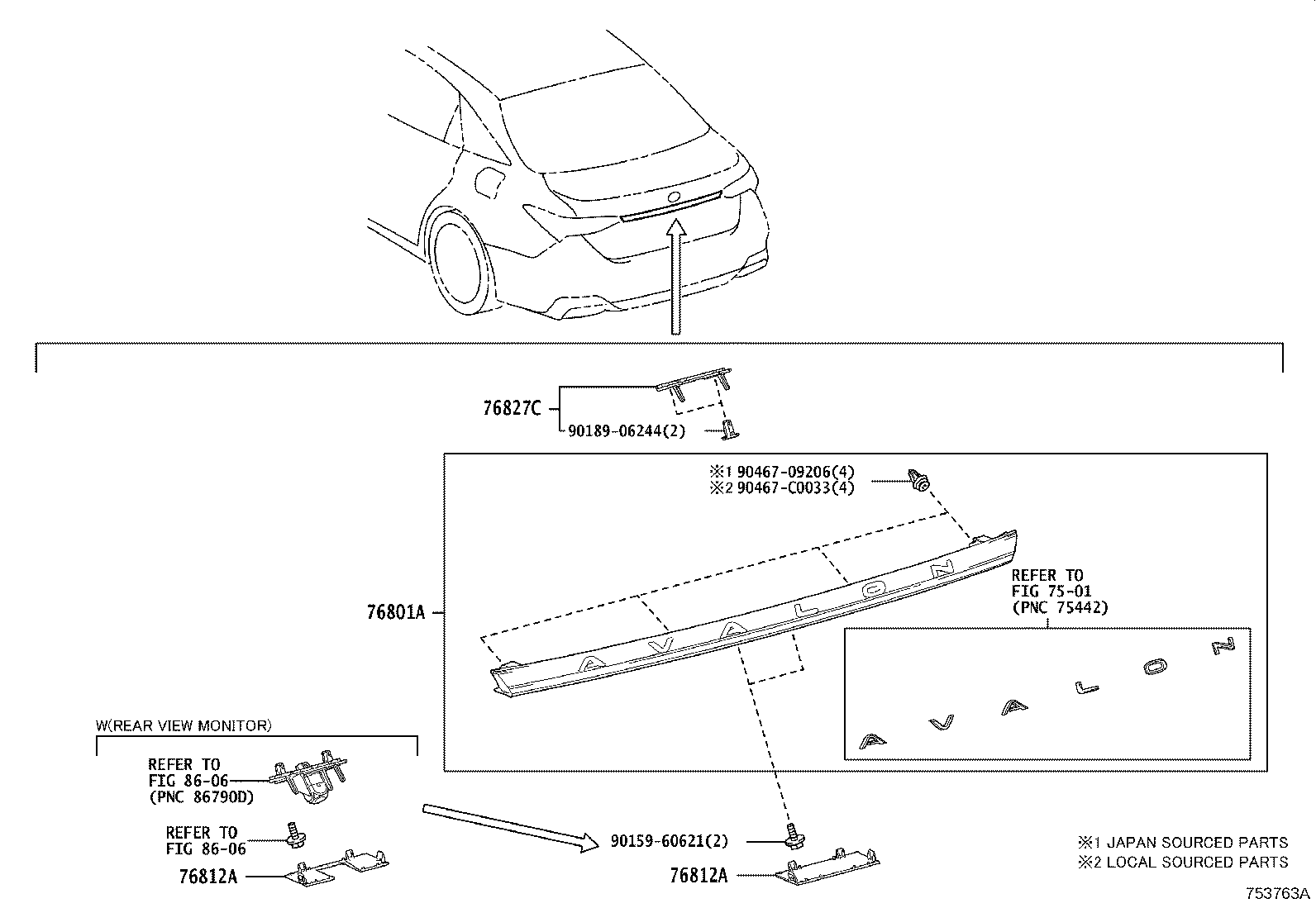

Click highlighted areas on diagram

diagram 7501 76801A 76812A 76812A 76827C 8606 8606 9015960621 9018906244 9046709206 90467C0033
Part # Description Qty Price
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-07110

AXXA50,AXXH50

 1
76801-07111

AXXA50,MXXA50

 1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-07020

AXXA50,MXXA50..B,G

 1
76812-07020

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
76812-07030

AXXA50,MXXA50..E

 1
76812A - GARNISH, BACK DOOR, OUTSIDE NO.2
76812-07020

AXXA50,MXXA50..B,G

 1
76812-07020

AXXA50..E

B GRADE PACKAGE(W/BACK MONITOR)

 1
76812-07030

AXXA50,MXXA50..E

 1
76827C - RETAINER, LUGGAGE COMPARTMENT DOOR GARNISH, NO.2
76829-07010

AXXA50,MXXA50..E

 1
Common parts
90159-60621
90189-06244
90467-09206
90467-C0033
Linked diagrams
7501
8606
