AXXA50L-JEZEBC (2019)
Toyota Avalon (China)
Production
Mar 2019
-
Jun 2021
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1903- )

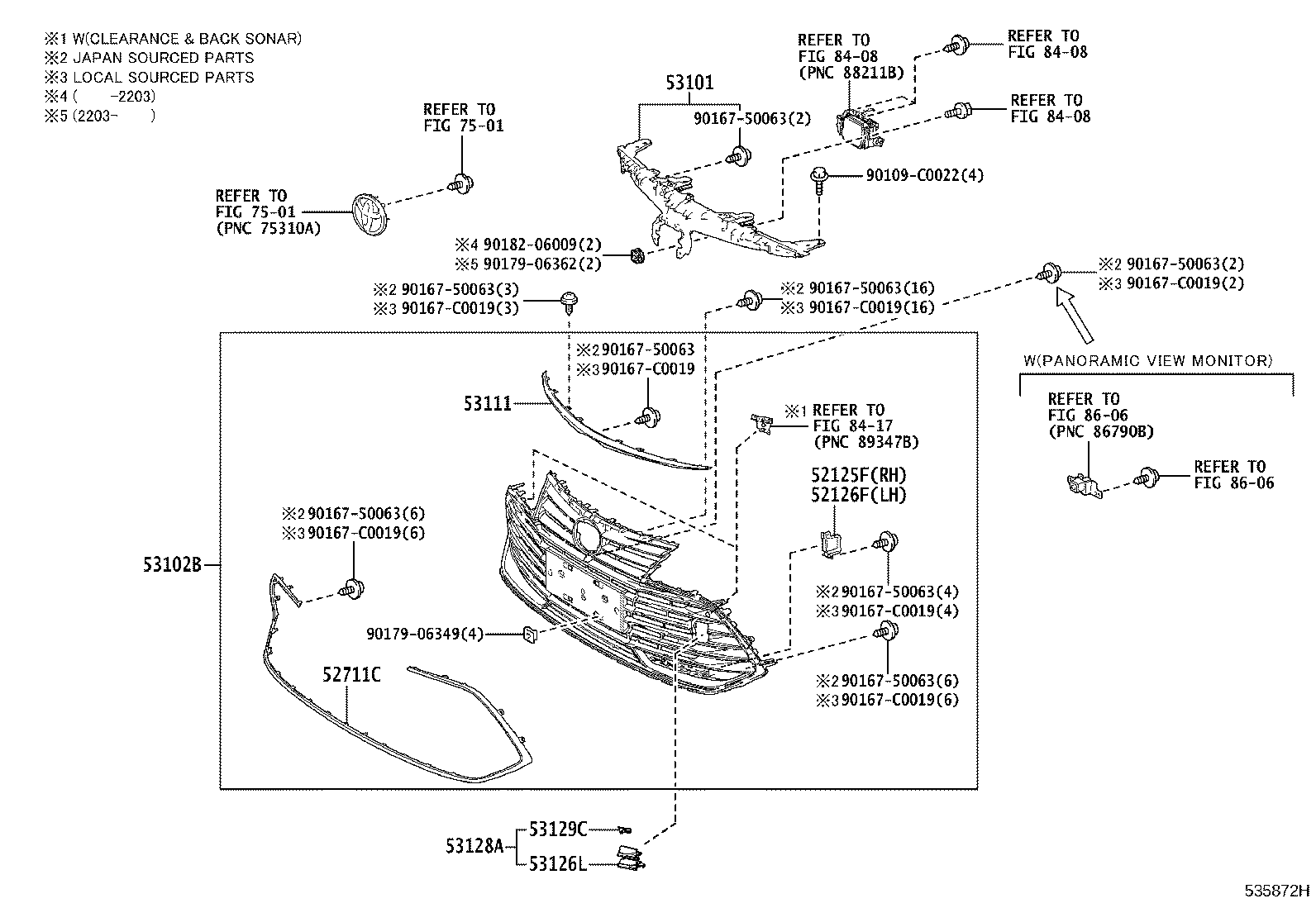

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52125F - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-07020 |
AXXA50,MXXA50 |
1 | ||
| 52126F - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-07040 |
AXXA50,MXXA50 |
1 | ||
| 52711C - MOULDING, FRONT BUMPER | ||||
| 52711-07080 |
AXXA50,MXXA50 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-07210 |
AXXA50,MXXA50 |
1 | ||
| 53102B - GRILLE SUB-ASSY, RADIATOR, LOWER | ||||
| 53102-07180 |
AXXA50,MXXA50..B,E |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53111-07110 |
AXXA50,MXXA50 |
1 | ||
| 53126L - MOULDING, RADIATOR GRILLE, NO.6 | ||||
| 53126-07010 |
AXXA50,MXXA50 |
1 | ||
| 53128A - GRILLE, RADIATOR, LOWER LH | ||||
| 53128-07010 |
AXXA50,MXXA50 |
1 | ||
| 53129C - MOULDING, RADIATOR GRILLE, NO.9 | ||||
| 53129-07010 |
AXXA50,MXXA50 |
1 | ||
| Common parts | ||||
| 90109-C0022 | ||||
| 90167-50063 | ||||
| 90167-C0019 | ||||
| 90179-06349 | ||||
| 90179-06362 | ||||
| 90182-06009 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
| 8417 | ||||
| 8606 | ||||
