AXXA50L-JEZEBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jun 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )AXXA50,MXXA50

Click highlighted areas on diagram

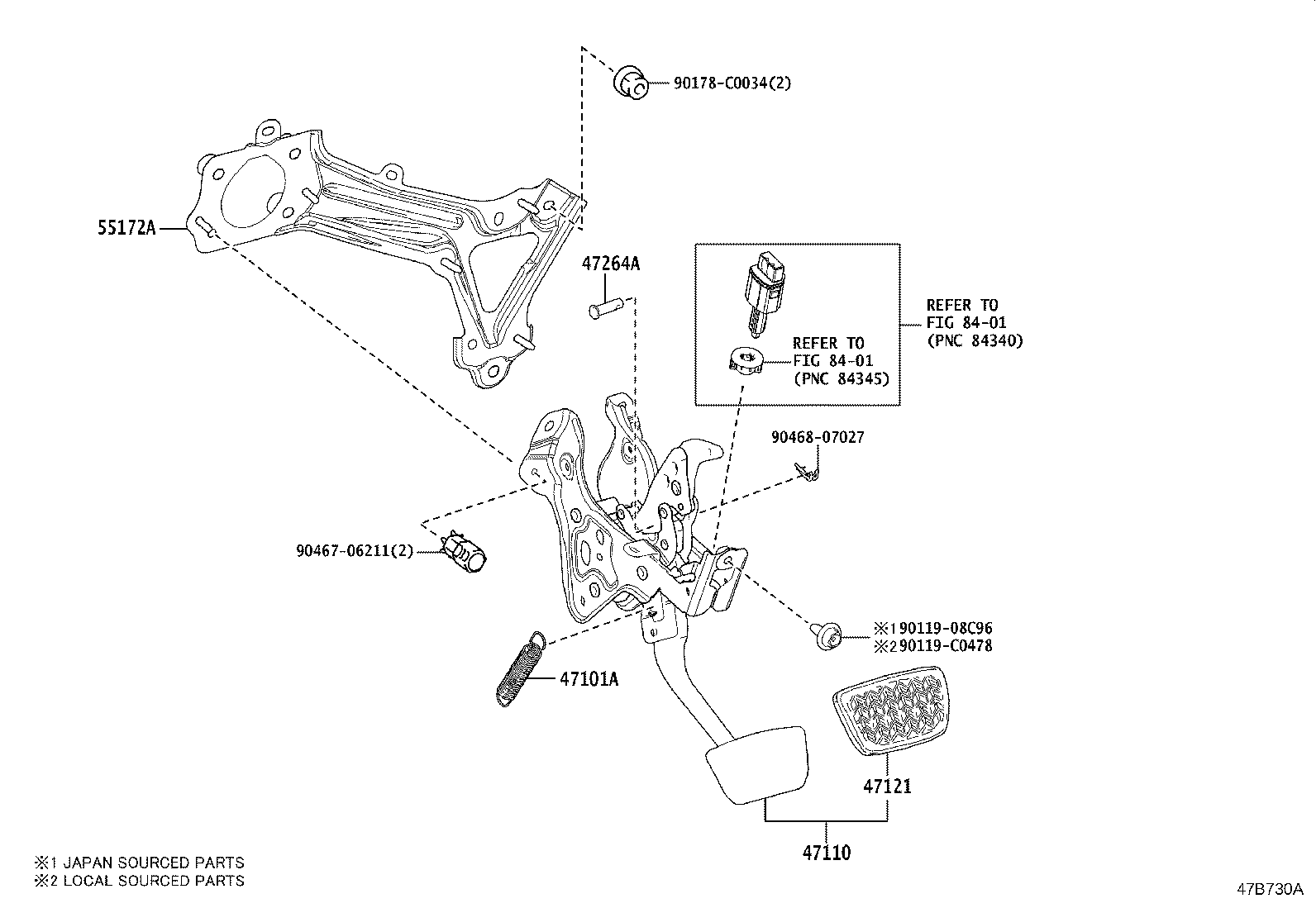

diagram 47101A 47110 47121 47264A 55172A 8401 8401 9011908C96 90119C0478 90178C0034 9046706211 9046807027
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-12046

AXXA50,MXXA50

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-07070

AXXA50,MXXA50

 1
47121 - PAD, BRAKE PEDAL
47121-07020

AXXA50,MXXA50

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

AXXA50,AXXH50,MXXA50

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-07030

AXXA50,MXXA50

 1
Common parts
90119-08C96
90119-C0478
90178-C0034
90467-06211
90468-07027
Linked diagrams
8401
