AXXA50L-JEZEBC (2019)

Toyota Avalon (China)

Production Mar 2019 - Jun 2021
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )B,E,G

Click highlighted areas on diagram

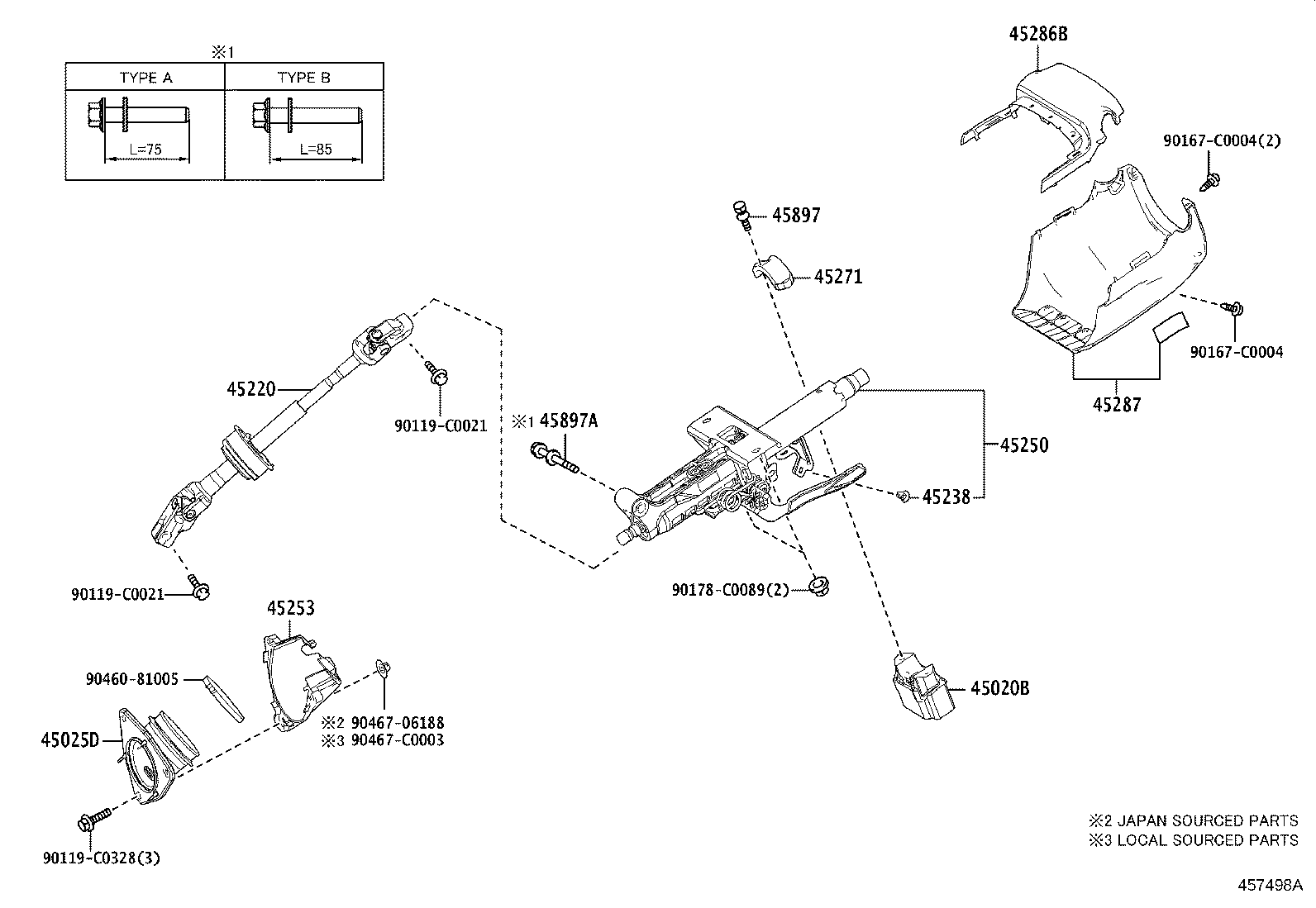

MANUAL TILT STEERING

diagram 45020B 45025D 45220 45238 45250 45253 45271 45286B 45287 45897 45897A 90119C0021 90119C0021 90119C0328 90167C0004 90167C0004 90178C0089 9046081005 9046706188 90467C0003
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-06290

AXXA50,MXXA50

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-06210

AXXA50,MXXA50

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-06280

AXXA50,AXXH50

 1
45220-06281

AXXA50,MXXA50

 1
45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45238-52010

AXXA50,MXXA50

 1
45250 - COLUMN ASSY, STEERING
45250-06B81

AXXA50,MXXA50

 1
45253 - COVER, STEERING COLUMN HOLE
45253-07050

AXXA50,MXXA50

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-52030

AXXA50,MXXA50

 1
45286B - COVER, STEERING COLUMN, UPR
45286-07070C0

AXXA50,MXXA50

BLACK,TRIM2#,4#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-07090C0

AXXA50,MXXA50

BLACK,TRIM2#,4#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AXXA50,MXXA50

 2
45897A - BOLT, TILT STEERING PAWL SET
90119-10980

AXXA50,MXXA50

TYPE A:REFER ILLUST.

 1
90119-C0427

AXXA50,MXXA50

TYPE B:REFER ILLUST.

 1
Common parts
90119-C0021
90119-C0328
90167-C0004
90178-C0089
90460-81005
90467-06188
90467-C0003
