Toyota Avalon MCX20 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-02060	MCX20	06/2002 - 12/2999	1
88375-02060	MCX20	08/1999 - 06/2002	1
88460 - CONDENSER ASSY, COOLER
88460-07032	MCX20	03/2001 - 06/2002	1
88460-07032	MCX20	06/2002 - 12/2999	1
88460-07031	MCX20	08/1999 - 03/2001	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030	MCX20	03/2000 - 06/2002	2
88467-06030	MCX20	06/2002 - 01/2005	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-06030	MCX20	03/2000 - 06/2002	2
88467-06030	MCX20	06/2002 - 01/2005	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-33030	MCX20	03/2000 - 06/2002	2
88467-33030	MCX20	06/2002 - 01/2005	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-33030	MCX20	03/2000 - 06/2002	2
88467-33030	MCX20	06/2002 - 01/2005	2
88474 - DRYER, COOLER
88474-47010	MCX20	03/2000 - 06/2002	1
88474-47010	MCX20	06/2002 - 01/2005	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	MCX20	08/1999 - 06/2002	1
88645-60030	MCX20	06/2002 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-07042	MCX20	06/2002 - 12/2999	1
88704-07041	MCX20	08/1999 - 01/2000	1
88704-07042	MCX20	01/2000 - 06/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-07010	MCX20	08/1999 - 06/2002	1
88711-07010	MCX20	06/2002 - 12/2999	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-07022	MCX20	06/2002 - 01/2005	1
88712-07021	MCX20	08/1999 - 06/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-07101	MCX20	06/2002 - 12/2999	1
88716-07101	MCX20	08/1999 - 06/2002	1
Common parts
88718-02160
88718-02170
88718-06040
88718-07030
88718-07050
88718-1A430
88718-41060
88718-41070
90080-11218
90080-11451
90099-00264
90178-A0014
90179-A0001
91631-B0625
Linked diagrams
8714
8719

MCX20L-AEPGKV (1999)

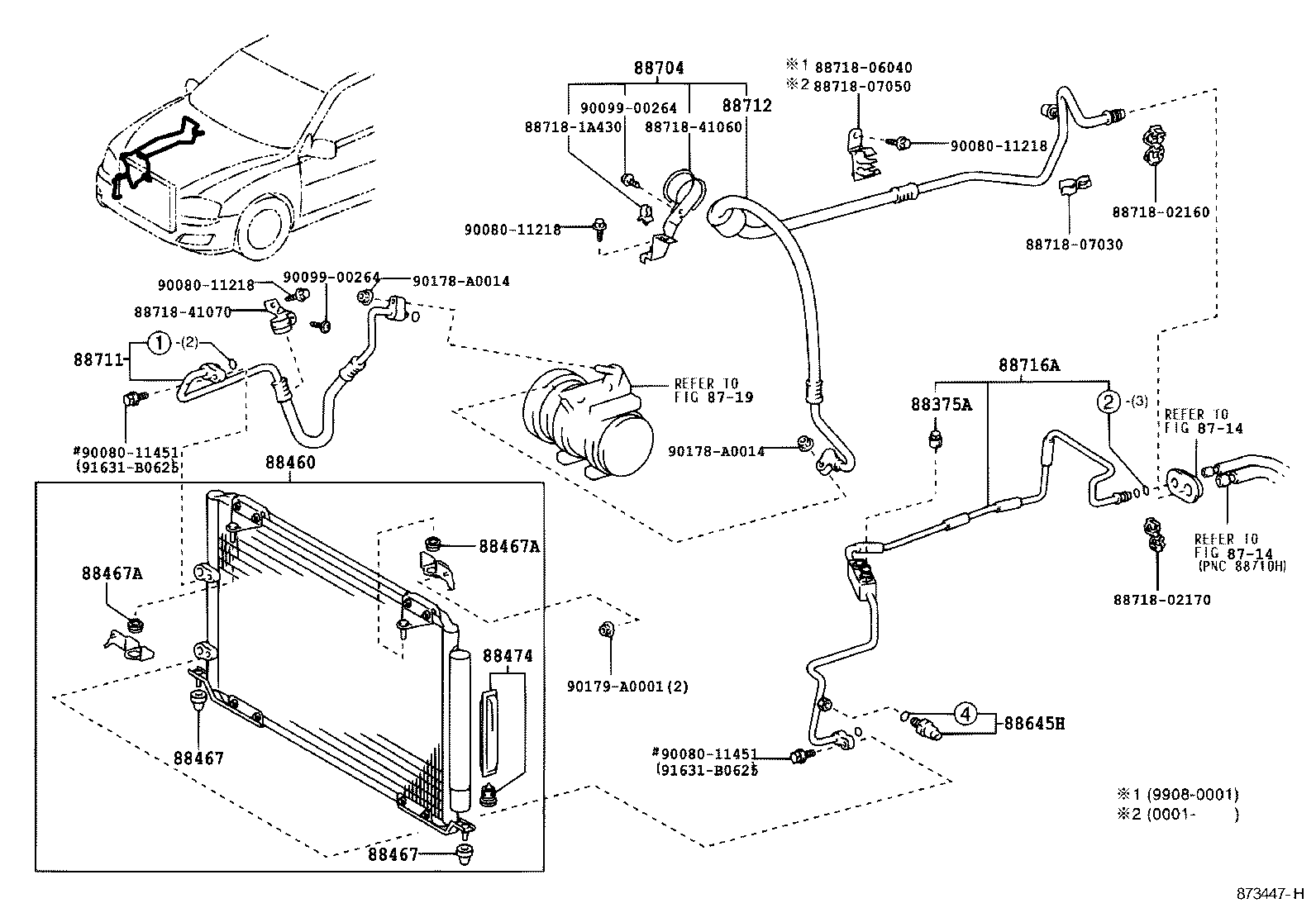

ILLUST NO. 1 OF 2(9908- )

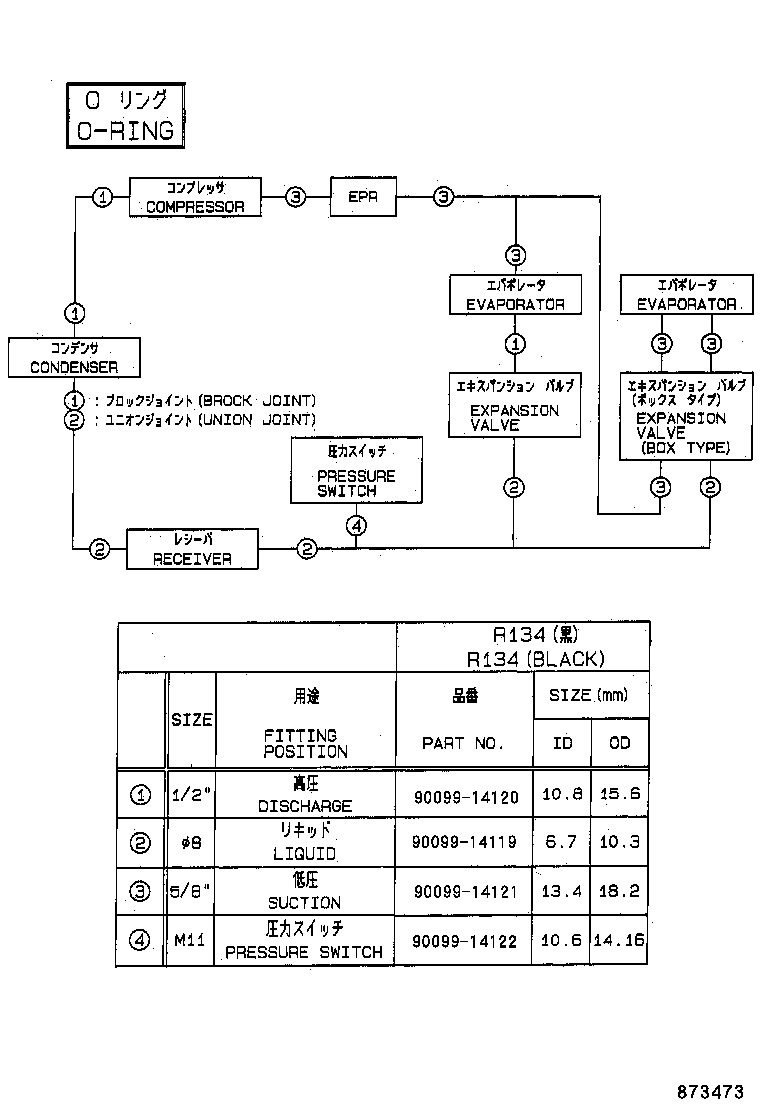

ILLUST NO. 2 OF 2(9908- )
