MCX20L-AEPGKV (1999)

Toyota Avalon

Production Aug 1999 - Jan 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

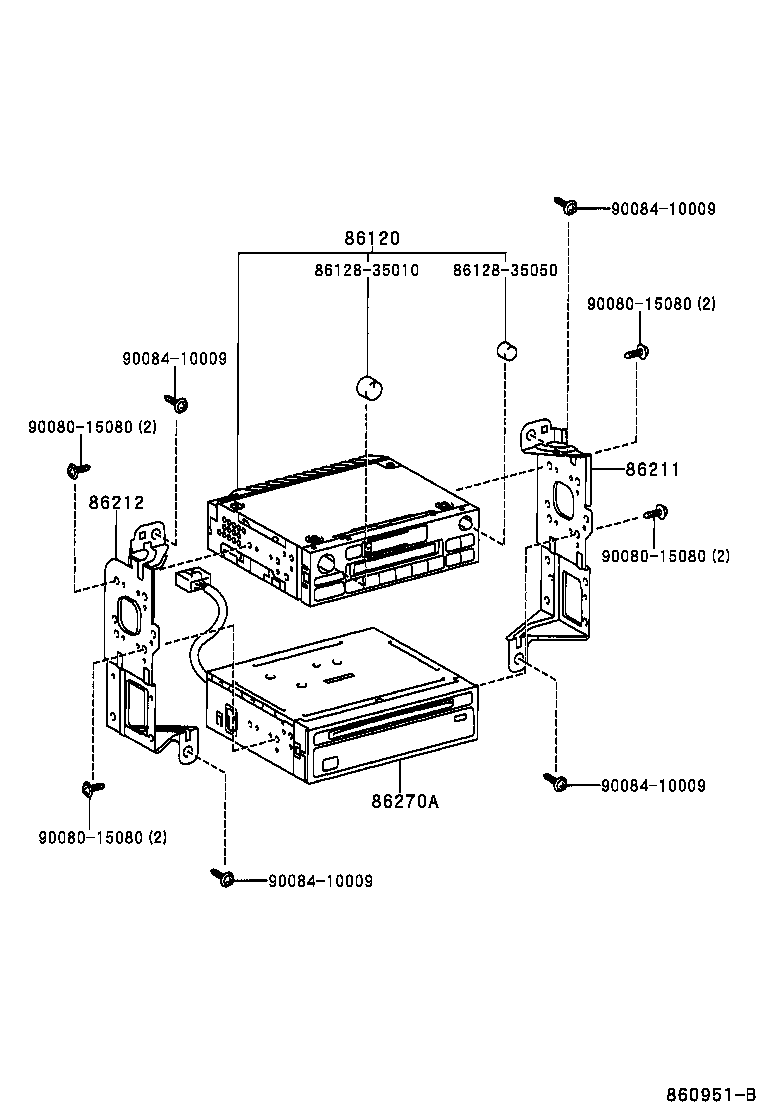

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 86120 8612835010 8612835050 86211 86212 86270A 9008015080 9008015080 9008015080 9008015080 9008410009 9008410009 9008410009 9008410009
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-60360

MCX20

MATSUSHITA, ID=57409

 1
86120-60360

MCX20

MATSUSHITA, ID=57409

 1
86211 - BRACKET, RADIO, NO.1
86211-AC030

MCX20

 1
86211-AC030

MCX20

 1
86212 - BRACKET, RADIO, NO.2
86212-AC030

MCX20

 1
86212-AC030

MCX20

 1
86270A - DISC PLAYER ASSY
86270-60050

MCX20

 1
86270-60050

MCX20

 1
Common parts
86128-35010
86128-35050
90080-15080
90084-10009

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

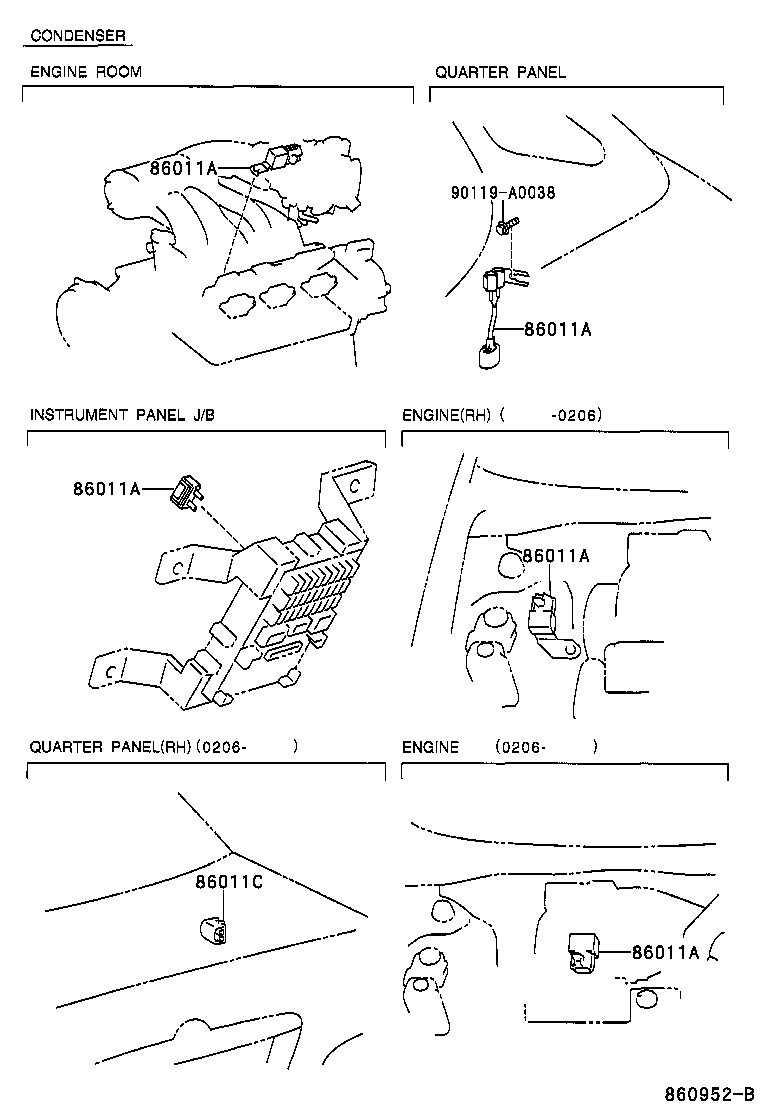

CONDENSER

diagram 86011A 86011A 86011A 86011A 86011A 86011C 90119A0038
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04153

MCX20

E/G (RH)

 1
90980-04129

MCX20

QUARTER PANEL

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 1
90980-04142

MCX20

E/G ROOM

 1
90980-04083

MCX20

ENGINE

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 2
90980-04129

MCX20

QUARTER PANEL

 1
90980-04142

MCX20

E/G ROOM

 1
86011A - CONDENSER, RADIO SETTING
90980-04153

MCX20

E/G (RH)

 1
90980-04129

MCX20

QUARTER PANEL

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 1
90980-04142

MCX20

E/G ROOM

 1
90980-04083

MCX20

ENGINE

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 2
90980-04129

MCX20

QUARTER PANEL

 1
90980-04142

MCX20

E/G ROOM

 1
86011A - CONDENSER, RADIO SETTING
90980-04153

MCX20

E/G (RH)

 1
90980-04129

MCX20

QUARTER PANEL

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 1
90980-04142

MCX20

E/G ROOM

 1
90980-04083

MCX20

ENGINE

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 2
90980-04129

MCX20

QUARTER PANEL

 1
90980-04142

MCX20

E/G ROOM

 1
86011A - CONDENSER, RADIO SETTING
90980-04153

MCX20

E/G (RH)

 1
90980-04129

MCX20

QUARTER PANEL

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 1
90980-04142

MCX20

E/G ROOM

 1
90980-04083

MCX20

ENGINE

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 2
90980-04129

MCX20

QUARTER PANEL

 1
90980-04142

MCX20

E/G ROOM

 1
86011A - CONDENSER, RADIO SETTING
90980-04153

MCX20

E/G (RH)

 1
90980-04129

MCX20

QUARTER PANEL

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 1
90980-04142

MCX20

E/G ROOM

 1
90980-04083

MCX20

ENGINE

 1
90980-04066

MCX20

INSTRUMENT PANEL J/B

 2
90980-04129

MCX20

QUARTER PANEL

 1
90980-04142

MCX20

E/G ROOM

 1
86011C - FILTER, NOISE
90084-98052

MCX20

 1
Common parts
90119-A0038
