MCX20L-AEPGKV (1999)

Toyota Avalon

Production Aug 1999 - Jan 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908-0501)

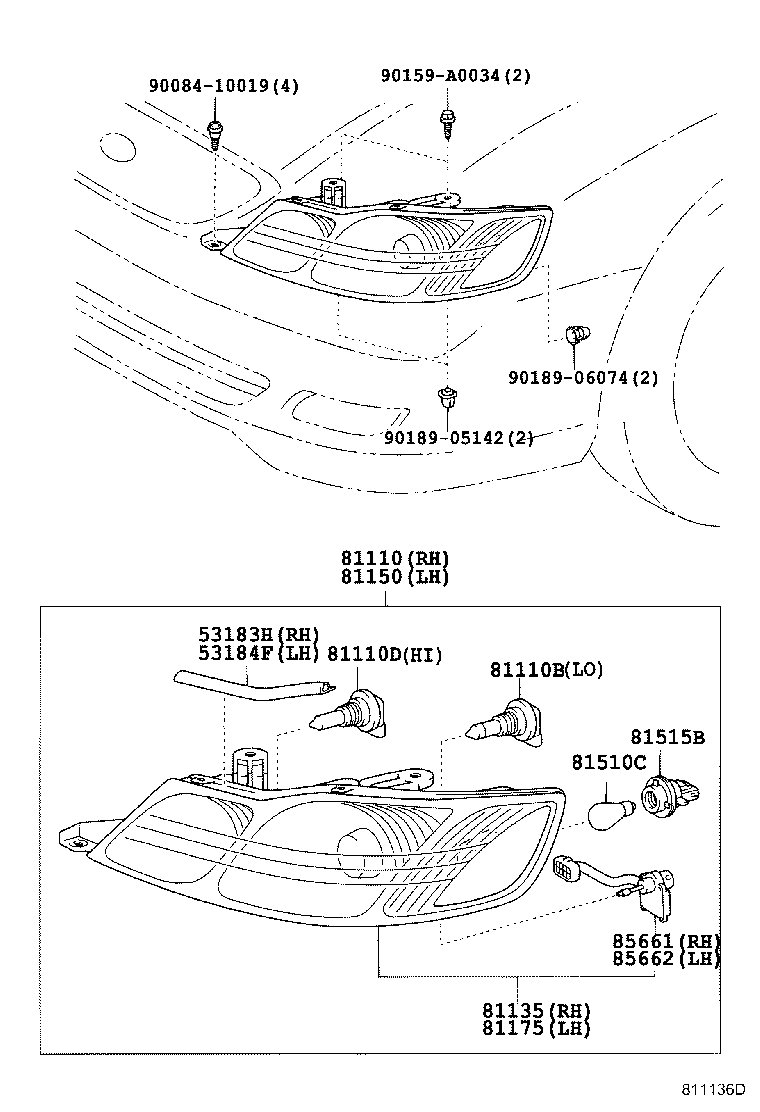

Click highlighted areas on diagram

diagram 53183H 53184F 81110 81110B 81110D 81135 81150 81175 81510C 81515B 85661 85662 9008410019 90159A0034 9018905142 9018906074
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-AC020

MCX20

 1
53183-AC020

MCX20

 1
53183-AC020

MCX20

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-AC020

MCX20

 1
53184-AC020

MCX20

 1
53184-AC020

MCX20

 1
81110 - HEADLAMP ASSY, RH
81110-07070

MCX20

 1
81110-AC040

MCX20

 1
81110-AC040

MCX20

 1
81110-AC040

MCX20

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81040

MCX20

12V 51W

 2
90981-13047

MCX20

12V 51W,HALOGEN

 2
90080-81040

MCX20

12V 51W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

MCX20

12V 65W

 2
90080-81041

MCX20

12V 65W

 2
90080-81041

MCX20

12V 65W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-07070

MCX20

 1
81130-AC040

MCX20

 1
81130-AC040

MCX20

 1
81130-AC040

MCX20

 1
81150 - HEADLAMP ASSY, LH
81150-AC040

MCX20

 1
81150-AC040

MCX20

 1
81150-07070

MCX20

 1
81150-AC040

MCX20

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-AC040

MCX20

 1
81170-07070

MCX20

 1
81170-AC040

MCX20

 1
81170-AC040

MCX20

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90084-98048

MCX20

12V 27/8W

 2
90084-98048

MCX20

12V 27/8W

 2
90084-98048

MCX20

12V 27/8W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-99106

MCX20

 2
90075-99106

MCX20

 2
90075-99106

MCX20

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-41020

MCX20

 1
85662 - MOTOR, HEADLAMP LEVELING, LH
85661-41020

MCX20

 1
Common parts
90084-10019
90159-A0034
90189-05142
90189-06074
