MCX20L-AEPGKV (1999)
Toyota Avalon

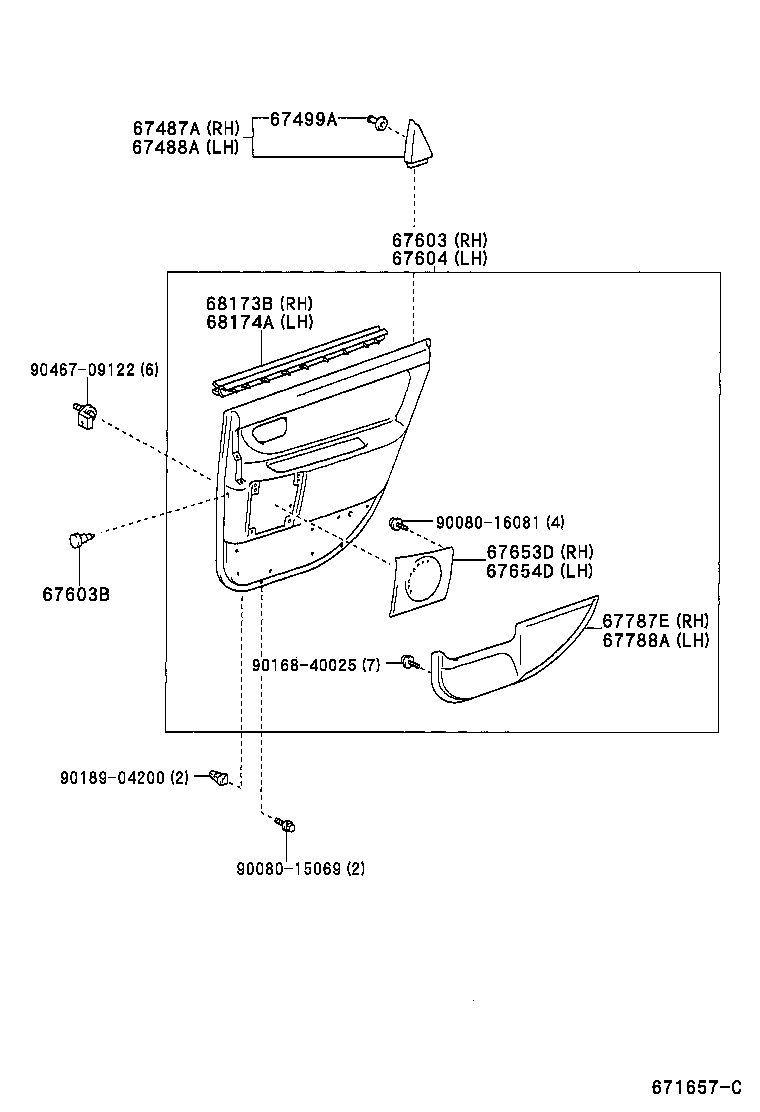

ILLUST NO. 1 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-AC011 |
MCX20 |
1 | ||
| 67487-AC010 |
MCX20 |
1 | ||
| 67487-AC011 |
MCX20 |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-AC011 |
MCX20 |
1 | ||
| 67488-AC010 |
MCX20 |
1 | ||
| 67488-AC011 |
MCX20 |
1 | ||
| 67499A - RETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-06010 |
MCX20 |
2 | ||
| 67499-06010 |
MCX20 |
2 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-AC090B0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67630-AC080A0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC070A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 67630-AC110A0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC070B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67630-AC070E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67630-AC080E0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC080B0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67630-AC100B0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67630-AC090E0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC100E0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC120A0 |
MCX20..XL DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC110B0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67630-AC100A0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC120B0 |
MCX20..XL DOOR TRIM=TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67630-AC090A0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC110B1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67630-AC120E0 |
MCX20..XL DOOR TRIM=TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC110E0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC100B1 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67630-AC110E1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC110A1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC120B0 |
MCX20..XL DOOR TRIM=TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67630-AC120E0 |
MCX20..XL DOOR TRIM=TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC100A2 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67630-AC100E1 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67630-AC120A0 |
MCX20..XL DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E8 |
MCX20 FAWN,TRIM4# |
4 | ||
| 90467-07066E8 |
MCX20 FAWN,TRIM4# |
4 | ||
| 90467-07066P4 |
MCX20 STONE,TRIM1# |
4 | ||
| 90467-07066A0 |
MCX20 IVORY,TRIM0# |
4 | ||
| 90467-07066A0 |
MCX20 IVORY,TRIM0# |
4 | ||
| 90467-07066P4 |
MCX20 STONE,TRIM1# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-AC080A0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC070A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 67640-AC090B0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67640-AC070E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67640-AC120A0 |
MCX20..XL DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC100E0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC080B0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67640-AC070B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67640-AC100B0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67640-AC110A0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC090E0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC090A0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC080E0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC100A0 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC120E0 |
MCX20..XL DOOR TRIM=TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC110E0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC120A0 |
MCX20..XL DOOR TRIM=TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC110B0 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67640-AC110A1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC120B0 |
MCX20..XL DOOR TRIM=TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67640-AC100E1 |
MCX20..XLS DOOR TRIM=TYPE B-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC120B0 |
MCX20..XL DOOR TRIM=TYPE C-*104,STONE,TRIM1# |
1 | ||
| 67640-AC100A2 |
MCX20..XLS DOOR TRIM=TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 67640-AC110B1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,STONE,TRIM1# |
1 | ||
| 67640-AC120E0 |
MCX20..XL DOOR TRIM=TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC110E1 |
MCX20..XLS DOOR TRIM=TYPE A-*104,FAWN,TRIM4# |
1 | ||
| 67640-AC100B1 |
MCX20..XLS DOOR TRIM=TYPE B-*104,STONE,TRIM1# |
1 | ||
| 67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH | ||||
| 67653-AC030E0 |
MCX20 FAWN,TRIM4# |
1 | ||
| 67653-AC030B0 |
MCX20 STONE,TRIM1# |
1 | ||
| 67653-AC030E0 |
MCX20 FAWN,TRIM4# |
1 | ||
| 67653-AC030A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 67653-AC030A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 67653-AC030B0 |
MCX20 STONE,TRIM1# |
1 | ||
| 67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH | ||||
| 67654-AC030A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 67654-AC030B0 |
MCX20 STONE,TRIM1# |
1 | ||
| 67654-AC030A0 |
MCX20 IVORY,TRIM0# |
1 | ||
| 67654-AC030B0 |
MCX20 STONE,TRIM1# |
1 | ||
| 67654-AC030E0 |
MCX20 FAWN,TRIM4# |
1 | ||
| 67654-AC030E0 |
MCX20 FAWN,TRIM4# |
1 | ||
| 67787E - POCKET, REAR DOOR TRIM, RH | ||||
| 67787-AC010B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67787-AC020A0 |
MCX20..XLS IVORY,TRIM0# |
1 | ||
| 67787-AC010A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 67787-AC010E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67787-AC010E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67787-AC010A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 67787-AC020E0 |
MCX20..XLS FAWN,TRIM4# |
1 | ||
| 67787-AC020A0 |
MCX20..XLS IVORY,TRIM0# |
1 | ||
| 67787-AC020B0 |
MCX20..XLS STONE,TRIM1# |
1 | ||
| 67787-AC020B0 |
MCX20..XLS STONE,TRIM1# |
1 | ||
| 67787-AC010B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67787-AC020E0 |
MCX20..XLS FAWN,TRIM4# |
1 | ||
| 67788A - POCKET, REAR DOOR TRIM, LH | ||||
| 67788-AC010B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67788-AC010A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 67788-AC010E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67788-AC010B0 |
MCX20..XL STONE,TRIM1# |
1 | ||
| 67788-AC020E0 |
MCX20..XLS FAWN,TRIM4# |
1 | ||
| 67788-AC020A0 |
MCX20..XLS IVORY,TRIM0# |
1 | ||
| 67788-AC010E0 |
MCX20..XL FAWN,TRIM4# |
1 | ||
| 67788-AC020B0 |
MCX20..XLS STONE,TRIM1# |
1 | ||
| 67788-AC020E0 |
MCX20..XLS FAWN,TRIM4# |
1 | ||
| 67788-AC020A0 |
MCX20..XLS IVORY,TRIM0# |
1 | ||
| 67788-AC020B0 |
MCX20..XLS STONE,TRIM1# |
1 | ||
| 67788-AC010A0 |
MCX20..XL IVORY,TRIM0# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-AC010 |
MCX20 |
1 | ||
| 68173-AC010 |
MCX20 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68173-AC010 |
MCX20 |
1 | ||
| 68173-AC010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-15069 | ||||
| 90080-16081 | ||||
| 90168-40025 | ||||
| 90189-04200 | ||||
| 90467-09122 | ||||

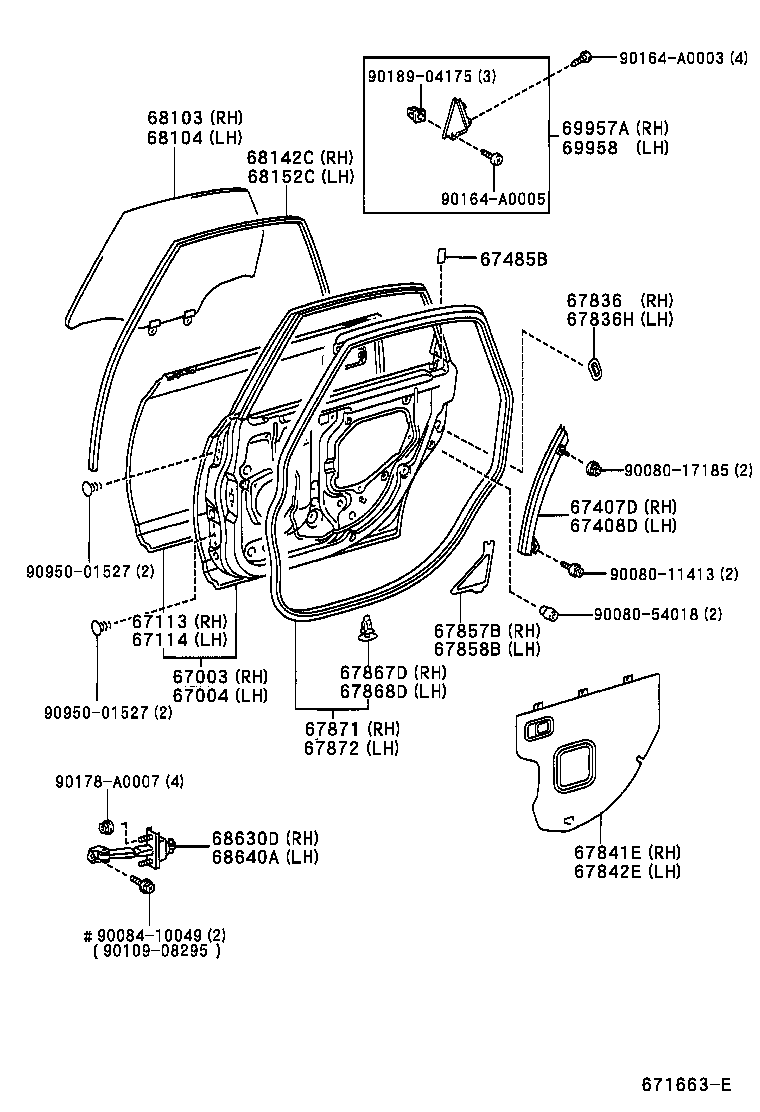

ILLUST NO. 2 OF 2(9908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-AC020 |
MCX20 |
1 | ||
| 67003-AC020 |
MCX20 |
1 | ||
| 67003-AC021 |
MCX20 |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-AC021 |
MCX20 |
1 | ||
| 67004-AC020 |
MCX20 |
1 | ||
| 67004-AC020 |
MCX20 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-AC010 |
MCX20 |
1 | ||
| 67113-AC010 |
MCX20 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-AC010 |
MCX20 |
1 | ||
| 67114-AC010 |
MCX20 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-AC020 |
MCX20 |
1 | ||
| 67407-AC020 |
MCX20 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-AC020 |
MCX20 |
1 | ||
| 67408-AC020 |
MCX20 |
1 | ||
| 67485B - SEAL, REAR DOOR DIVISION BAR, INSIDE, RH | ||||
| 67485-AC010 |
MCX20 |
2 | ||
| 67485-AC010 |
MCX20 |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
MCX20 |
1 | ||
| 67836-12040 |
MCX20 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
MCX20 |
1 | ||
| 67836-12040 |
MCX20 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-AC010 |
MCX20 |
1 | ||
| 67841-AC010 |
MCX20 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-AC010 |
MCX20 |
1 | ||
| 67842-AC010 |
MCX20 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-AC010 |
MCX20 |
1 | ||
| 67857-AC010 |
MCX20 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-AC010 |
MCX20 |
1 | ||
| 67858-AC010 |
MCX20 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
MCX20 |
16 | ||
| 67868-12050 |
MCX20 |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
MCX20 |
16 | ||
| 67868-12050 |
MCX20 |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-AC020 |
MCX20 |
1 | ||
| 67871-AC020 |
MCX20 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-AC020 |
MCX20 |
1 | ||
| 67872-AC020 |
MCX20 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-AC040 |
MCX20 *UVCT,T=4.0,GREEN |
1 | ||
| 68103-AC040 |
MCX20 *UVCT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-AC040 |
MCX20 *UVCT,T=4.0,GREEN |
1 | ||
| 68104-AC040 |
MCX20 *UVCT,T=4.0,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-AC020 |
MCX20 |
1 | ||
| 68142-AC020 |
MCX20 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-AC020 |
MCX20 |
1 | ||
| 68152-AC020 |
MCX20 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-AC011 |
MCX20 |
1 | ||
| 68630-AC011 |
MCX20 |
1 | ||
| 68630-AC010 |
MCX20 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-AC011 |
MCX20 |
1 | ||
| 68640-AC010 |
MCX20 |
1 | ||
| 68640-AC011 |
MCX20 |
1 | ||
| 69957A - PLATE, REAR DOOR GLASS GUIDE PIECE, RH | ||||
| 69957-AC010 |
MCX20 |
1 | ||
| 69957-AC010 |
MCX20 |
1 | ||
| 69958 - PLATE, REAR DOOR GLASS GUIDE PIECE, LH | ||||
| 69958-AC010 |
MCX20 |
1 | ||
| 69958-AC010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11413 | ||||
| 90080-17185 | ||||
| 90080-54018 | ||||
| 90084-10049 | ||||
| 90109-08295 | ||||
| 90164-A0003 | ||||
| 90164-A0005 | ||||
| 90178-A0007 | ||||
| 90189-04175 | ||||
| 90950-01527 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
