MCX20L-AEPGKV (1999)

Toyota Avalon

Production Aug 1999 - Jan 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

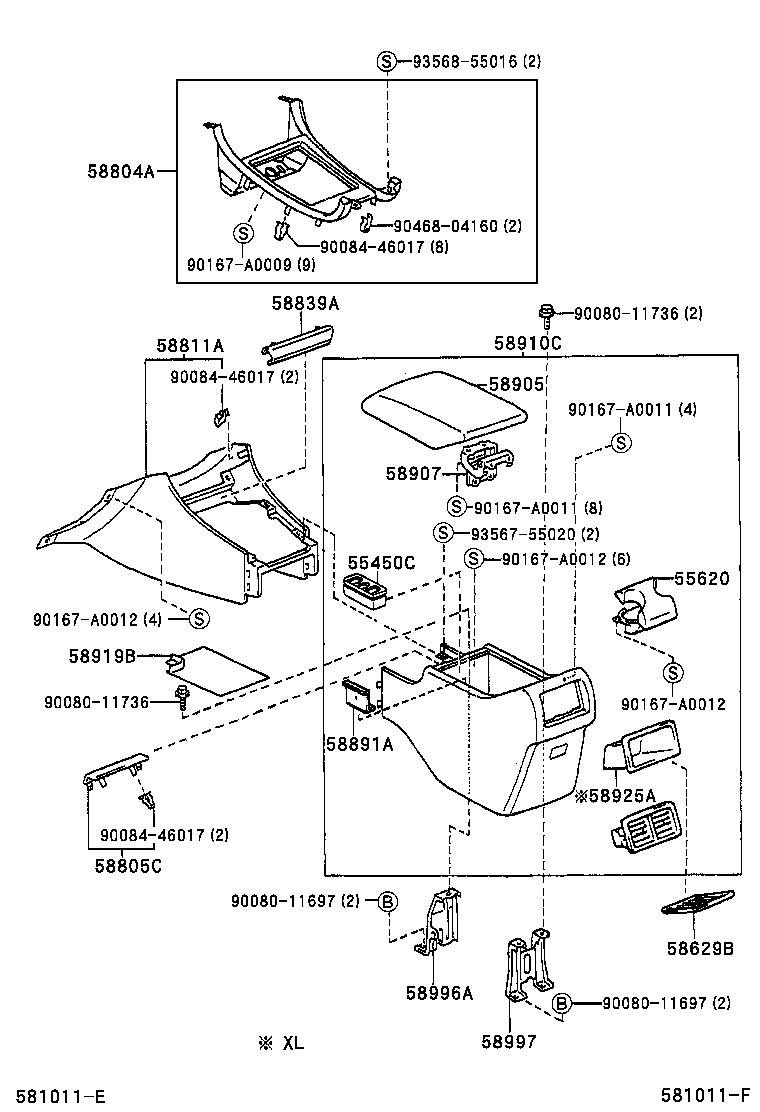

Click highlighted areas on diagram

diagram 55450C 55620 58629B 58804A 58805C 58811A 58839A 58891A 58905 58907 58910C 58919B 58925A 58996A 58997 9008011697 9008011697 9008011736 9008011736 9008446017 9008446017 9008446017 90167A0009 90167A0011 90167A0011 90167A0012 90167A0012 90167A0012 9046804160 9356755020 9356855016
Part # Description Qty Price
55450C - BOX ASSY, COIN
55450-0C010

MCX20

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-AC020

MCX20

 1
55620-AC020

MCX20

 1
58629B - MAT, CENTER CONSOLE
58629-AC010B0

MCX20..XL

DK.STONE,TRIM1#

 1
58629-AC010E0

MCX20..XL

SANDAL WOOD,TRIM0#,4#

 1
58629-AC010B0

MCX20..XL

DK.STONE,TRIM1#

 1
58629-AC010E0

MCX20..XL

SANDAL WOOD,TRIM0#,4#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-AC040E0

MCX20..XL

SANDAL WOOD,TRIM0#,4#

 1
58804-AC040B0

MCX20..XL

DK.STONE,TRIM1#

 1
58804-AC050B0

MCX20..XLS

DK.STONE,TRIM1#

 1
58804-AC050B0

MCX20..XLS

DK.STONE,TRIM1#

 1
58804-AC050E0

MCX20..XLS

SANDAL WOOD,TRIM0#,4#

 1
58804-AC040B0

MCX20..XL

DK.STONE,TRIM1#

 1
58804-AC040E0

MCX20..XL

SANDAL WOOD,TRIM0#,4#

 1
58804-AC050E0

MCX20..XLS

SANDAL WOOD,TRIM0#,4#

 1
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-AC010

MCX20

 1
58805-AC010

MCX20

 1
58811A - BOX, CONSOLE, FRONT
58810-AC030E0

MCX20

FAWN,TRIM4#

 1
58810-AC030A0

MCX20

IVORY,TRIM0#

 1
58810-AC030B0

MCX20

STONE,TRIM1#

 1
58810-AC030A0

MCX20

IVORY,TRIM0#

 1
58810-AC030E0

MCX20

FAWN,TRIM4#

 1
58810-AC030B0

MCX20

STONE,TRIM1#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-AC010

MCX20

 1
58839-AC010

MCX20

 1
58891A - PANEL, EQUIPMENT SET, NO.1
58891-AC010

MCX20

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-AC060A1

MCX20

IVORY,TRIM0#

 1
58905-AC060B1

MCX20

STONE,TRIM1#

 1
58905-AC060A1

MCX20

IVORY,TRIM0#

 1
58905-AC060E1

MCX20

FAWN,TRIM4#

 1
58905-AC060E1

MCX20

FAWN,TRIM4#

 1
58905-AC060B1

MCX20

STONE,TRIM1#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-AC020

MCX20

 1
58907-AC020

MCX20

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-AC070A0

MCX20..XLS

IVORY,TRIM0#

 1
58910-AC070E0

MCX20..XLS

FAWN,TRIM4#

 1
58910-AC060B0

MCX20..XL

STONE,TRIM1#

 1
58910-AC061E0

MCX20..XL

FAWN,TRIM4#

 1
58910-AC071A0

MCX20..XLS

IVORY,TRIM0#

 1
58910-AC070B0

MCX20..XLS

STONE,TRIM1#

 1
58910-AC061B0

MCX20..XL

STONE,TRIM1#

 1
58910-AC071E0

MCX20..XLS

FAWN,TRIM4#

 1
58910-AC071B0

MCX20..XLS

STONE,TRIM1#

 1
58910-AC061A0

MCX20..XL

IVORY,TRIM0#

 1
58910-AC071E0

MCX20..XLS

FAWN,TRIM4#

 1
58910-AC060A0

MCX20..XL

IVORY,TRIM0#

 1
58910-AC061B0

MCX20..XL

STONE,TRIM1#

 1
58910-AC061E0

MCX20..XL

FAWN,TRIM4#

 1
58910-AC061A0

MCX20..XL

IVORY,TRIM0#

 1
58910-AC071A0

MCX20..XLS

IVORY,TRIM0#

 1
58910-AC071B0

MCX20..XLS

STONE,TRIM1#

 1
58910-AC060E0

MCX20..XL

FAWN,TRIM4#

 1
58919B - PLATE, CONSOLE BOX
58919-AC010

MCX20

 1
58919-AC010

MCX20

 1
58925A - POCKET, CONSOLE BOX, REAR
58925-AC010A0

MCX20..XL

IVORY,TRIM0#

 1
58925-AC010B0

MCX20..XL

STONE,TRIM1#

 1
58925-AC010B0

MCX20..XL

STONE,TRIM1#

 1
58925-AC010E0

MCX20..XL

FAWN,TRIM4#

 1
58925-AC010E0

MCX20..XL

FAWN,TRIM4#

 1
58925-AC010A0

MCX20..XL

IVORY,TRIM0#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58087-AC010

MCX20

 1
58087-AC010

MCX20

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58088-AC010

MCX20

 1
58088-AC010

MCX20

 1
Common parts
90080-11697
90080-11736
90084-46017
90167-A0009
90167-A0011
90167-A0012
90468-04160
93567-55020
93568-55016
