MCX20L-AEPGKV (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

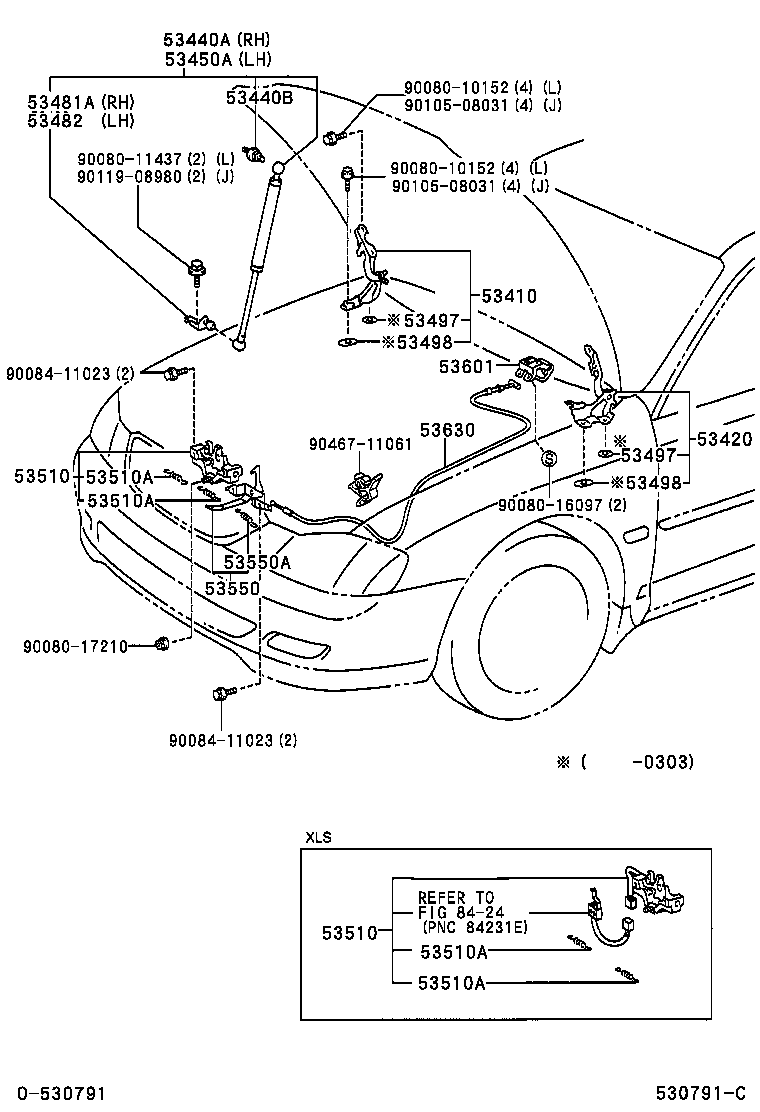

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-AC020 |
MCX20 |
1 | ||
| 53410-AC020 |
MCX20 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-AC020 |
MCX20 |
1 | ||
| 53420-AC020 |
MCX20 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-A9040 |
MCX20 |
1 | ||
| 53440-A9020 |
MCX20 |
1 | ||
| 53440-A9020 |
MCX20 |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-23010 |
MCX20 |
2 | ||
| 68961-23010 |
MCX20 |
2 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-A9020 |
MCX20 |
1 | ||
| 53450-A9020 |
MCX20 |
1 | ||
| 53450-A9040 |
MCX20 |
1 | ||
| 53481A - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-AA010 |
MCX20 |
1 | ||
| 53481-AA010 |
MCX20 |
1 | ||
| 53482 - BRACKET, HOOD SUPPORT, LH | ||||
| 53481-AA010 |
MCX20 |
1 | ||
| 53481-AA010 |
MCX20 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-02010 |
MCX20 |
2 | ||
| 53497-02010 |
MCX20 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-02010 |
MCX20 |
2 | ||
| 53497-02010 |
MCX20 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-02010 |
MCX20 |
2 | ||
| 53498-02010 |
MCX20 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-02010 |
MCX20 |
2 | ||
| 53498-02010 |
MCX20 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-AC010 |
MCX20 |
1 | ||
| 53510-AC010 |
MCX20 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-AC010 |
MCX20 |
1 | ||
| 53510-AC010 |
MCX20 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50003 |
MCX20 WD=2.3,CW=10 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 90084-50002 |
MCX20 WD=1.8,CW=5 |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-AC020 |
MCX20 |
1 | ||
| 53550-AC020 |
MCX20 |
1 | ||
| 53550A - SPRING, TORSION(FOR HOOD LOCK HOOK) | ||||
| 90084-50022 |
MCX20 |
1 | ||
| 90084-50022 |
MCX20 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-AA010C0 |
MCX20 BLACK,TRIM0#,1#,4# |
1 | ||
| 53601-AA010C0 |
MCX20 BLACK,TRIM0#,1#,4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-AC030 |
MCX20 |
1 | ||
| 53630-AC030 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-10152 | ||||
| 90080-11437 | ||||
| 90080-16097 | ||||
| 90080-17210 | ||||
| 90084-11023 | ||||
| 90105-08031 | ||||
| 90119-08980 | ||||
| 90467-11061 | ||||
| Linked diagrams | ||||
| 8424 | ||||
