MCX20L-AEPGKV (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

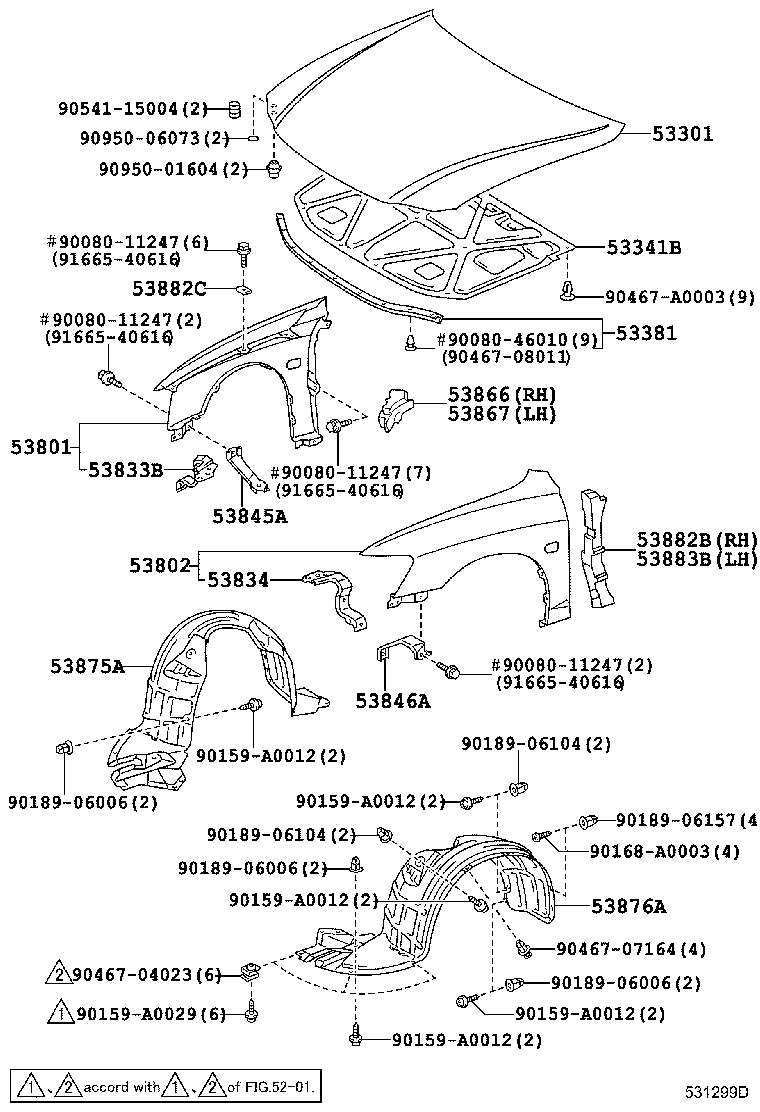

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-AC020 |
MCX20 |
1 | ||
| 53301-AC020 |
MCX20 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-AC020 |
MCX20 |
1 | ||
| 53341-AC020 |
MCX20 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-AC020 |
MCX20 |
1 | ||
| 53381-AC020 |
MCX20 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-AC020 |
MCX20 |
1 | ||
| 53801-AC020 |
MCX20 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-AC020 |
MCX20 |
1 | ||
| 53802-AC020 |
MCX20 |
1 | ||
| 53833B - PANEL, FRONT FENDER SIDE, RH | ||||
| 53083-AC010 |
MCX20 |
1 | ||
| 53083-AC010 |
MCX20 |
1 | ||
| 53834 - PANEL, FRONT FENDER SIDE, LOWER LH | ||||
| 53084-AC010 |
MCX20 |
1 | ||
| 53084-AC010 |
MCX20 |
1 | ||
| 53845A - BRACE, FRONT WHEEL OPENING APRON, RH | ||||
| 53845-AC010 |
MCX20 |
1 | ||
| 53845-AC010 |
MCX20 |
1 | ||
| 53846A - BRACE, FRONT WHEEL OPENING APRON, LH | ||||
| 53846-AC010 |
MCX20 |
1 | ||
| 53846-AC010 |
MCX20 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-AC010 |
MCX20 |
1 | ||
| 53866-AC010 |
MCX20 |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-AC010 |
MCX20 |
1 | ||
| 53867-AC010 |
MCX20 |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-AC020 |
MCX20 |
1 | ||
| 53875-AC020 |
MCX20 |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-AC020 |
MCX20 |
1 | ||
| 53876-AC020 |
MCX20 |
1 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-AC010 |
MCX20 |
1 | ||
| 53882-AC010 |
MCX20 |
1 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
MCX20 |
6 | ||
| 53882-16030 |
MCX20 |
6 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-AC010 |
MCX20 |
1 | ||
| 53883-AC010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-11247 | ||||
| 90080-46010 | ||||
| 90159-A0012 | ||||
| 90159-A0029 | ||||
| 90168-A0003 | ||||
| 90189-06006 | ||||
| 90189-06104 | ||||
| 90189-06157 | ||||
| 90467-04023 | ||||
| 90467-07164 | ||||
| 90467-08011 | ||||
| 90467-A0003 | ||||
| 90541-15004 | ||||
| 90950-01604 | ||||
| 90950-06073 | ||||
| 91665-40616 | ||||
