MCX20L-AEPGKV (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

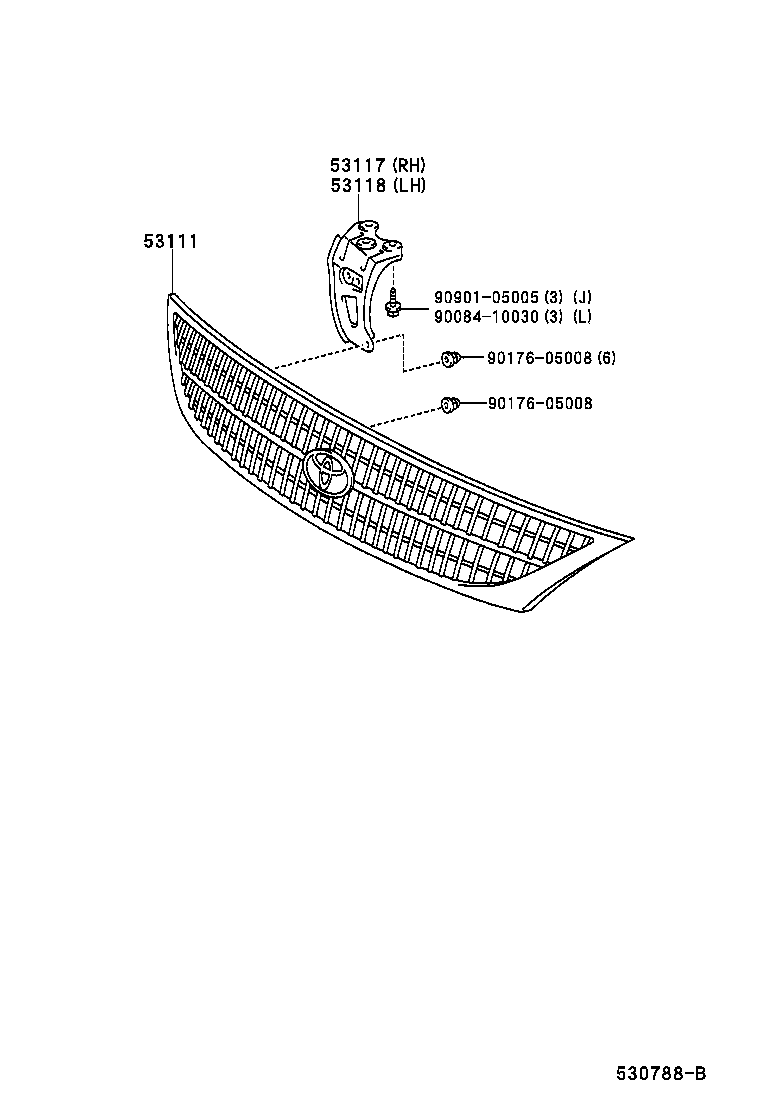

(9908-0206)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53100-AC040 |
MCX20 |
1 | ||
| 53100-AC060 |
MCX20 |
1 | ||
| 53117 - BRACKET, RADIATOR GRILLE SUPPORT, RH | ||||
| 53117-AC010 |
MCX20 |
1 | ||
| 53117-AC010 |
MCX20 |
1 | ||
| 53118 - BRACKET, RADIATOR GRILLE SUPPORT, LH | ||||
| 53118-AC010 |
MCX20 |
1 | ||
| 53118-AC010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90084-10030 | ||||
| 90176-05008 | ||||
| 90901-05005 | ||||

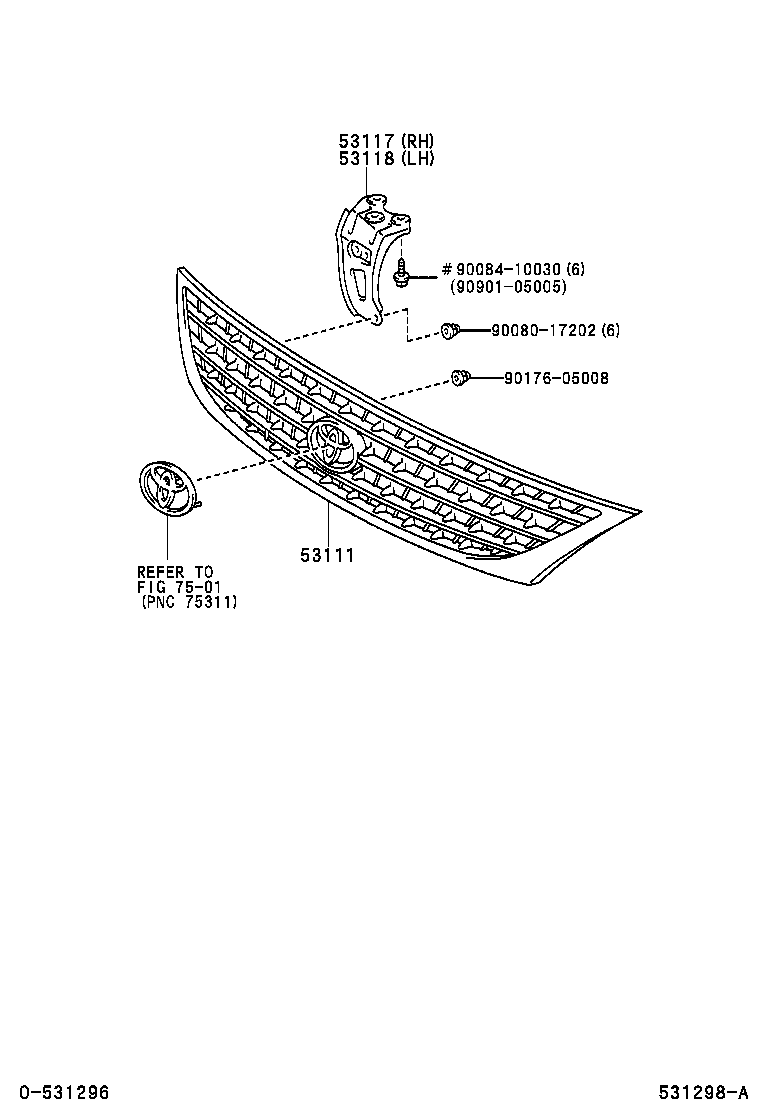

(0206- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53100-AC040 |
MCX20 |
1 | ||
| 53100-AC060 |
MCX20 |
1 | ||
| 53117 - BRACKET, RADIATOR GRILLE SUPPORT, RH | ||||
| 53117-AC010 |
MCX20 |
1 | ||
| 53117-AC010 |
MCX20 |
1 | ||
| 53118 - BRACKET, RADIATOR GRILLE SUPPORT, LH | ||||
| 53118-AC010 |
MCX20 |
1 | ||
| 53118-AC010 |
MCX20 |
1 | ||
| Common parts | ||||
| 90080-17202 | ||||
| 90084-10030 | ||||
| 90176-05008 | ||||
| 90901-05005 | ||||
| Linked diagrams | ||||
| 7501 | ||||
