MCX20L-AEPGKV (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

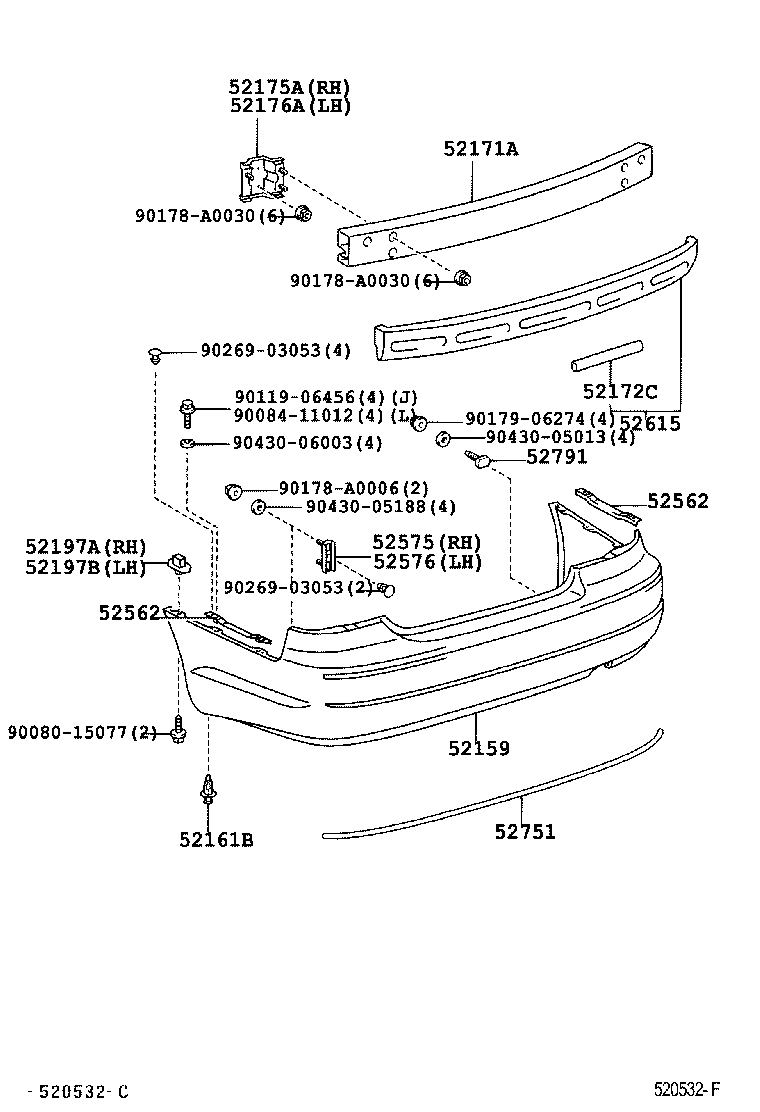

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-AC903 |
MCX20 |
1 | ||
| 52159-AC903 |
MCX20 |
1 | ||
| 52159-AC903 |
MCX20 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
MCX20 |
4 | ||
| 52161-02020 |
MCX20 |
4 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-AC040 |
MCX20 |
1 | ||
| 52171-AC040 |
MCX20 |
1 | ||
| 52172C - REINFORCEMENT, REAR BUMPER BAR, CENTER | ||||
| 52172-AA010 |
MCX20 |
1 | ||
| 52172-AA010 |
MCX20 |
1 | ||
| 52175A - BRACKET, REAR BUMPER ARM MOUNTING, RH | ||||
| 52175-AC010 |
MCX20 |
1 | ||
| 52175-AC010 |
MCX20 |
1 | ||
| 52176A - BRACKET, REAR BUMPER ARM MOUNTING, LH | ||||
| 52176-AC020 |
MCX20 |
1 | ||
| 52176-AC020 |
MCX20 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-16020 |
MCX20 |
1 | ||
| 52197-16020 |
MCX20 |
1 | ||
| 52197B - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-16020 |
MCX20 |
1 | ||
| 52197-16020 |
MCX20 |
1 | ||
| 52562 - RETAINER, REAR BUMPER, UPPER SIDE | ||||
| 52562-AC010 |
MCX20 |
2 | ||
| 52562-AC010 |
MCX20 |
2 | ||
| 52562 - RETAINER, REAR BUMPER, UPPER SIDE | ||||
| 52562-AC010 |
MCX20 |
2 | ||
| 52562-AC010 |
MCX20 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-AC020 |
MCX20 |
1 | ||
| 52575-AC020 |
MCX20 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-AC020 |
MCX20 |
1 | ||
| 52575-AC020 |
MCX20 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-AC030 |
MCX20 |
1 | ||
| 52615-AC030 |
MCX20 |
1 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-AC020 |
MCX20 |
1 | ||
| 52751-AC020 |
MCX20 |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
MCX20 |
4 | ||
| 52791-12040 |
MCX20 |
4 | ||
| 52791-33010 |
MCX20 |
4 | ||
| Common parts | ||||
| 90080-15077 | ||||
| 90084-11012 | ||||
| 90119-06456 | ||||
| 90178-A0006 | ||||
| 90178-A0030 | ||||
| 90179-06274 | ||||
| 90269-03053 | ||||
| 90430-05013 | ||||
| 90430-05188 | ||||
| 90430-06003 | ||||
