Toyota Avalon MCX20 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
AVALON
MCX20L-AEPGKV (1999)
5201 - FRONT BUMPER & BUMPER STAY

MCX20L-AEPGKV (1999)

Toyota Avalon

Production Aug 1999 - Jan 2005

Engine 1MZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9908-0206)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-AC030	MCX20	08/1999 - 06/2002	1
52029-AC030	MCX20	06/2002 - 01/2005	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-AC020	MCX20	08/1999 - 06/2002	1
52115-AC020	MCX20	06/2002 - 01/2005	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-AC010	MCX20	06/2002 - 01/2005	1
52116-AC010	MCX20	08/1999 - 06/2002	1
52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH
52117-AC010	MCX20	08/1999 - 06/2002	1
52117-AC010	MCX20	06/2002 - 01/2005	1
52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH
52118-AC010	MCX20	06/2002 - 01/2005	1
52118-AC010	MCX20	08/1999 - 06/2002	1
52119A - COVER, FRONT BUMPER
52119-07901	MCX20	06/2002 - 07/2002	1
52119-AC910	MCX20	08/1999 - 06/2002	1
52119-07902	MCX20	07/2002 - 01/2005	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-AC020C0	MCX20..XL BLACK,202	08/1999 - 06/2002	1
52127-AC020A0	MCX20..XL SU.WHITE PM,051	08/1999 - 06/2002	1
52127-AC020B0	MCX20..XL SLVER ME.,1C8	08/1999 - 06/2002	1
52127-AC020E0	MCX20..XL BEIGE M.M.,4Q2	08/1999 - 06/2002	1
52127-07010A0	MCX20..XL SU. WHITE PM.,051	06/2002 - 01/2005	1
52127-07010G0	MCX20..XL DK. GREEN MC.,6S7	06/2002 - 01/2005	1
52127-07010B0	MCX20..XL SILVER ME.,1C8	06/2002 - 01/2005	1
52127-07010C0	MCX20..XL BLACK,202	06/2002 - 01/2005	1
52127-07010E0	MCX20..XL BEIGE M. M.,4Q2	06/2002 - 01/2005	1
52127-07010D0	MCX20..XL DK RED MC,3Q7	06/2002 - 01/2005	1
52127-AC020G1	MCX20..XL GREEN MC.,6R1	08/1999 - 06/2002	1
52127-07010G1	MCX20..XL GR.GREEN ME.,6M3	06/2002 - 01/2005	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-AC020G1	MCX20..XL GREEN MC.,6R1	08/1999 - 06/2002	1
52128-07010G1	MCX20..XL GR.GREEN ME.,6M3	06/2002 - 01/2005	1
52128-AC020A0	MCX20..XL SU.WHITE PM,051	08/1999 - 06/2002	1
52128-07010G0	MCX20..XL DK. GREEN MC.,6S7	06/2002 - 01/2005	1
52128-07010A0	MCX20..XL SU. WHITE PM.,051	06/2002 - 01/2005	1
52128-07010C0	MCX20..XL BLACK,202	06/2002 - 01/2005	1
52128-AC020C0	MCX20..XL BLACK,202	08/1999 - 06/2002	1
52128-07010D0	MCX20..XL DK RED MC,3Q7	06/2002 - 01/2005	1
52128-AC020B0	MCX20..XL SLVER ME.,1C8	08/1999 - 06/2002	1
52128-AC020E0	MCX20..XL BEIGE M.M.,4Q2	08/1999 - 06/2002	1
52128-07010B0	MCX20..XL SILVER ME.,1C8	06/2002 - 01/2005	1
52128-07010E0	MCX20..XL BEIGE M. M.,4Q2	06/2002 - 01/2005	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-AC060	MCX20	08/1999 - 06/2002	1
52131-AC060	MCX20	06/2002 - 01/2005	1
52161C - PIECE, FRONT BUMPER
52161-02020	MCX20	06/2002 - 01/2005	6
52161-02020	MCX20	08/1999 - 06/2002	6
52161C - PIECE, FRONT BUMPER
52161-02020	MCX20	06/2002 - 01/2005	6
52161-02020	MCX20	08/1999 - 06/2002	6
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-AC030	MCX20	08/1999 - 06/2002	1
52611-07010	MCX20	06/2002 - 01/2005	1
52711 - MOULDING, FRONT BUMPER
52711-AC040	MCX20	08/1999 - 06/2002	1
52711-07010	MCX20	06/2002 - 01/2005	1
75111A - BRACKET, FRONT LICENSE PLATE
75101-AC040	MCX20	06/2002 - 01/2005	1
75101-AC030	MCX20	08/1999 - 06/2002	1
Common parts
90080-10079
90084-10024
90084-15002
90084-46020
90105-06082
90105-10197
90159-60249
90179-06070
90241-06020
90467-05081
Linked diagrams
5302
8102

(0206- )

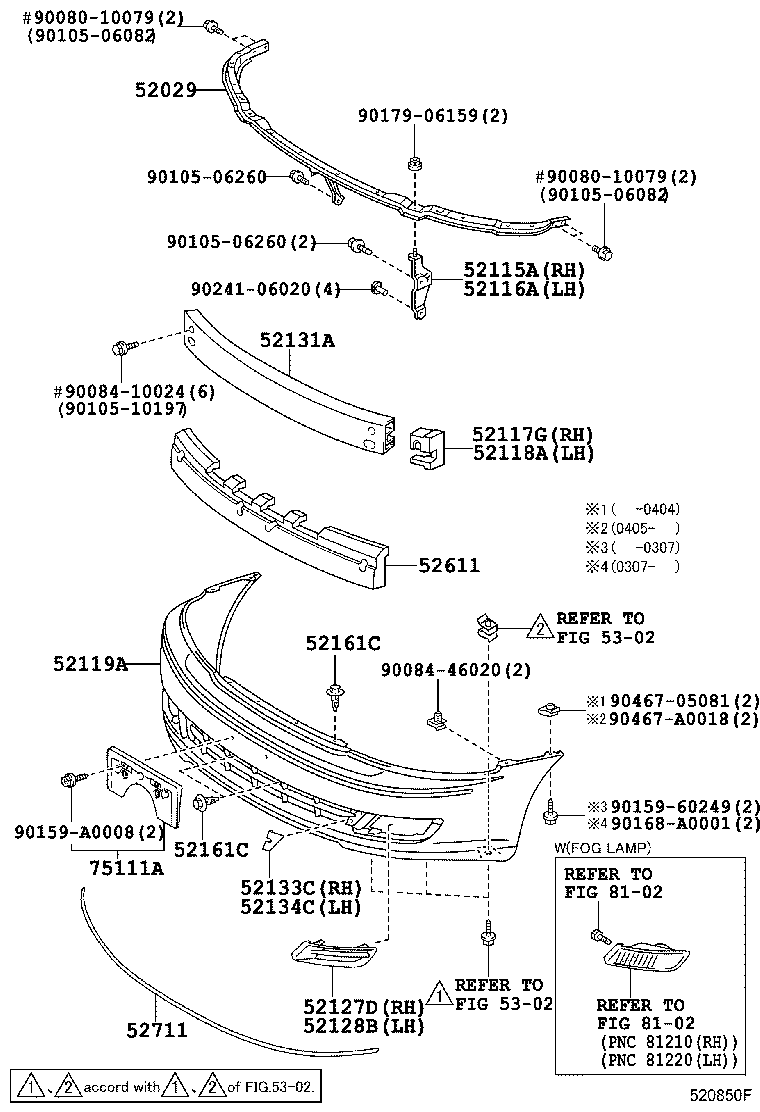

Click highlighted areas on diagram

Part #	Description	Period	Qty
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-AC030	MCX20	08/1999 - 06/2002	1
52029-AC030	MCX20	06/2002 - 01/2005	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-AC020	MCX20	08/1999 - 06/2002	1
52115-AC020	MCX20	06/2002 - 01/2005	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-AC010	MCX20	06/2002 - 01/2005	1
52116-AC010	MCX20	08/1999 - 06/2002	1
52117G - INSERT, FRONT BUMPER EXTENSION, NO.2 RH
52117-AC010	MCX20	08/1999 - 06/2002	1
52117-AC010	MCX20	06/2002 - 01/2005	1
52118A - INSERT, FRONT BUMPER EXTENSION, NO.2 LH
52118-AC010	MCX20	06/2002 - 01/2005	1
52118-AC010	MCX20	08/1999 - 06/2002	1
52119A - COVER, FRONT BUMPER
52119-07901	MCX20	06/2002 - 07/2002	1
52119-AC910	MCX20	08/1999 - 06/2002	1
52119-07902	MCX20	07/2002 - 01/2005	1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-AC020C0	MCX20..XL BLACK,202	08/1999 - 06/2002	1
52127-AC020A0	MCX20..XL SU.WHITE PM,051	08/1999 - 06/2002	1
52127-AC020B0	MCX20..XL SLVER ME.,1C8	08/1999 - 06/2002	1
52127-AC020E0	MCX20..XL BEIGE M.M.,4Q2	08/1999 - 06/2002	1
52127-07010A0	MCX20..XL SU. WHITE PM.,051	06/2002 - 01/2005	1
52127-07010G0	MCX20..XL DK. GREEN MC.,6S7	06/2002 - 01/2005	1
52127-07010B0	MCX20..XL SILVER ME.,1C8	06/2002 - 01/2005	1
52127-07010C0	MCX20..XL BLACK,202	06/2002 - 01/2005	1
52127-07010E0	MCX20..XL BEIGE M. M.,4Q2	06/2002 - 01/2005	1
52127-07010D0	MCX20..XL DK RED MC,3Q7	06/2002 - 01/2005	1
52127-AC020G1	MCX20..XL GREEN MC.,6R1	08/1999 - 06/2002	1
52127-07010G1	MCX20..XL GR.GREEN ME.,6M3	06/2002 - 01/2005	1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-AC020G1	MCX20..XL GREEN MC.,6R1	08/1999 - 06/2002	1
52128-07010G1	MCX20..XL GR.GREEN ME.,6M3	06/2002 - 01/2005	1
52128-AC020A0	MCX20..XL SU.WHITE PM,051	08/1999 - 06/2002	1
52128-07010G0	MCX20..XL DK. GREEN MC.,6S7	06/2002 - 01/2005	1
52128-07010A0	MCX20..XL SU. WHITE PM.,051	06/2002 - 01/2005	1
52128-07010C0	MCX20..XL BLACK,202	06/2002 - 01/2005	1
52128-AC020C0	MCX20..XL BLACK,202	08/1999 - 06/2002	1
52128-07010D0	MCX20..XL DK RED MC,3Q7	06/2002 - 01/2005	1
52128-AC020B0	MCX20..XL SLVER ME.,1C8	08/1999 - 06/2002	1
52128-AC020E0	MCX20..XL BEIGE M.M.,4Q2	08/1999 - 06/2002	1
52128-07010B0	MCX20..XL SILVER ME.,1C8	06/2002 - 01/2005	1
52128-07010E0	MCX20..XL BEIGE M. M.,4Q2	06/2002 - 01/2005	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-AC060	MCX20	08/1999 - 06/2002	1
52131-AC060	MCX20	06/2002 - 01/2005	1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-07010	MCX20	06/2002 - 01/2005	1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-07010	MCX20	06/2002 - 01/2005	1
52161C - PIECE, FRONT BUMPER
52161-02020	MCX20	06/2002 - 01/2005	6
52161-02020	MCX20	08/1999 - 06/2002	6
52161C - PIECE, FRONT BUMPER
52161-02020	MCX20	06/2002 - 01/2005	6
52161-02020	MCX20	08/1999 - 06/2002	6
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-AC030	MCX20	08/1999 - 06/2002	1
52611-07010	MCX20	06/2002 - 01/2005	1
52711 - MOULDING, FRONT BUMPER
52711-AC040	MCX20	08/1999 - 06/2002	1
52711-07010	MCX20	06/2002 - 01/2005	1
75111A - BRACKET, FRONT LICENSE PLATE
75101-AC040	MCX20	06/2002 - 01/2005	1
75101-AC030	MCX20	08/1999 - 06/2002	1
Common parts
90080-10079
90084-10024
90084-46020
90105-06082
90105-06260
90105-10197
90159-60249
90159-A0008
90168-A0001
90179-06159
90241-06020
90467-05081
90467-A0018
Linked diagrams
5302
8102

MCX20L-AEPGKV (1999)

(9908-0206)

(0206- )
