MCX20L-AEPGKV (1999)
Toyota Avalon
Production
Aug 1999
-
Jan 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )

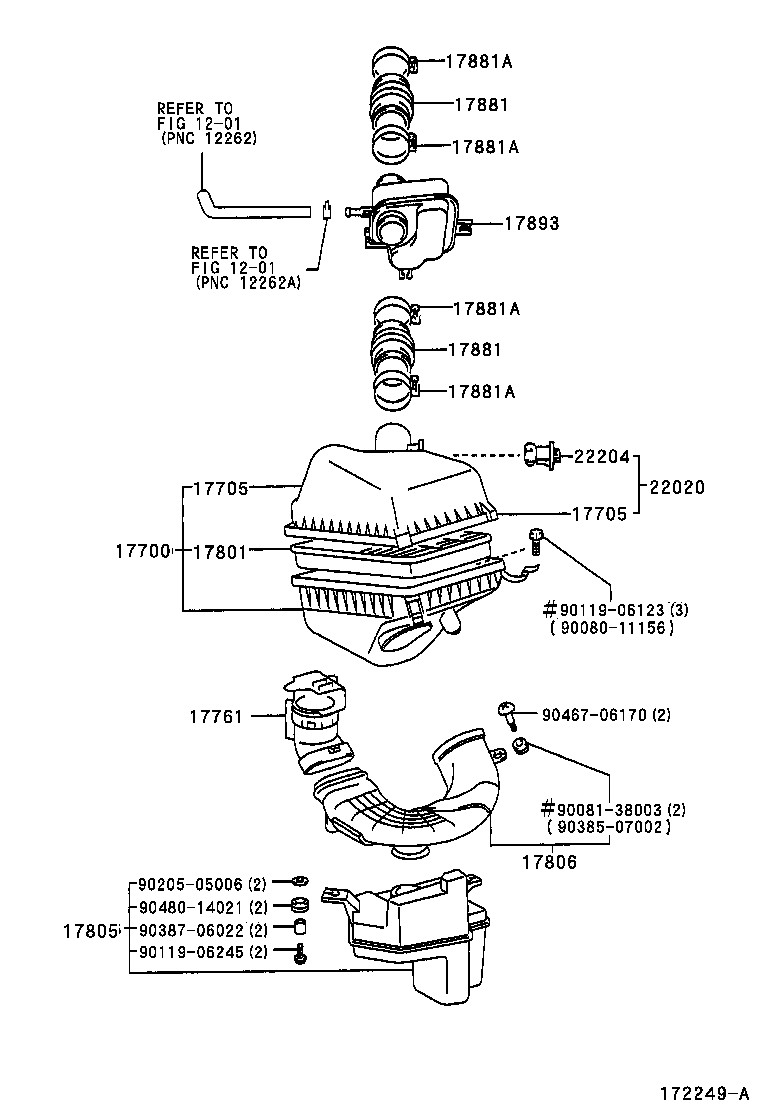

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-0A122 |
1MZFE..MCX20 |
1 | ||
| 17700-0A122 |
1MZFE..MCX20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A031 |
1MZFE..MCX20 |
1 | ||
| 17705-0A031 |
1MZFE..MCX20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-0A031 |
1MZFE..MCX20 |
1 | ||
| 17705-0A031 |
1MZFE..MCX20 |
1 | ||
| 17761 - CAP, AIR CLEANER INLET | ||||
| 17761-0A010 |
1MZFE..MCX20 |
1 | ||
| 17761-0A010 |
1MZFE..MCX20 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-03010 |
1MZFE..MCX20 |
1 | ||
| 17801-03010 |
1MZFE..MCX20 |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-0A030 |
1MZFE..MCX20 |
1 | ||
| 17805-0A030 |
1MZFE..MCX20 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-0A030 |
1MZFE..MCX20 |
1 | ||
| 17806-0A030 |
1MZFE..MCX20 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0A030 |
1MZFE..MCX20 |
2 | ||
| 17881-0A030 |
1MZFE..MCX20 |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0A030 |
1MZFE..MCX20 |
2 | ||
| 17881-0A030 |
1MZFE..MCX20 |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 96111-10830 |
1MZFE..MCX20 |
4 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-0A031 |
1MZFE..MCX20 |
1 | ||
| 17893-0A031 |
1MZFE..MCX20 |
1 | ||
| 22020 - METER ASSY, AIR FLOW W/AIR CLEANER | ||||
| 22020-0A061 |
1MZFE..MCX20 |
1 | ||
| 22020-0A061 |
1MZFE..MCX20 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-20010 |
1MZFE..MCX20 |
1 | ||
| 22204-20010 |
1MZFE..MCX20 |
1 | ||
| Common parts | ||||
| 90080-11156 | ||||
| 90081-38003 | ||||
| 90119-06123 | ||||
| 90119-06245 | ||||
| 90205-05006 | ||||
| 90385-07002 | ||||
| 90387-06022 | ||||
| 90467-06170 | ||||
| 90480-14021 | ||||
| Linked diagrams | ||||
| 1201 | ||||
