MCX10R-BEPNKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

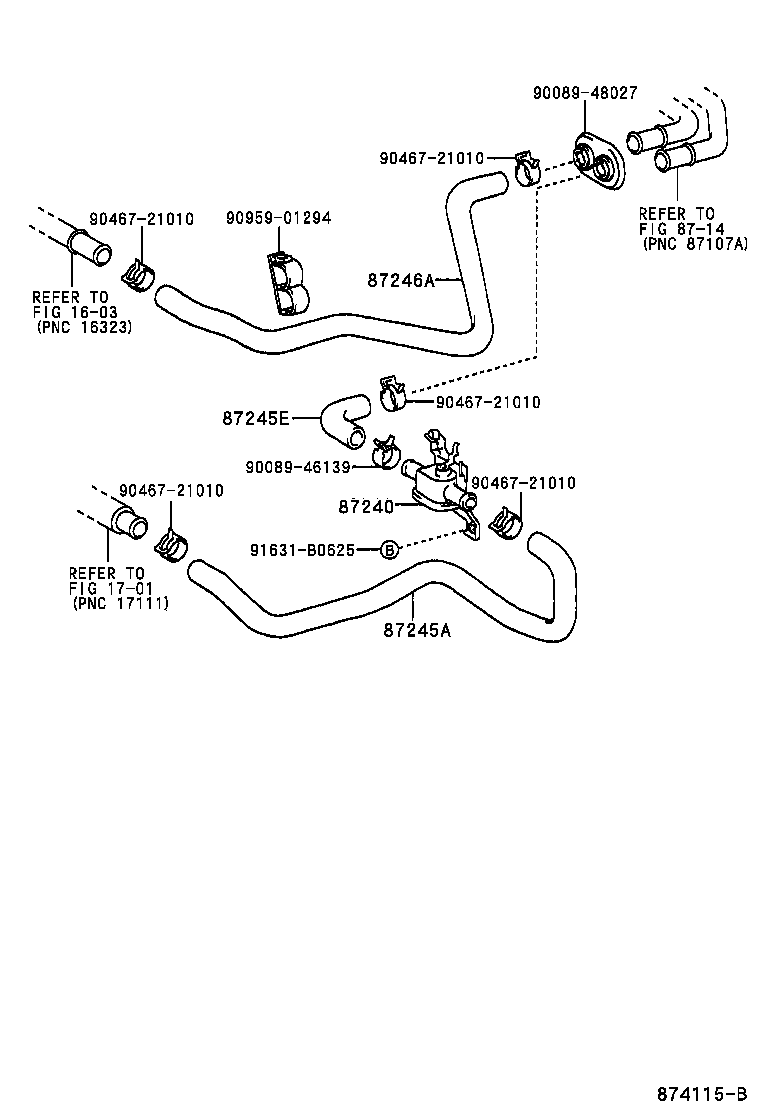

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-YC020 |
MCX10 |
1 | ||
| 87240-YC020 |
MCX10 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-YC130 |
MCX10 |
1 | ||
| 87245-YC130 |
MCX10 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-YC160 |
MCX10 |
1 | ||
| 87245-YC160 |
MCX10 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-YC140 |
MCX10 |
1 | ||
| 87245-YC140 |
MCX10 |
1 | ||
| Common parts | ||||
| 90089-46139 | ||||
| 90089-48027 | ||||
| 90467-21010 | ||||
| 90959-01294 | ||||
| 91631-B0625 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 8714 | ||||
