MCX10R-BEPNKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(0004- )

Click highlighted areas on diagram

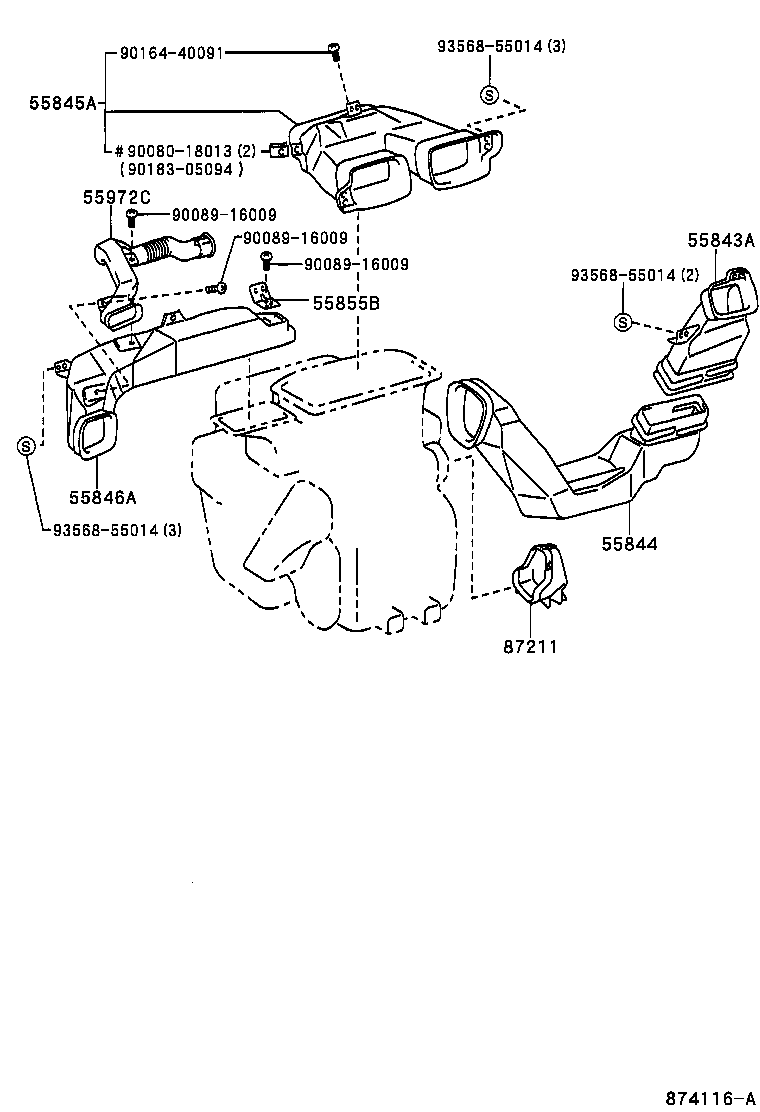

AIR DUCT

diagram 55843A 55844 55845A 55846A 55855B 55972C 87211 9008018013 9008916009 9008916009 9008916009 9016440091 9018305094 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-YF010

MCX10

 1
55843-YF010

MCX10

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-YF010

MCX10

 1
55844-YF010

MCX10

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-41010

MCX10

 1
55845-41010

MCX10

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-YF010

MCX10

 1
55846-YF010

MCX10

 1
55855B - BRACKET, AIR DUCT REGISTER MOUNTING
55855-YF010

MCX10

 1
55855-YF010

MCX10

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-YF010

MCX10

 1
55972-YF010

MCX10

 1
87211 - DUCT, AIR, NO.1
87211-YC010

MCX10

 1
87211-YC010

MCX10

 1
Common parts
90080-18013
90089-16009
90164-40091
90183-05094
93568-55014

ILLUST NO. 3 OF 3(0004- )

Click highlighted areas on diagram

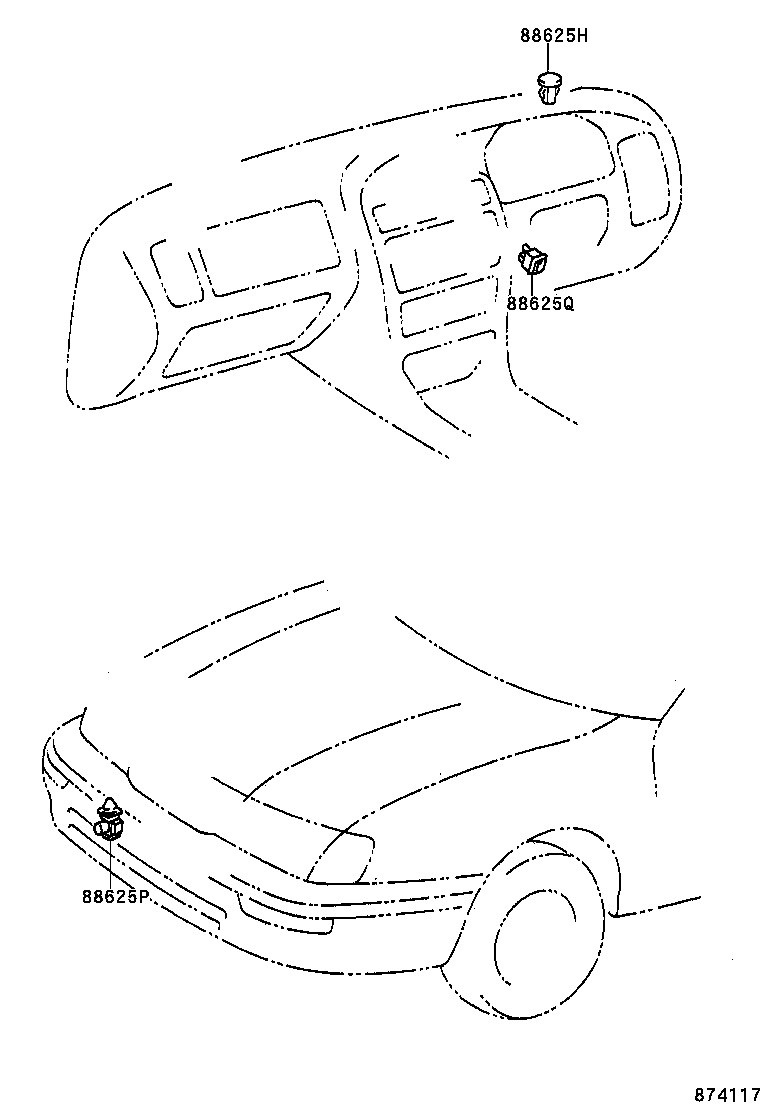

SENSOR

diagram 88625H 88625P 88625Q
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-41010

MCX10..GD,VXI

 1
88625-41010

MCX10..GD,VXI

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88625-YC041

MCX10..GD,VXI

 1
88625-YC040

MCX10..GD,VXI

 1
88625-YC041

MCX10..GD,VXI

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-YC050

MCX10..GD,VXI

 1
88625-33010

MCX10..GD,VXI

 1
88625-YC050

MCX10..GD,VXI

 1

ILLUST NO. 1 OF 3(0004- )

Click highlighted areas on diagram

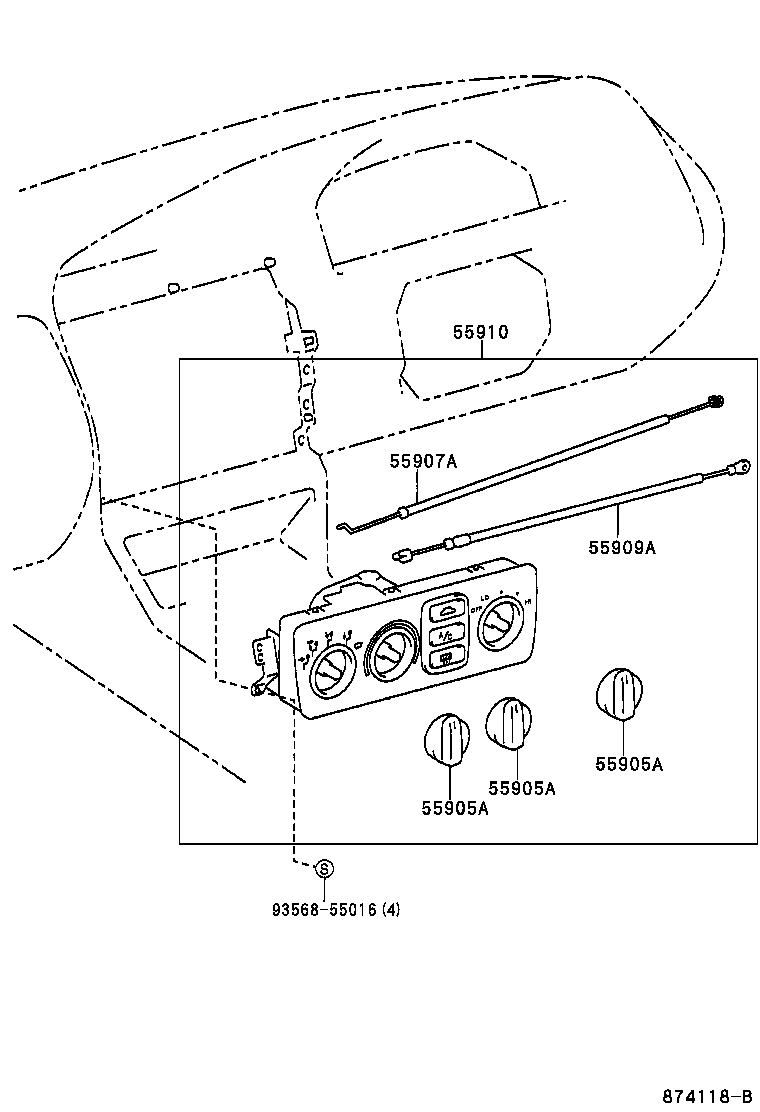

CONTROL--MANUAL AIR CONDITIONER

diagram 55905A 55905A 55905A 55907A 55909A 55910 9356855016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-30270

MCX10..GD,VXI

 1
55905-30270

MCX10..GD,VXI

 1
55905A - KNOB, HEATER CONTROL
55905-30270

MCX10..GD,VXI

 1
55905-30270

MCX10..GD,VXI

 1
55905A - KNOB, HEATER CONTROL
55905-30270

MCX10..GD,VXI

 1
55905-30270

MCX10..GD,VXI

 1
Common parts
93568-55016

ILLUST NO. 1 OF 3(0004- )

Click highlighted areas on diagram

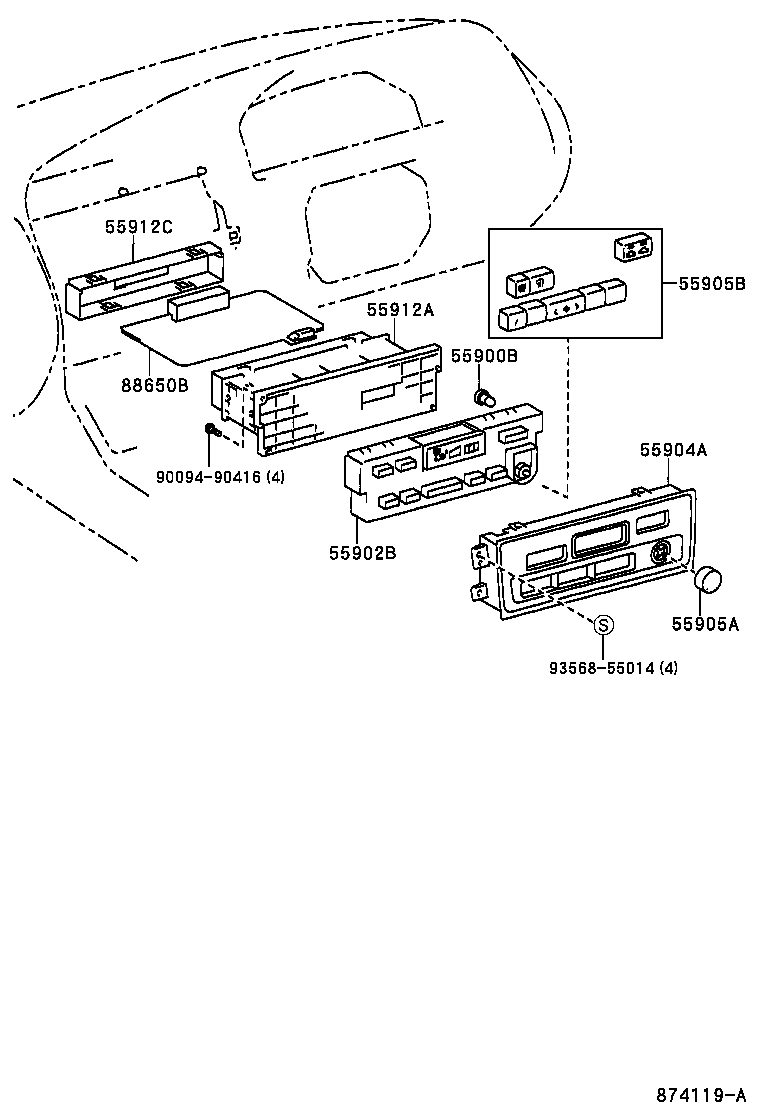

CONTROL--AUTO AIR CONDITIONER

diagram 55900B 55902B 55904A 55905A 55905B 55912A 55912C 88650B 9009490416 9356855014
Part # Description Qty Price
55900B - BULB, AIR CONDITIONER CONTROL
90010-03001

MCX10..GD,VXI

14V 1.4W,KNOB

 4
90010-03032

MCX10..GD,VXI

14V 1.4W,LCD

 2
90010-03032

MCX10..GD,VXI

14V 1.4W,LCD

 2
90010-03001

MCX10..GD,VXI

14V 1.4W,KNOB

 4
55902B - CONTROL SUB-ASSY, HEATER
55902-41050

MCX10..GD,VXI

 1
55902-41050

MCX10..GD,VXI

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-41010

MCX10..GD,VXI

 1
55904-41010

MCX10..GD,VXI

 1
55905A - KNOB, HEATER CONTROL
55905-30270

MCX10..GD,VXI

 1
55905-30270

MCX10..GD,VXI

 1
55905B - KNOB, HEATER CONTROL, NO.2
55905-41320

MCX10..GD,VXI

 1
55905-41320

MCX10..GD,VXI

 1
55912A - HOUSING, HEATER CONTROL
55912-33010

MCX10..GD,VXI

 1
55912-33010

MCX10..GD,VXI

 1
55912C - HOUSING, HEATER CONTROL
55912-33030

MCX10..GD,VXI

 1
55912-33030

MCX10..GD,VXI

 1
88650B - AMPLIFIER ASSY, AIRCONDITIONER
88650-41060

MCX10..GD,VXI

 1
88650-41060

MCX10..GD,VXI

 1
Common parts
90094-90416
93568-55014
