MCX10R-BEPNKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

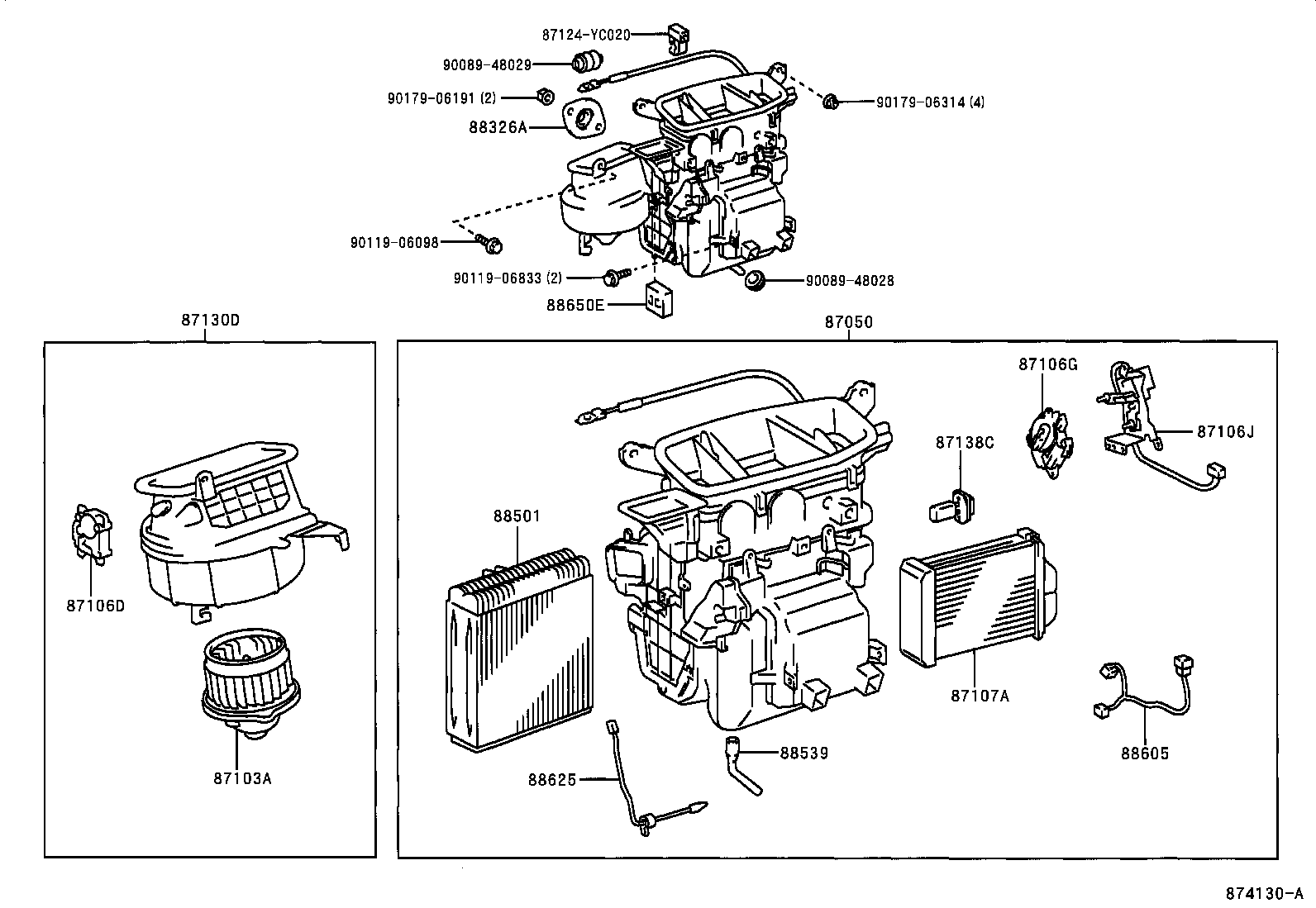

Click highlighted areas on diagram

diagram 87050 87103A 87106D 87106G 87106J 87107A 87124YC020 87130D 87138C 88326A 88501 88539 88605 88625 88650E 9008948028 9008948029 9011906098 9011906833 9017906191 9017906314
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-YF030

MCX10..GD,VXI

W(AUTO AIR CONDITIONER)

 1
87050-YF030

MCX10..GD,VXI

W(AUTO AIR CONDITIONER)

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-YC021

MCX10

 1
87103-YC020

MCX10

 1
87103-YC021

MCX10

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-YF020

MCX10

 1
87106-YF020

MCX10

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-YF010

MCX10

 1
87106-YF010

MCX10

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-YC010

MCX10

 1
87106-YC010

MCX10

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-YC020

MCX10

 1
87107-YC020

MCX10

 1
87130D - BLOWER ASSY
87130-YF010

MCX10

 1
87130-YF010

MCX10

 1
87138C - RESISTOR, BLOWER
87138-YC030

MCX10..GD,VXI

 1
87138-YC030

MCX10..GD,VXI

 1
88326A - PLATE, COVER
88326-33010

MCX10

W(AIR CONDITIONER)

 1
88326-33010

MCX10

W(AIR CONDITIONER)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-YF010

MCX10

 1
88501-YF010

MCX10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-YC020

MCX10

 1
88539-YC020

MCX10

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-YF020

MCX10..GD,VXI

 1
88605-YF020

MCX10..GD,VXI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-YC070

MCX10

 1
88625-YC070

MCX10

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-YF010

MCX10

 1
88650-YF010

MCX10..GD,VXI

 1
Common parts
87124-YC020
90089-48028
90089-48029
90119-06098
90119-06833
90179-06191
90179-06314

(0004- )

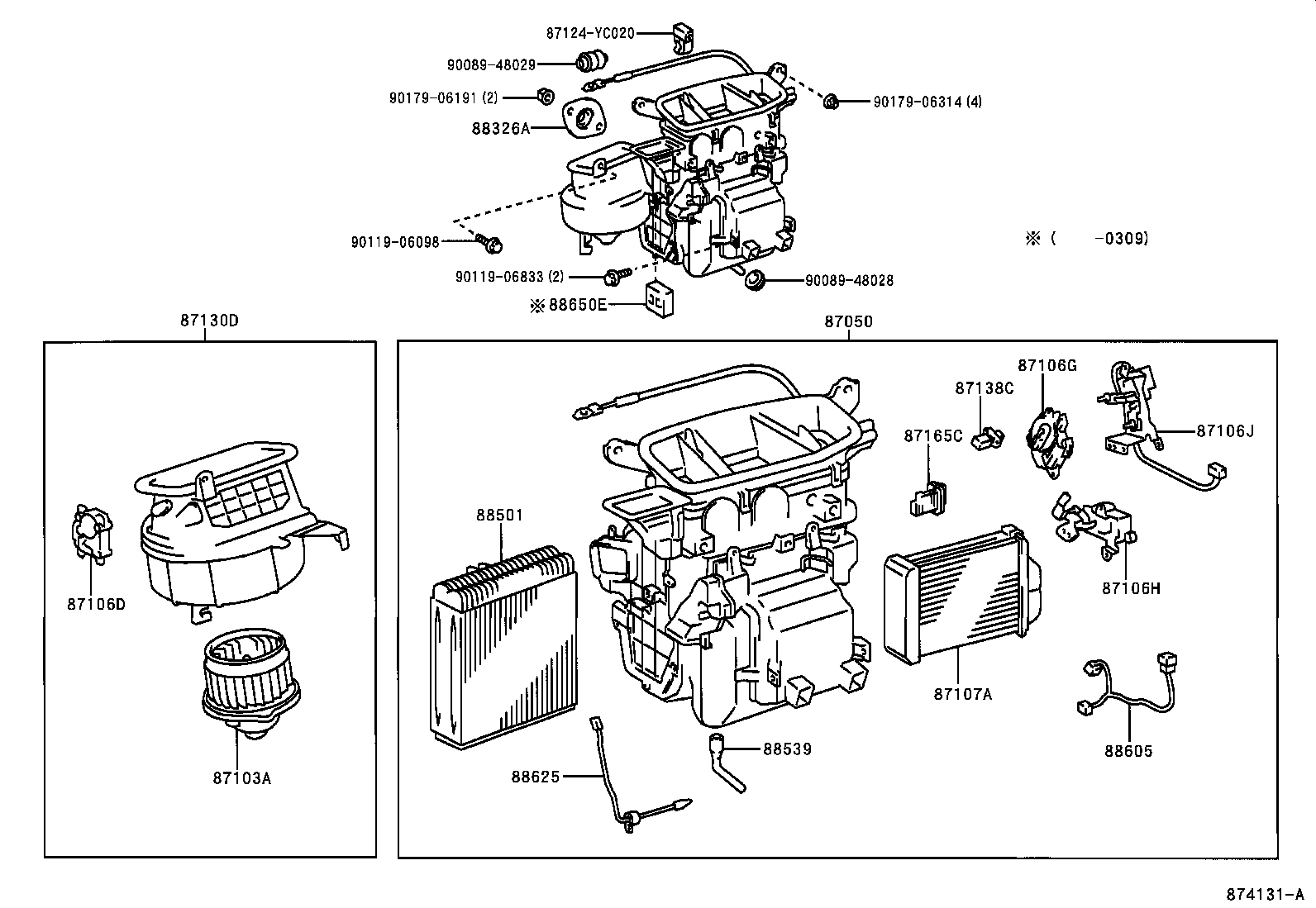

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 87050 87103A 87106D 87106G 87106H 87106J 87107A 87124YC020 87130D 87138C 87165C 88326A 88501 88539 88605 88625 88650E 9008948028 9008948029 9011906098 9011906833 9017906191 9017906314
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-YF030

MCX10..GD,VXI

W(AUTO AIR CONDITIONER)

 1
87050-YF030

MCX10..GD,VXI

W(AUTO AIR CONDITIONER)

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-YC021

MCX10

 1
87103-YC020

MCX10

 1
87103-YC021

MCX10

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-YF020

MCX10

 1
87106-YF020

MCX10

 1
87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-YF010

MCX10

 1
87106-YF010

MCX10

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-YC060

MCX10..GD,VXI

 1
87106-YC060

MCX10..GD,VXI

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-YC010

MCX10

 1
87106-YC010

MCX10

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-YC020

MCX10

 1
87107-YC020

MCX10

 1
87130D - BLOWER ASSY
87130-YF010

MCX10

 1
87130-YF010

MCX10

 1
87138C - RESISTOR, BLOWER
87138-YC030

MCX10..GD,VXI

 1
87138-YC030

MCX10..GD,VXI

 1
87165C - CONTROL, BLOWER MOTOR
87165-YC020

MCX10..GD,VXI

 1
87165-YC020

MCX10..GD,VXI

 1
88326A - PLATE, COVER
88326-33010

MCX10

W(AIR CONDITIONER)

 1
88326-33010

MCX10

W(AIR CONDITIONER)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-YF010

MCX10

 1
88501-YF010

MCX10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-YC020

MCX10

 1
88539-YC020

MCX10

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-YF020

MCX10..GD,VXI

 1
88605-YF020

MCX10..GD,VXI

 1
88625 - THERMISTOR, COOLER, NO.1
88625-YC070

MCX10

 1
88625-YC070

MCX10

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-YF010

MCX10

 1
88650-YF010

MCX10..GD,VXI

 1
Common parts
87124-YC020
90089-48028
90089-48029
90119-06098
90119-06833
90179-06191
90179-06314
