MCX10R-BEPNKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004-0309)

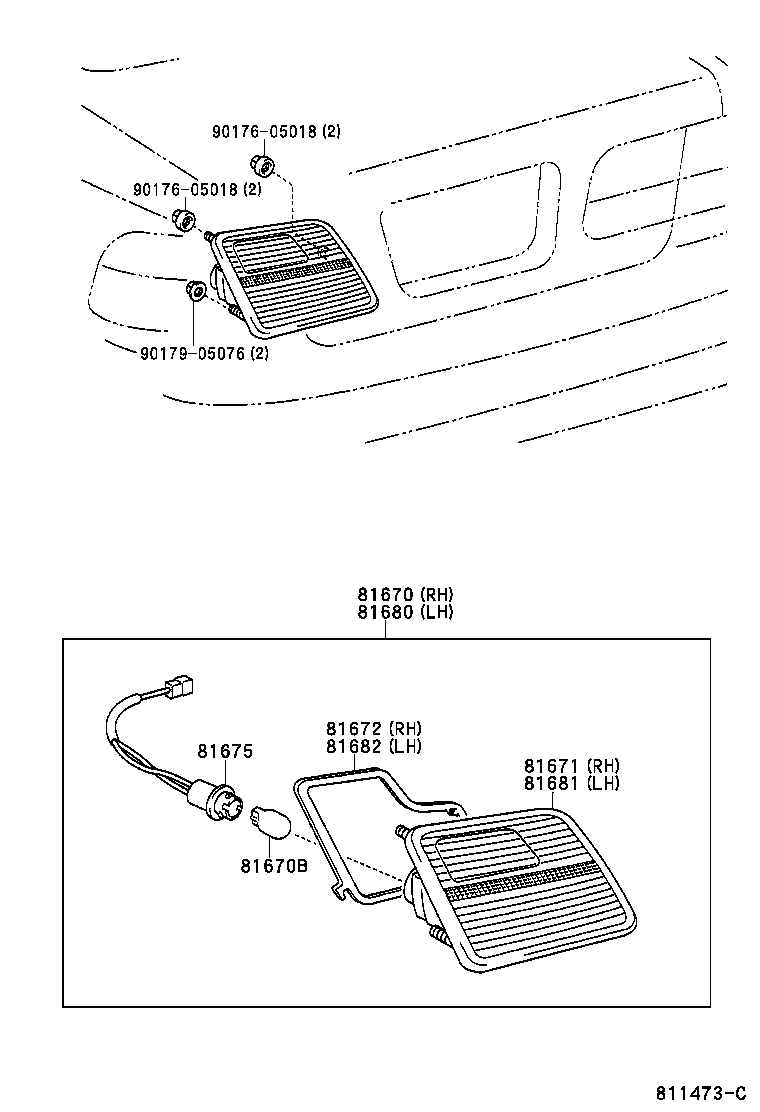

Click highlighted areas on diagram

diagram 81670 81670B 81671 81672 81675 81680 81681 81682 9017605018 9017605018 9017905076
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-07010

MCX10

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-11039

MCX10

12V 16W

 2
90981-11059

MCX10

12V 16W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-AC010

MCX10

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-AC010

MCX10

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81675-07010

MCX10

 2
81680 - LAMP ASSY, BACK UP, LH
81680-07010

MCX10

 1
81681 - LENS, BACK-UP LAMP, LH
81681-AC010

MCX10

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81682-AC010

MCX10

 1
Common parts
90176-05018
90179-05076

(0309- )

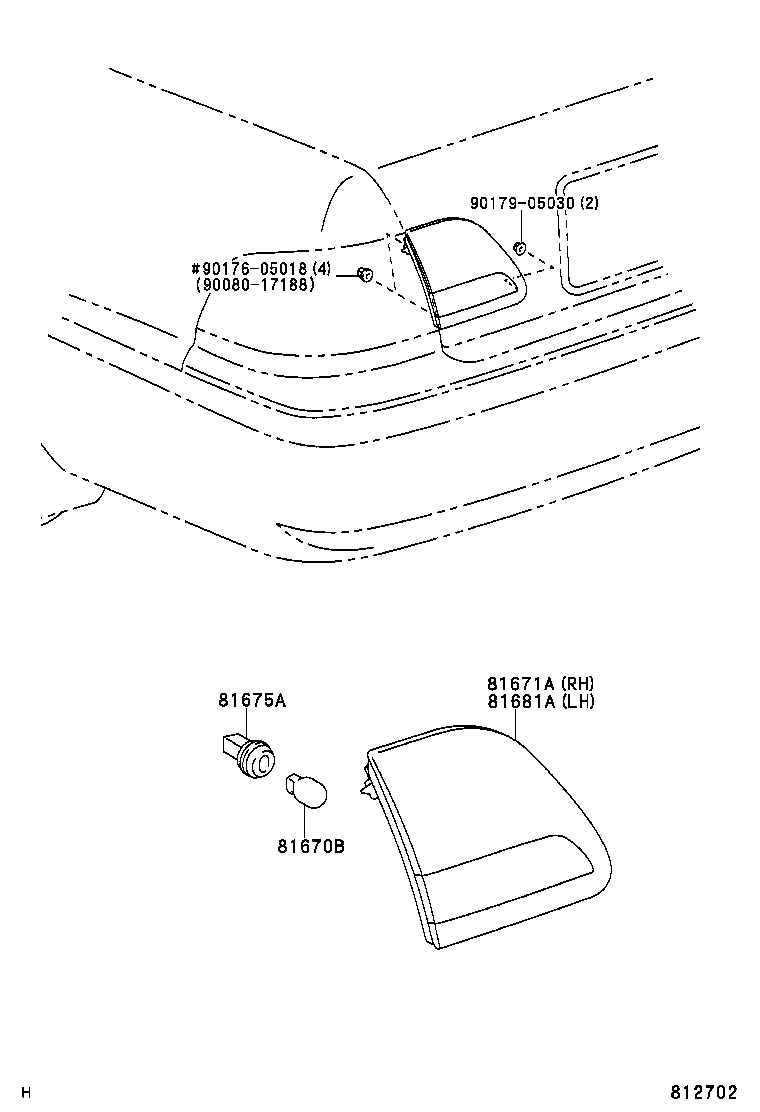

Click highlighted areas on diagram

diagram 81670B 81671A 81675A 81681A 9008017188 9017605018 9017905030
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
90981-11039

MCX10

12V 16W

 2
90981-11059

MCX10

12V 16W

 2
81671A - LENS & BODY, BACK-UP LAMP
81671-8Y002

MCX10

 1
81675A - PLUG, SOCKET(FOR BACK-UP LAMP)
81565-8Y001

MCX10

 2
81681A - LENS & BODY, BACK-UP LAMP, LH
81681-8Y002

MCX10

 1
Common parts
90080-17188
90176-05018
90179-05030
