MCX10R-BEPNKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

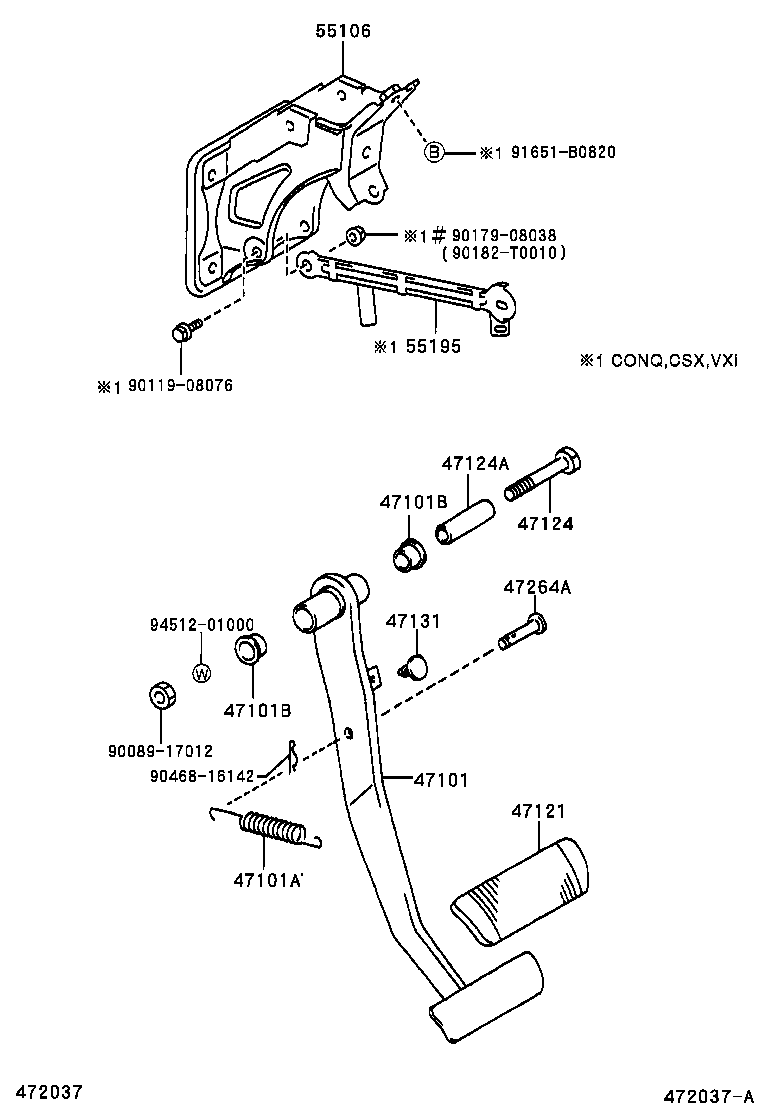

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-YC020 |
MCX10 |
1 | ||
| 47101-YC020 |
MCX10 |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-14024 |
MCX10 |
1 | ||
| 90507-14024 |
MCX10 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90089-38004 |
MCX10 |
2 | ||
| 90089-38004 |
MCX10 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90089-38004 |
MCX10 |
2 | ||
| 90089-38004 |
MCX10 |
2 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-YB010 |
MCX10 |
1 | ||
| 47121-YB010 |
MCX10 |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| 90089-10013 |
MCX10 |
1 | ||
| 90089-10013 |
MCX10 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 90089-38001 |
MCX10 |
1 | ||
| 90089-38001 |
MCX10 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
MCX10 |
1 | ||
| 90541-06036 |
MCX10 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 47148-33030 |
MCX10 |
1 | ||
| 47148-33030 |
MCX10 |
1 | ||
| 47148-33010 |
MCX10 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-YF010 |
MCX10 |
1 | ||
| 55106-YF010 |
MCX10 |
1 | ||
| 55195 - STAY, PEDAL BRACKET, NO.1 | ||||
| 55195-YF010 |
MCX10..CONQ,CSX,VXI |
1 | ||
| 55195-YF010 |
MCX10..CONQ,CSX,VXI |
1 | ||
| Common parts | ||||
| 90089-17012 | ||||
| 90119-08076 | ||||
| 90179-08038 | ||||
| 90182-T0010 | ||||
| 90468-16142 | ||||
| 91651-B0820 | ||||
| 94512-01000 | ||||
