MCX10R-BEPNKQ (2000)
Toyota Avalon

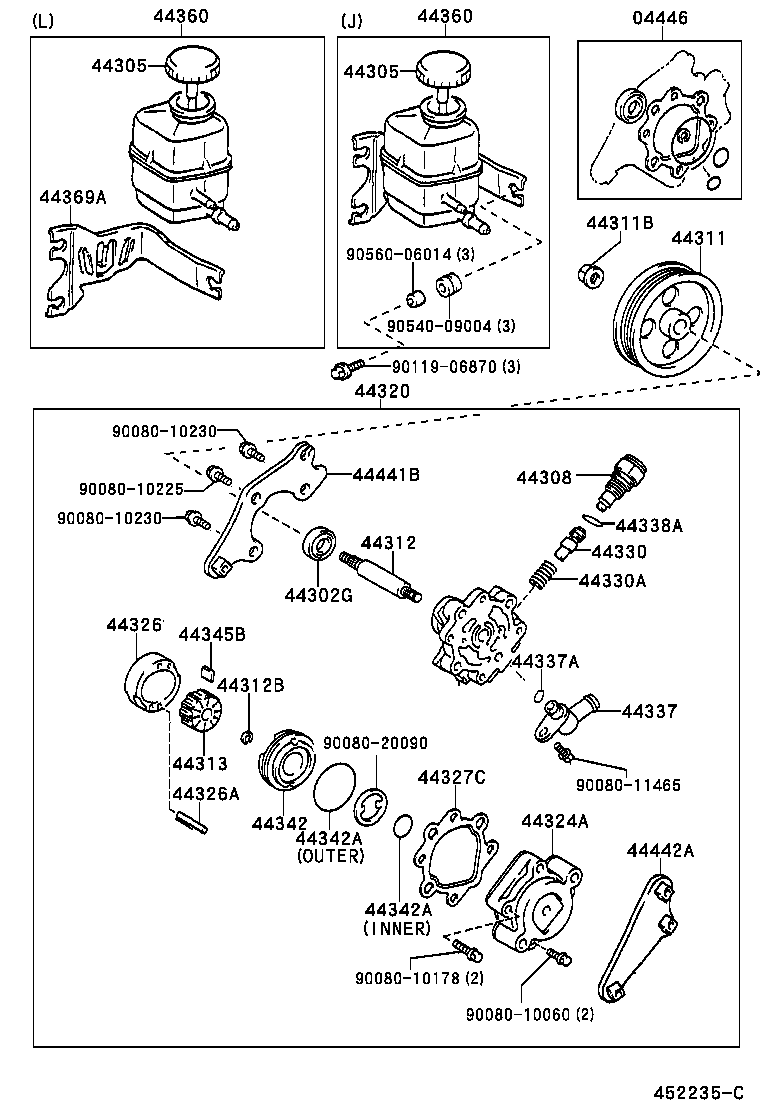

(0004-0309)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-34010 |
MCX10 |
1 | ||
| 04446-0B030 |
MCX10 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
MCX10 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06010 |
MCX10 (L) |
1 | ||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06010 |
MCX10 (L) |
1 | ||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-33060 |
MCX10 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-06030 |
MCX10 |
1 | ||
| 44311-06030 |
MCX10 |
1 | ||
| 44311-33020 |
MCX10 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
MCX10 |
1 | ||
| 90080-17158 |
MCX10 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32020 |
MCX10 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
MCX10 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26070 |
MCX10 MARK 1 |
1 | ||
| 44313-26060 |
MCX10 NO MARK |
1 | ||
| 44313-26080 |
MCX10 MARK 2 |
1 | ||
| 44313-26100 |
MCX10 MARK 4 |
1 | ||
| 44313-26090 |
MCX10 MARK 3 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-06050 |
MCX10 |
1 | ||
| 44320-06080 |
MCX10 |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-33030 |
MCX10 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-32290 |
MCX10 MARK 2 |
1 | ||
| 44325-32280 |
MCX10 MARK 1 |
1 | ||
| 44325-32270 |
MCX10 NO MARK |
1 | ||
| 44325-32300 |
MCX10 MARK 3 |
1 | ||
| 44325-32310 |
MCX10 MARK 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90080-25027 |
MCX10 L=23.3,OD=4.0 |
2 | ||
| 90250-04071 |
MCX10 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-04010 |
MCX10 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-06020 |
MCX10 MARK B |
1 | ||
| 44330-06050 |
MCX10 MARK E |
1 | ||
| 44330-06060 |
MCX10 MARK F |
1 | ||
| 44330-06010 |
MCX10 MARK A |
1 | ||
| 44330-06040 |
MCX10 MARK D |
1 | ||
| 44330-06030 |
MCX10 MARK C |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90080-50247 |
MCX10 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06030 |
MCX10 |
1 | ||
| 44337-33030 |
MCX10 |
1 | ||
| 44337-06030 |
MCX10 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90080-30049 |
MCX10 |
1 | ||
| 90301-11016 |
MCX10 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30074 |
MCX10 ID=19.2,OD=22.3 |
1 | ||
| 90301-19013 |
MCX10 ID=19.2,OD=22.3 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
MCX10 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30053 |
MCX10 INNER |
1 | ||
| 90080-30054 |
MCX10 OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90080-30053 |
MCX10 INNER |
1 | ||
| 90080-30054 |
MCX10 OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26010 |
MCX10 L=15.000 |
10 | ||
| 44345-26040 |
MCX10 L=14.994 |
10 | ||
| 44345-26050 |
MCX10 L=14.992 |
10 | ||
| 44345-26030 |
MCX10 L=14.996 |
10 | ||
| 44345-26020 |
MCX10 L=14.998 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-06010 |
MCX10 |
1 | ||
| 44390-06010 |
MCX10 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-33022 |
MCX10 |
1 | ||
| 44441-06030 |
MCX10 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-06030 |
MCX10 |
1 | ||
| Common parts | ||||
| 90080-10060 | ||||
| 90080-10178 | ||||
| 90080-10225 | ||||
| 90080-10230 | ||||
| 90080-11465 | ||||
| 90080-20090 | ||||
| 90119-06870 | ||||
| 90540-09004 | ||||
| 90560-06014 | ||||

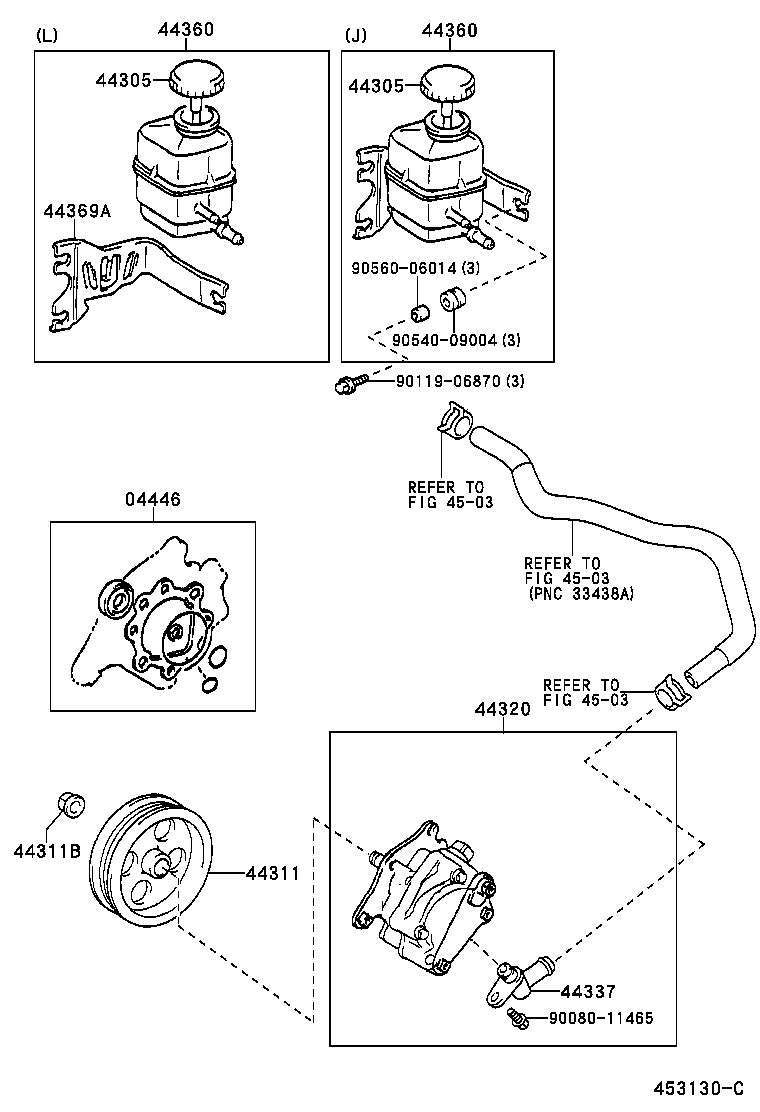

(0309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-34010 |
MCX10 |
1 | ||
| 04446-0B030 |
MCX10 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06010 |
MCX10 (L) |
1 | ||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06030 |
MCX10 (L) |
1 | ||
| 44305-06010 |
MCX10 (L) |
1 | ||
| 44305-32020 |
MCX10 (J) |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-06030 |
MCX10 |
1 | ||
| 44311-06030 |
MCX10 |
1 | ||
| 44311-33020 |
MCX10 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
MCX10 |
1 | ||
| 90080-17158 |
MCX10 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-06050 |
MCX10 |
1 | ||
| 44320-06080 |
MCX10 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-06030 |
MCX10 |
1 | ||
| 44337-33030 |
MCX10 |
1 | ||
| 44337-06030 |
MCX10 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-06010 |
MCX10 (L) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44360-33020 |
MCX10 (J) |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-06010 |
MCX10 |
1 | ||
| 44390-06010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90080-11465 | ||||
| 90119-06870 | ||||
| 90540-09004 | ||||
| 90560-06014 | ||||
| Linked diagrams | ||||
| 4503 | ||||
