MCX10R-BEPNKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

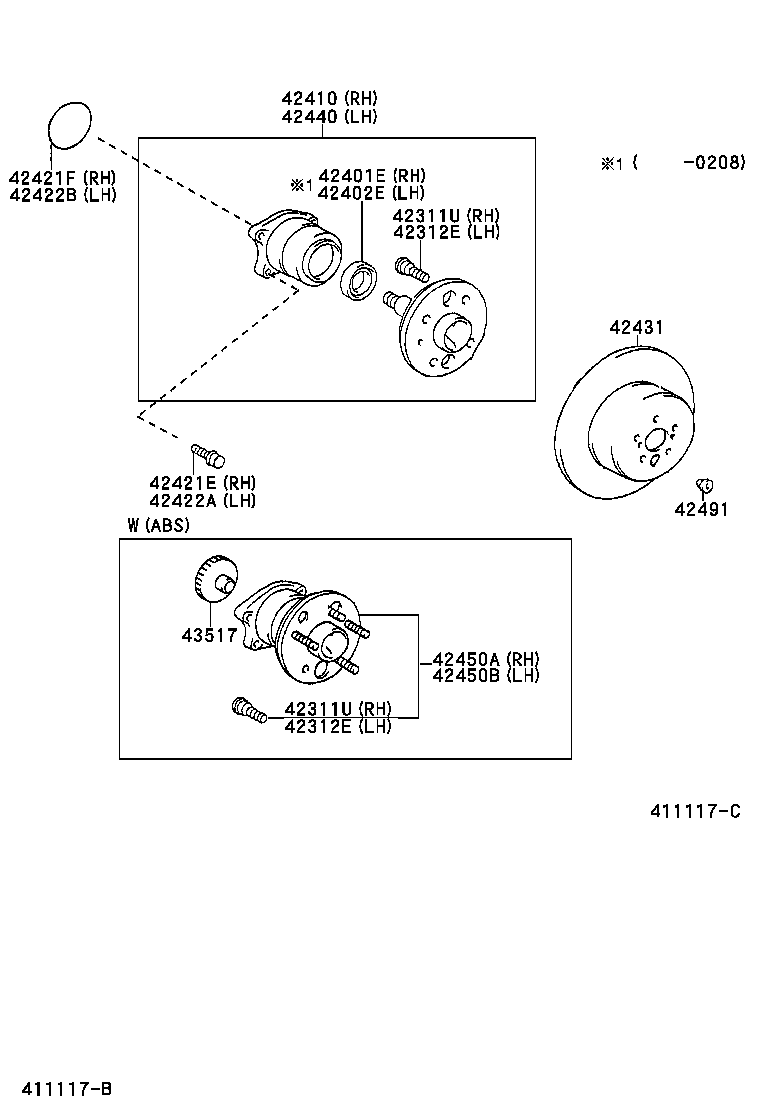

Click highlighted areas on diagram

diagram 42311U 42311U 42312E 42312E 42401E 42402E 42410 42421E 42421F 42422A 42422B 42431 42440 42450A 42450B 42491 43517
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90089-11034

MCX10

 5
90089-11034

MCX10

 5
42311U - BOLT, HUB (FOR REAR AXLE RH)
90089-11034

MCX10

 5
90089-11034

MCX10

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90089-11034

MCX10

 5
90089-11034

MCX10

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90089-11034

MCX10

 5
90089-11034

MCX10

 5
42401E - SEAL, OIL (FOR REAR AXLE HUB RH)
90311-42018

MCX10

 1
42402E - SEAL, OIL (FOR REAR AXLE HUB LH)
90311-42018

MCX10

 1
42410 - HUB & BEARING ASSY, REAR AXLE, RH
42410-YC020

MCX10..CONQ,VXI

 1
42410-07010

MCX10..CONQ,VXI

 1
42421E - BOLT (FOR REAR AXLE BEARING CASE RH)
90105-10124

MCX10

 4
90105-10124

MCX10

 4
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-63003

MCX10

 1
90301-63006

MCX10

 1
90301-63006

MCX10

 1
42422A - BOLT (FOR REAR AXLE BEARING CASE LH)
90105-10124

MCX10

 4
90105-10124

MCX10

 4
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-63003

MCX10

 1
90301-63006

MCX10

 1
90301-63006

MCX10

 1
42431 - DISC, REAR
42431-07040

MCX10

 2
42431-06090

MCX10

 2
42440 - HUB & BEARING ASSY, REAR AXLE, LH
42410-YC020

MCX10..CONQ,VXI

 1
42410-07010

MCX10..CONQ,VXI

 1
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42410-YC040

MCX10

 1
42410-07010

MCX10

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42410-YC040

MCX10

 1
42410-07010

MCX10

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-06010

MCX10

 2
47491-06010

MCX10

 2
47491-22020

MCX10

 2
43517 - ROTOR, SKID CONTROL, REAR
43517-12021

MCX10

 2
43517-12021

MCX10

 2
