MCX10R-BEPNKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

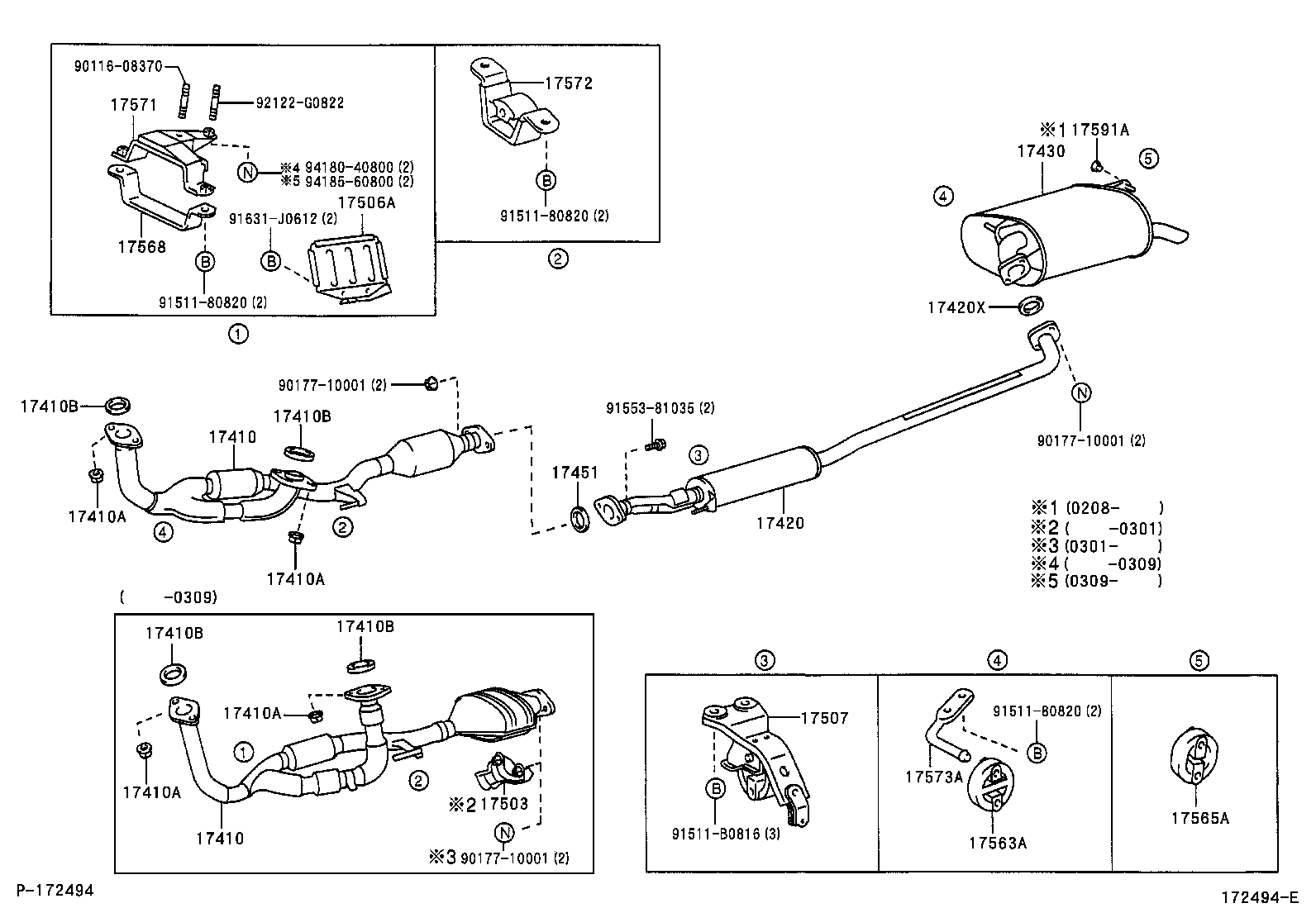

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410A 17410A 17410B 17410B 17410B 17410B 17420 17420X 17430 17451 17503 17506A 17507 17563A 17565A 17568 17571 17572 17573A 17591A 9011608370 9017710001 9017710001 9017710001 9151180820 9151180820 9151180820 91511B0816 9155381035 91631J0612 92122G0822 9418040800 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0A380

1MZFE..MCX10

 1
17410-0A250

1MZFE..MCX10

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0A380

1MZFE..MCX10

 1
17410-0A250

1MZFE..MCX10

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCX10

 4
90179-10070

1MZFE..MCX10

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCX10

 4
90179-10070

1MZFE..MCX10

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCX10

 4
90179-10070

1MZFE..MCX10

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCX10

 4
90179-10070

1MZFE..MCX10

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCX10

 2
90917-06065

1MZFE..MCX10

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCX10

 2
90917-06065

1MZFE..MCX10

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCX10

 2
90917-06065

1MZFE..MCX10

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCX10

 2
90917-06065

1MZFE..MCX10

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0A231

1MZFE..MCX10

 1
17420-0A230

1MZFE..MCX10

 1
17420-0A231

1MZFE..MCX10

 1
17420-0A160

1MZFE..MCX10

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1MZFE..MCX10

 1
90917-06073

1MZFE..MCX10

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0A200

1MZFE..MCX10

 1
17430-0A201

1MZFE..MCX10

 1
17430-0A201

1MZFE..MCX10

 1
17451 - GASKET, EXHAUST PIPE
90917-06054

1MZFE..MCX10

 1
90917-06054

1MZFE..MCX10

 1
17503 - BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR
17503-03030

1MZFE..MCX10

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-0A060

1MZFE..MCX10

 1
17506-0A060

1MZFE..MCX10

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-20040

1MZFE..MCX10

 1
17507-20040

1MZFE..MCX10

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-03100

1MZFE..MCX10

 1
17565-03100

1MZFE..MCX10

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-03120

1MZFE..MCX10

 1
17565-03120

1MZFE..MCX10

 1
17568 - STAY, EXHAUST PIPE SUPPORT
17568-0A120

1MZFE..MCX10

 1
17568-0A120

1MZFE..MCX10

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0A070

1MZFE..MCX10

 1
17571-0A070

1MZFE..MCX10

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-20040

1MZFE..MCX10

 1
17572-20040

1MZFE..MCX10

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-74211

1MZFE..MCX10

 1
17573-74211

1MZFE..MCX10

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-20010

1MZFE..MCX10

 1
17591-20010

1MZFE..MCX10

 1
Common parts
90116-08370
90177-10001
91511-80820
91511-B0816
91553-81035
91631-J0612
92122-G0822
94180-40800
94185-60800
