Toyota Avalon MCX10 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
AVALON
MCX10R-BEPFKQ (2000)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

MCX10R-BEPFKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005

Engine 1MZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

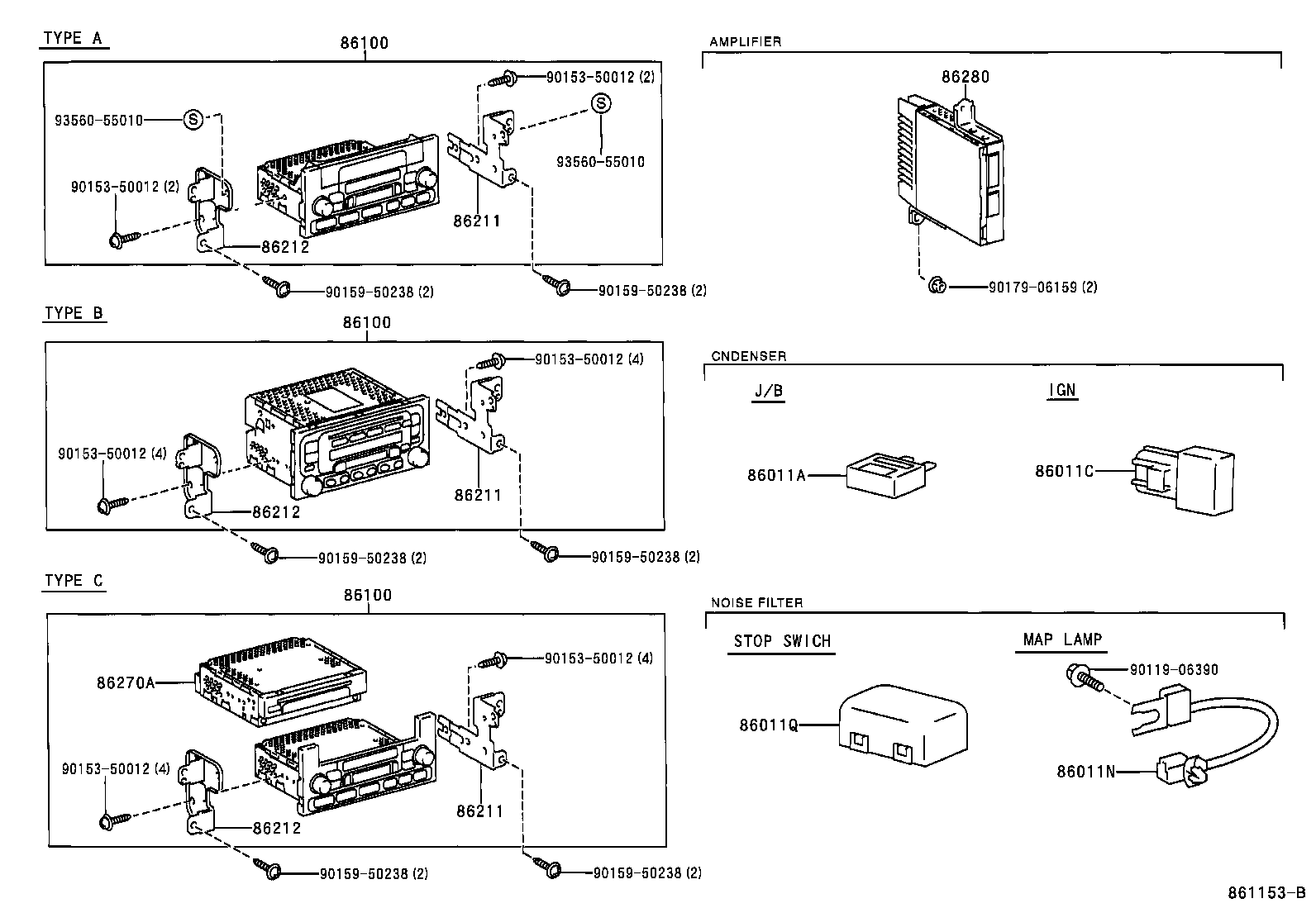

ILLUST NO. 1 OF 4(0004-0309)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX10	09/2003 - 12/2999	1
90980-04066	MCX10	04/2000 - 09/2003	1
86011C - FILTER, NOISE
90980-04083	MCX10	09/2003 - 12/2999	1
90980-04083	MCX10	04/2000 - 09/2003	1
86011N - FILTER, NOISE
90084-98008	MCX10	04/2000 - 09/2003	1
86011Q - CONDENSER, RADIO SETTING
90089-88002	MCX10	09/2003 - 12/2999	1
90084-98052	MCX10	04/2000 - 09/2003	1
86100 - RADIO ASSY
86100-YF020	MCX10..CSX,VXI TYPE B:REFER TO ILLUSTRATION	04/2000 - 09/2002	1
86100-YF020	MCX10..CONQ,CSX,VXI TYPE B:REFER TO ILLUSTRATION	09/2002 - 09/2003	1
86100-YF010	MCX10..CONQ,CSX TYPE A:REFER TO ILLUSTRATION	04/2000 - 10/2001	1
86100-YF010	MCX10..CSX TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2003	1
86100 - RADIO ASSY
86100-YF020	MCX10..CSX,VXI TYPE B:REFER TO ILLUSTRATION	04/2000 - 09/2002	1
86100-YF020	MCX10..CONQ,CSX,VXI TYPE B:REFER TO ILLUSTRATION	09/2002 - 09/2003	1
86100-YF010	MCX10..CONQ,CSX TYPE A:REFER TO ILLUSTRATION	04/2000 - 10/2001	1
86100-YF010	MCX10..CSX TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2003	1
86100 - RADIO ASSY
86100-YF020	MCX10..CSX,VXI TYPE B:REFER TO ILLUSTRATION	04/2000 - 09/2002	1
86100-YF020	MCX10..CONQ,CSX,VXI TYPE B:REFER TO ILLUSTRATION	09/2002 - 09/2003	1
86100-YF010	MCX10..CONQ,CSX TYPE A:REFER TO ILLUSTRATION	04/2000 - 10/2001	1
86100-YF010	MCX10..CSX TYPE A:REFER TO ILLUSTRATION	10/2001 - 09/2003	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
Common parts
90119-06390
90153-50012
90159-50238
90179-06159
93560-55010

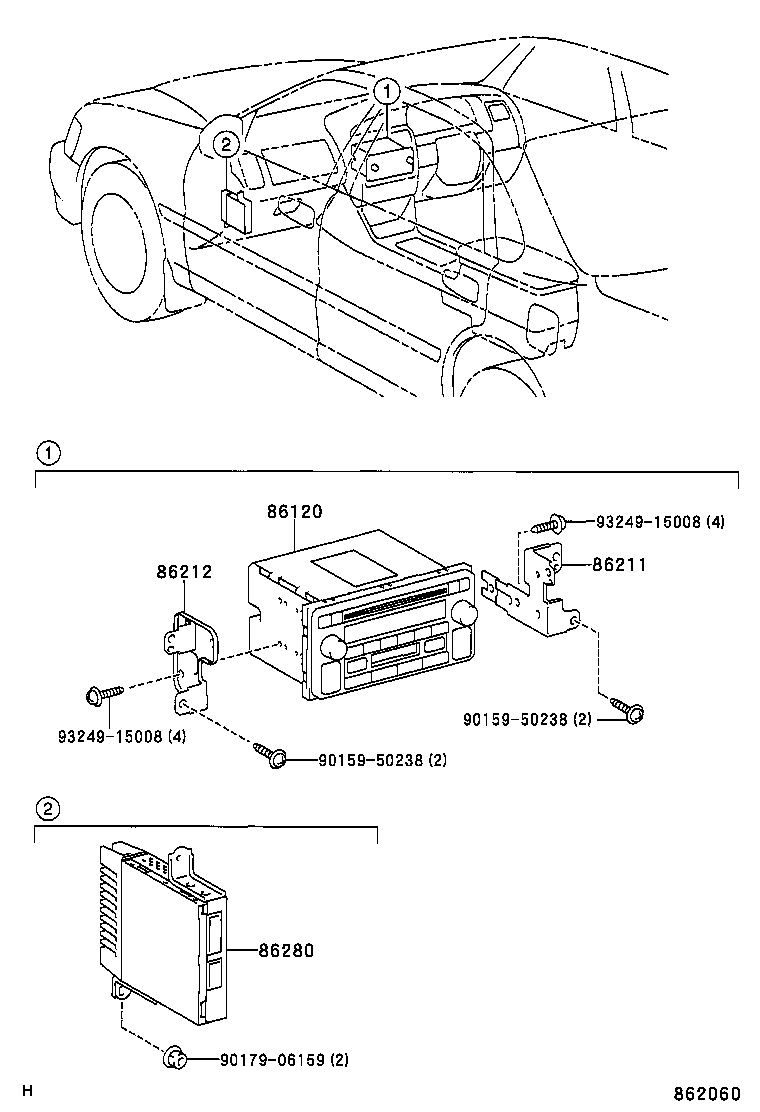

ILLUST NO. 1 OF 4(0309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-YC250	MCX10..CSX FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION	09/2003 - 10/2004	1
86120-YC300	MCX10..CSX FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION	10/2004 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
Common parts
90159-50238
90179-06159
93249-15008

ILLUST NO. 4 OF 4(0309- )

Click highlighted areas on diagram

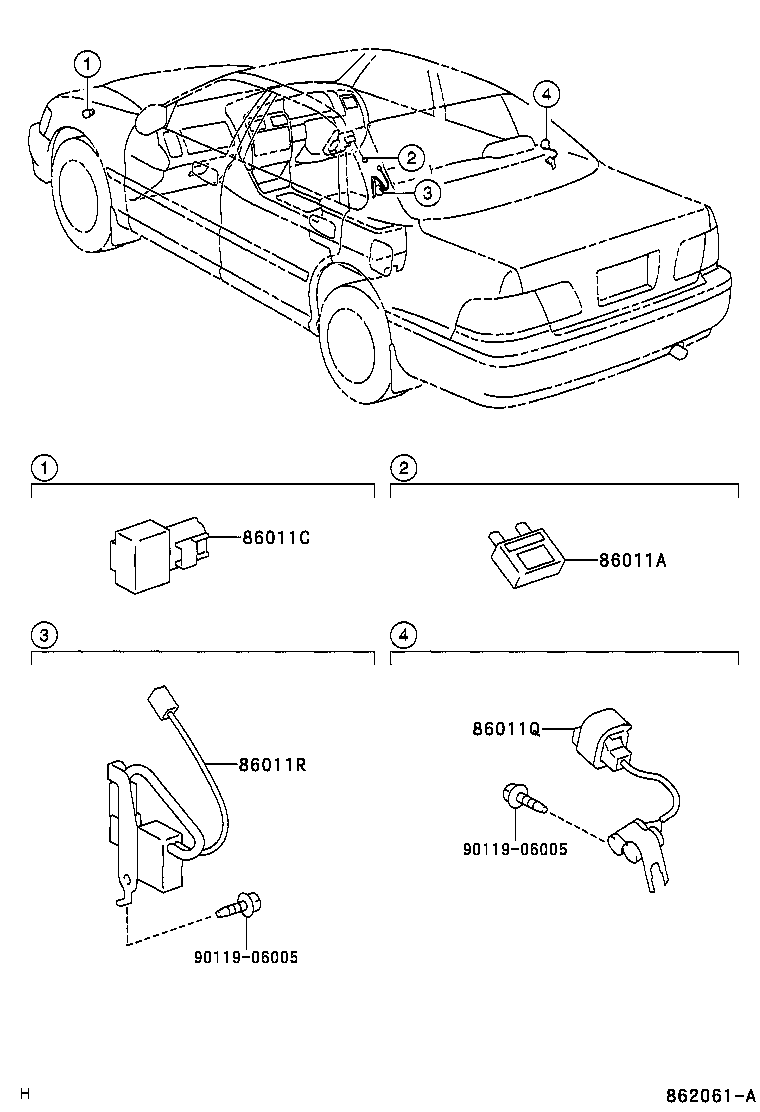

CONDENSER & NOISE FILTER

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX10	09/2003 - 12/2999	1
90980-04066	MCX10	04/2000 - 09/2003	1
86011C - FILTER, NOISE
90980-04083	MCX10	09/2003 - 12/2999	1
90980-04083	MCX10	04/2000 - 09/2003	1
86011Q - CONDENSER, RADIO SETTING
90089-88002	MCX10	09/2003 - 12/2999	1
90084-98052	MCX10	04/2000 - 09/2003	1
86011R - CONDENSER, RADIO SETTING
90980-04178	MCX10	09/2003 - 12/2999	1
Common parts
90119-06005

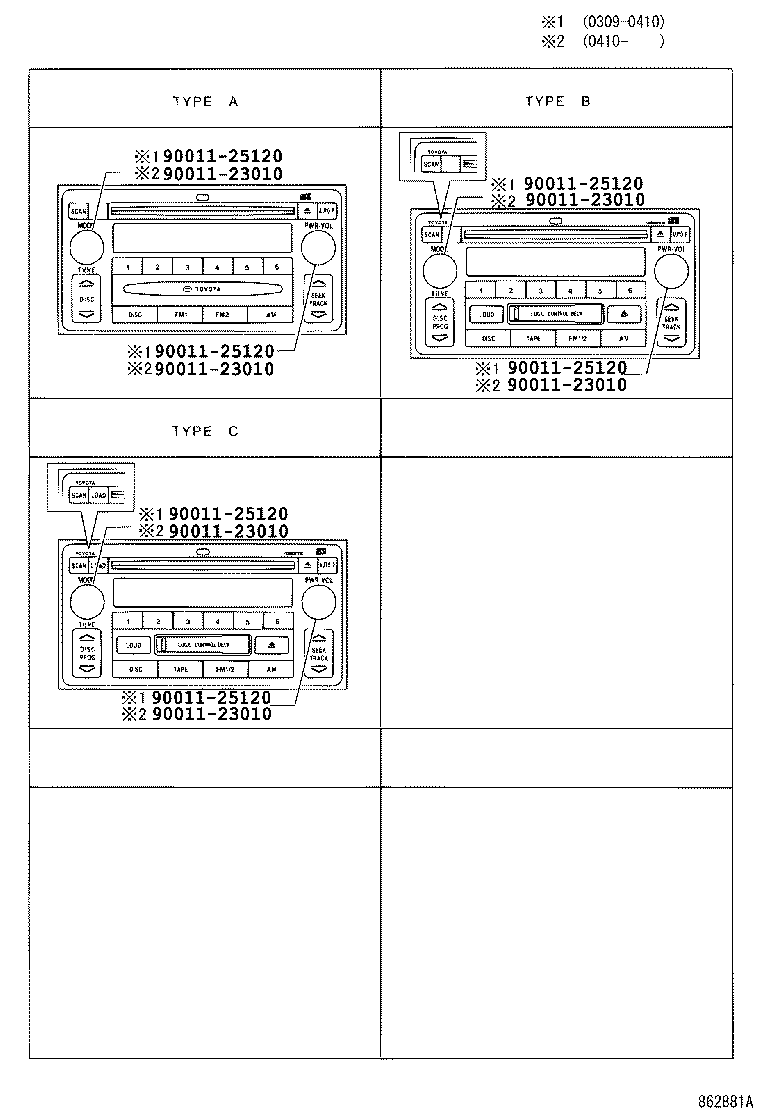

ILLUST NO. 2 OF 4(0309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90011-23010
90011-25120

MCX10R-BEPFKQ (2000)

ILLUST NO. 1 OF 4(0004-0309)

ILLUST NO. 1 OF 4(0309- )

ILLUST NO. 4 OF 4(0309- )

ILLUST NO. 2 OF 4(0309- )

Part Price Details
