MCX10R-BEPFKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

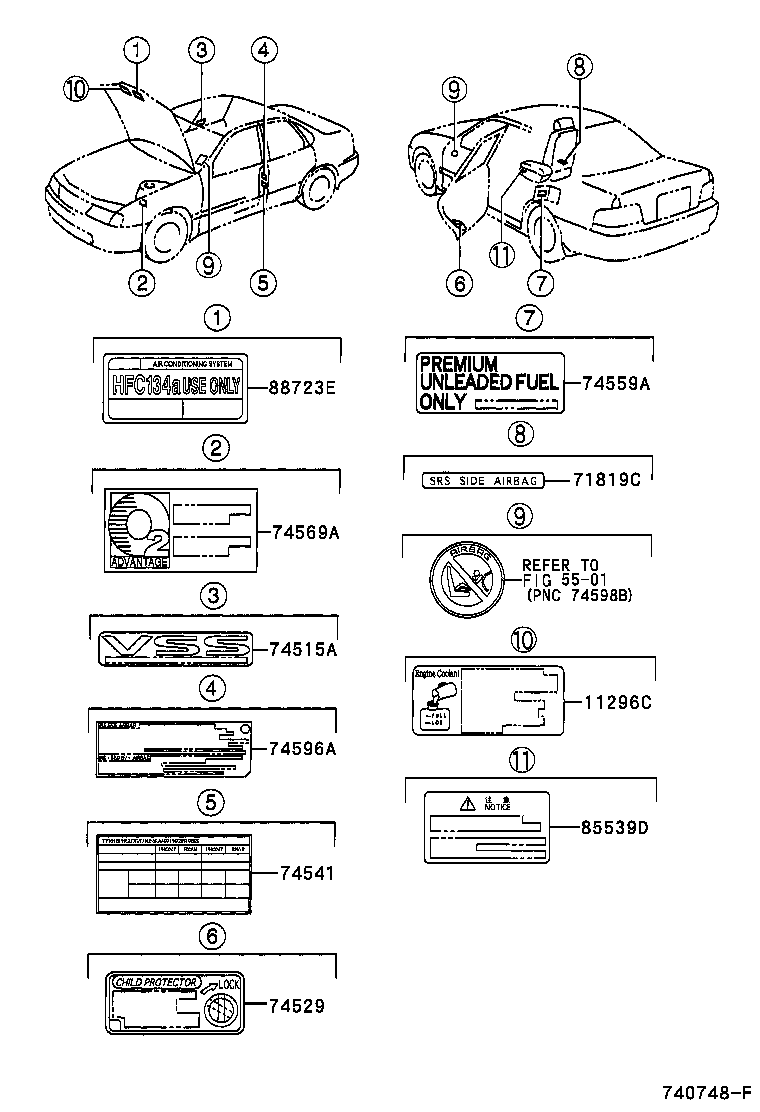

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11296C - LABEL, ENGINE SERVICE INFORMATION | ||||
| 11296-27020 |
1MZFE..MCX10 |
1 | ||
| 71819C - LABEL, SIDE AIR BAG NAME | ||||
| 71819-12020E6 |
MCX10 FAWN,TRIM4# |
2 | ||
| 71819-12020P6 |
MCX10 STONE,TRIM1# |
2 | ||
| 71819-12020P6 |
MCX10 STONE,TRIM1# |
2 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-YF010 |
MCX10 |
1 | ||
| 74515-YF010 |
MCX10 |
1 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-YC010 |
MCX10 RH |
1 | ||
| 69339-YC010 |
MCX10 RH |
1 | ||
| 69349-YC010 |
MCX10 LH |
1 | ||
| 69349-YC010 |
MCX10 LH |
1 | ||
| 74541 - PLATE, TIRE PRESSURE CAUTION | ||||
| 42661-YF020 |
MCX10..CONQ,CSX |
1 | ||
| 42661-YF020 |
MCX10 |
1 | ||
| 42661-YF020 |
MCX10..CONQ,CSX |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-YA010 |
MCX10 |
1 | ||
| 74559-YA010 |
MCX10 |
1 | ||
| 74569A - PLATE, VEHICLE INFORMATION | ||||
| 74569-YC010 |
MCX10 |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-12011 |
MCX10 |
2 | ||
| 74596-12011 |
MCX10 |
2 | ||
| 85539D - LABEL, POWER OUTLET NOTICE | ||||
| 85539-33010 |
MCX10 |
1 | ||
| 88723E - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-YC011 |
MCX10 |
1 | ||
| 88723-YC011 |
MCX10 |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||
