MCX10R-BEPFKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0206- )

diagram 53111 53117 53118 7501 9008017202 9008410030 9017605008 9090105005
Part # Description Qty Price
Common parts
90080-17202 None epc.PartDetail.None
90084-10030 None epc.PartDetail.None
90176-05008 None epc.PartDetail.None
90901-05005 None epc.PartDetail.None
Linked diagrams
7501

(0004-0309)

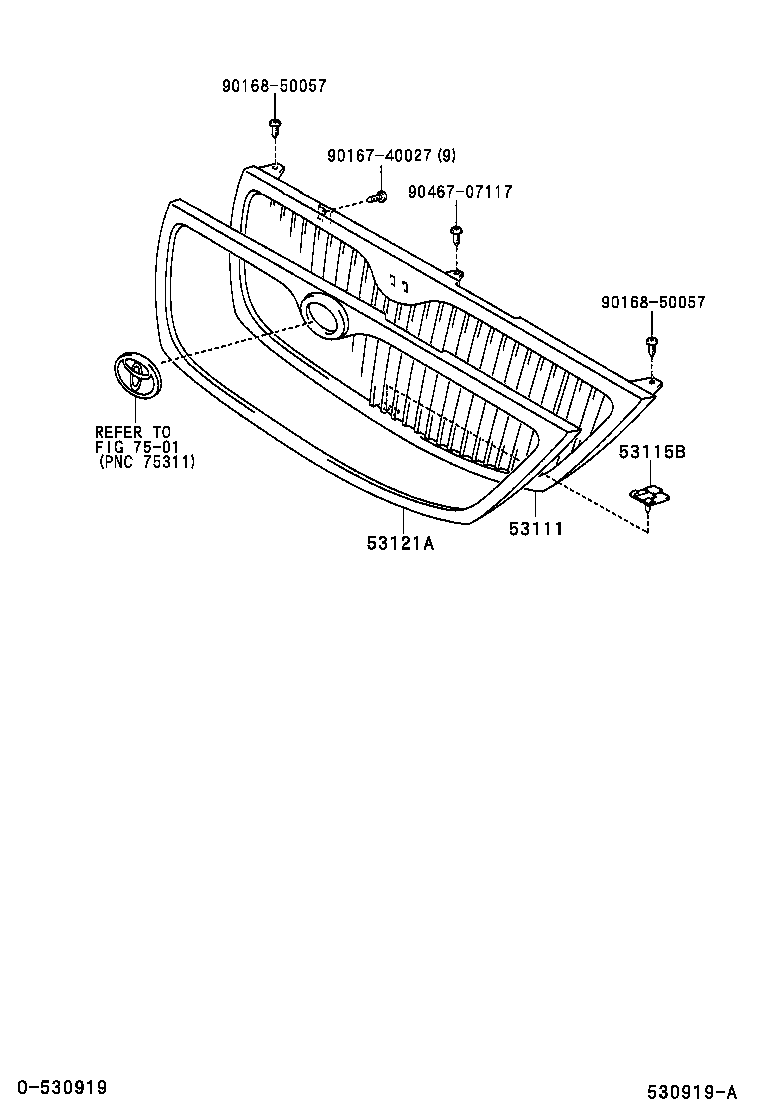

diagram 53111 53115B 53121A 7501 9016740027 9016850057 9016850057 9046707117
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-YF010P1

MCX10..CONQ,CSX

ASH SILVER,TRIM1#,4#&061 ,173 ,4N5 ,6P7

 1
53111-YF010P1

MCX10..CONQ,CSX,VXI

ASH SILVER,061 ,173 ,4N5 ,6P7

 1
53111-YF010P0

MCX10..CONQ,CSX

DIAMOND SILVER,TRIM1#,4#&3N6 ,3N9 ,6P3 ,6P8 ,8L3 ,8N3

 1
53111-YF010P0

MCX10..CONQ,CSX

DIAMOND SILVER,3N4 ,3N6 ,3N9 ,6P3 ,6P8 ,8L3 ,8N3

 1
53111-YF010P0

MCX10..CONQ,CSX,VXI

DIAMOND SILVER,3N4 ,3N6 ,6P8 ,6R4 ,8N8 ,8P4

 1
53111-YF010P0

MCX10..CONQ,CSX,VXI

DIAMOND SILVER,3N4 ,3N6 ,6P3 ,6P8 ,8L3 ,8N3

 1
53100-YF050

MCX10..CSX,GD,VXI

 1
53111-YF010P1

MCX10..CONQ,CSX,VXI

ASH SILVER,061 ,173 ,4N5 ,583 ,6P7

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

MCX10

 1
53121A - MOULDING, RADIATOR GRILLE
53121-YF900

MCX10..CONQ,CSX

 1
Common parts
90167-40027 None epc.PartDetail.None
90168-50057 None epc.PartDetail.None
90467-07117 None epc.PartDetail.None
Linked diagrams
7501

(0309- )

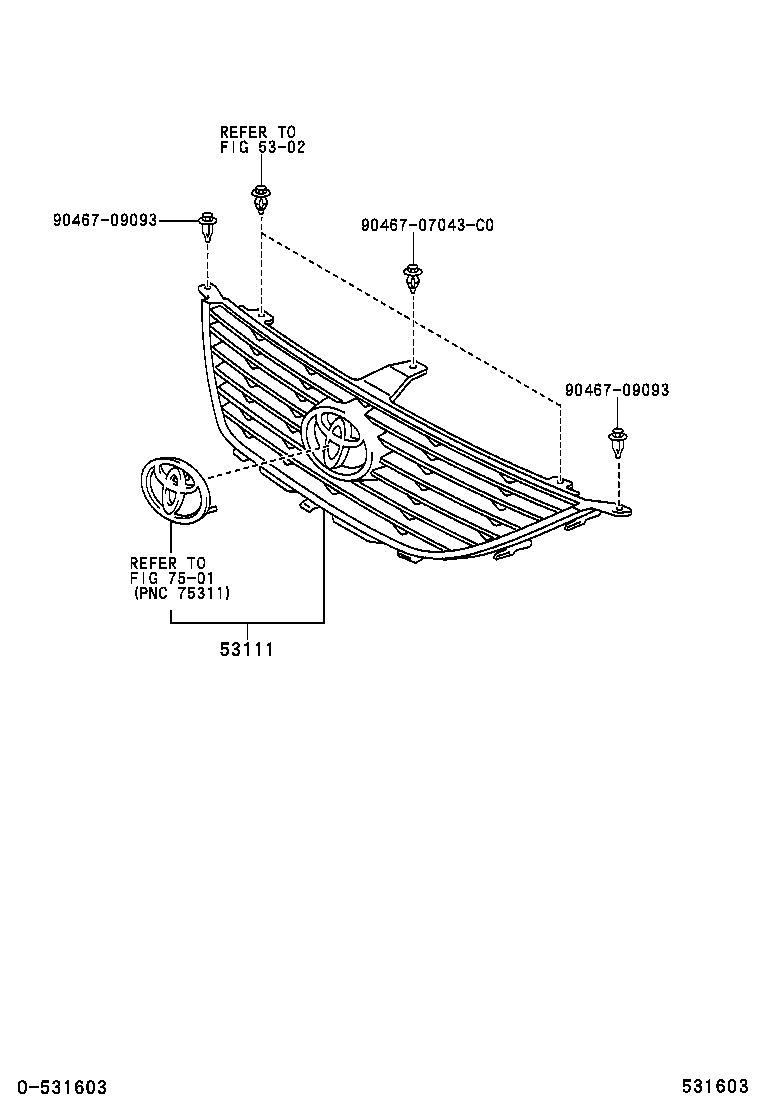

diagram 5302 53111 7501 9046707043C0 9046709093 9046709093
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-YF010P1

MCX10..CONQ,CSX

ASH SILVER,TRIM1#,4#&061 ,173 ,4N5 ,6P7

 1
53111-YF010P1

MCX10..CONQ,CSX,VXI

ASH SILVER,061 ,173 ,4N5 ,6P7

 1
53111-YF010P0

MCX10..CONQ,CSX

DIAMOND SILVER,TRIM1#,4#&3N6 ,3N9 ,6P3 ,6P8 ,8L3 ,8N3

 1
53111-YF010P0

MCX10..CONQ,CSX

DIAMOND SILVER,3N4 ,3N6 ,3N9 ,6P3 ,6P8 ,8L3 ,8N3

 1
53111-YF010P0

MCX10..CONQ,CSX,VXI

DIAMOND SILVER,3N4 ,3N6 ,6P8 ,6R4 ,8N8 ,8P4

 1
53111-YF010P0

MCX10..CONQ,CSX,VXI

DIAMOND SILVER,3N4 ,3N6 ,6P3 ,6P8 ,8L3 ,8N3

 1
53100-YF050

MCX10..CSX,GD,VXI

 1
53111-YF010P1

MCX10..CONQ,CSX,VXI

ASH SILVER,061 ,173 ,4N5 ,583 ,6P7

 1
Common parts
90467-07043C0 None epc.PartDetail.None
90467-09093 None epc.PartDetail.None
Linked diagrams
5302
7501
