Toyota Avalon MCX10 MOUNTING - JDM Part Detective

Part #	Description	Period	Qty
12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING
12307-20021	1MZFE..MCX10	04/2000 - 09/2003	1
12307-20021	1MZFE..MCX10	09/2003 - 12/2999	1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0A030	1MZFE..MCX10	09/2003 - 12/2999	1
12311-0A030	1MZFE..MCX10	04/2000 - 09/2003	1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0A020	1MZFE..MCX10 (L)	09/2003 - 12/2999	1
12313-20020	1MZFE..MCX10 (J)	09/2003 - 12/2999	1
12313-0A020	1MZFE..MCX10 (L)	04/2000 - 09/2003	1
12313-20020	1MZFE..MCX10 (J)	04/2000 - 09/2003	1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-20020	1MZFE..MCX10 (J)	12/2000 - 09/2003	1
12315-20020	1MZFE..MCX10	09/2003 - 12/2999	1
12315-20020	1MZFE..MCX10	04/2000 - 12/2000	1
12315-0A010	1MZFE..MCX10 (L)	12/2000 - 09/2003	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-62020	1MZFE..MCX10	04/2000 - 09/2003	1
12316-62020	1MZFE..MCX10	09/2003 - 12/2999	1
12317 - STAY, ENGINE MOUNTING, RH
12317-20010	1MZFE..MCX10	09/2003 - 12/2999	1
12317-20010	1MZFE..MCX10	04/2000 - 09/2003	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-20020	1MZFE..MCX10	04/2000 - 11/2002	1
12321-0A040	1MZFE..MCX10	11/2002 - 09/2003	1
12321-0A040	1MZFE..MCX10	09/2003 - 12/2999	1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-0A030	1MZFE..MCX10	09/2003 - 12/2999	1
12322-0A020	1MZFE..MCX10	04/2000 - 11/2002	1
12322-20060	1MZFE..MCX10	05/2003 - 09/2003	1
12322-0A030	1MZFE..MCX10	11/2002 - 05/2003	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-20090	1MZFE..MCX10	04/2000 - 09/2003	1
12361-20090	1MZFE..MCX10	09/2003 - 12/2999	1
12363A - ROD, ENGINE MOVING CONTROL
12363-20020	1MZFE..MCX10 (J)	04/2000 - 09/2003	1
12363-0A030	1MZFE..MCX10 (L)	09/2003 - 12/2999	1
12363-0A030	1MZFE..MCX10 (L)	04/2000 - 09/2003	1
12363-20020	1MZFE..MCX10 (J)	09/2003 - 12/2999	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-20030	1MZFE..MCX10	04/2000 - 11/2002	1
12371-0A030	1MZFE..MCX10	11/2002 - 09/2003	1
12371-0A030	1MZFE..MCX10	09/2003 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0A030	1MZFE..MCX10	09/2003 - 12/2999	1
12372-0A030	1MZFE..MCX10	04/2000 - 09/2003	1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-20030	1MZFE..MCX10	04/2000 - 11/2002	1
12380-0A060	1MZFE..MCX10	11/2002 - 09/2003	1
12380-0A060	1MZFE..MCX10	09/2003 - 12/2999	1
12381 - STABILIZER, ENGINE MOUNTING
12381-20010	1MZFE..MCX10	04/2000 - 09/2003	1
12381-20010	1MZFE..MCX10	09/2003 - 12/2999	1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12392-20030	1MZFE..MCX10	11/2002 - 03/2003	1
12392-62010	1MZFE..MCX10	04/2000 - 11/2002	1
12392-20060	1MZFE..MCX10	05/2003 - 09/2003	1
12392-20050	1MZFE..MCX10	03/2003 - 05/2003	1
12392-20030	1MZFE..MCX10	09/2003 - 12/2999	1
12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR
12392-20010	1MZFE..MCX10	04/2000 - 11/2002	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-20020	1MZFE..MCX10	09/2003 - 12/2999	1
12511-20020	1MZFE..MCX10	04/2000 - 09/2003	1
12512A - BRACKET, ALTERNATOR, NO.2
12512-20010	1MZFE..MCX10	04/2000 - 09/2003	1
12512-20010	1MZFE..MCX10	09/2003 - 12/2999	1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-20010	1MZFE..MCX10	04/2000 - 12/2000	1
12514-20010	1MZFE..MCX10	09/2003 - 12/2999	1
12514-0A010	1MZFE..MCX10 (L)	12/2000 - 09/2003	1
12514-20010	1MZFE..MCX10 (J)	12/2000 - 09/2003	1
12514A - SLIDER, FAN BELT ADJUSTING
16385-20010	1MZFE..MCX10	09/2003 - 12/2999	1
16385-20010	1MZFE..MCX10	04/2000 - 09/2003	1
12515 - BOLT, ALTERNATOR THROUGH
12515-20010	1MZFE..MCX10	04/2000 - 09/2003	1
12515-20010	1MZFE..MCX10	09/2003 - 12/2999	1
Common parts
90080-10087
90080-11349
90105-08312
90105-10301
90105-10381
90105-12274
90105-12331
90119-08419
90119-08A12
90119-10599
90119-10709
90119-10766
90119-10792
90119-10820
90126-10011
90179-08153
90179-10145
90179-10147
90179-10176
90250-06003
91511-B0845
91631-B0610
94612-11001

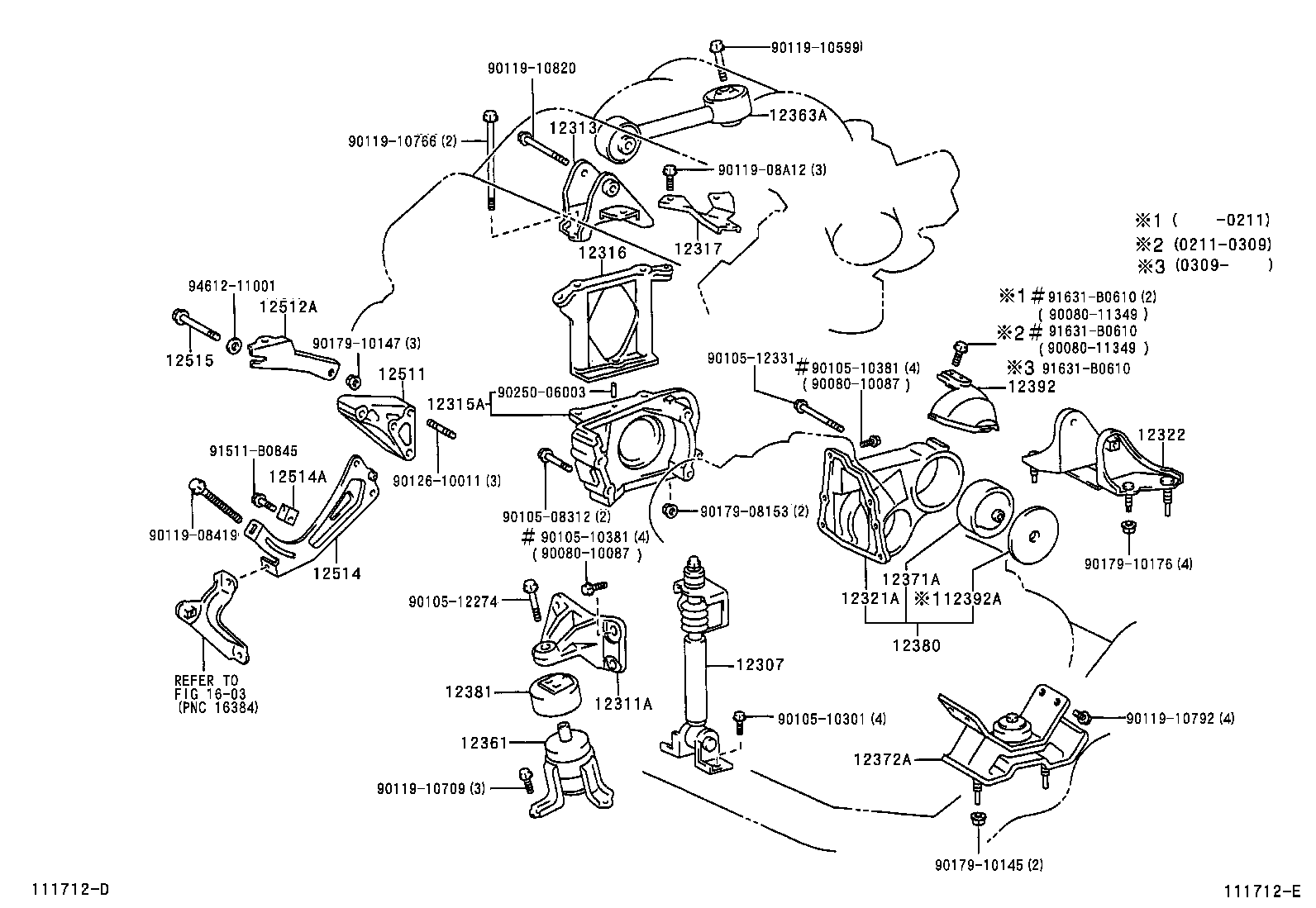

Linked diagrams
1603

MCX10R-BEPFKQ (2000)

(0004- )
