MCX10R-BEPFKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

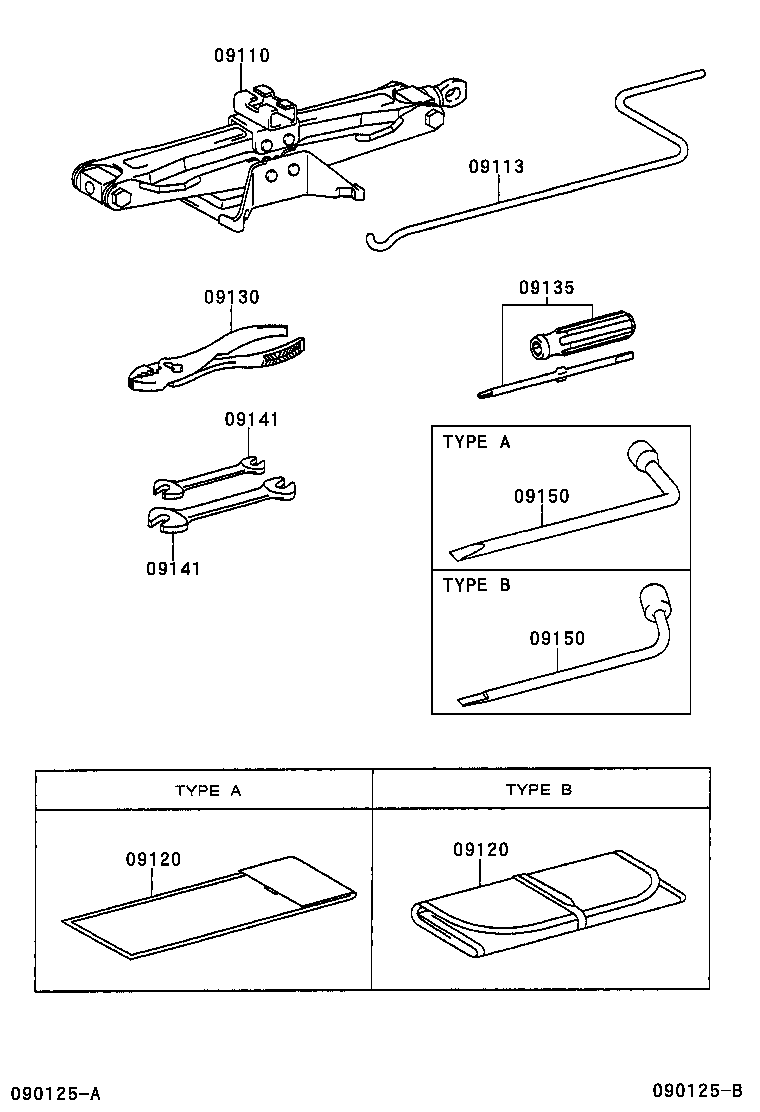

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-22060 |
MCX10 |
1 | ||
| 09111-YC040 |
MCX10 |
1 | ||
| 09111-YC040 |
MCX10 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-YA020 |
MCX10 |
1 | ||
| 09113-YA020 |
MCX10 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-YA020 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09120-YA020 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-YA020 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09120-YA020 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-YA010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09150-40010 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 09150-YA010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-YA010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 09150-40010 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 09150-YA010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
