Toyota Avalon MCX10 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
GR
AVALON
MCX10R-BEPEKQ (2000)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

MCX10R-BEPEKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005

Engine 1MZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(0004-0309)

Click highlighted areas on diagram

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX10	09/2003 - 12/2999	1
90980-04066	MCX10	04/2000 - 09/2003	1
86011C - FILTER, NOISE
90980-04083	MCX10	09/2003 - 12/2999	1
90980-04083	MCX10	04/2000 - 09/2003	1
86011N - FILTER, NOISE
90084-98008	MCX10	04/2000 - 09/2003	1
86011Q - CONDENSER, RADIO SETTING
90089-88002	MCX10	09/2003 - 12/2999	1
90084-98052	MCX10	04/2000 - 09/2003	1
86100 - RADIO ASSY
86100-YF030	MCX10..GD,VXI TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	09/2002 - 09/2003	1
86100-YF030	MCX10..GD TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	04/2000 - 09/2002	1
86100 - RADIO ASSY
86100-YF030	MCX10..GD,VXI TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	09/2002 - 09/2003	1
86100-YF030	MCX10..GD TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	04/2000 - 09/2002	1
86100 - RADIO ASSY
86100-YF030	MCX10..GD,VXI TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	09/2002 - 09/2003	1
86100-YF030	MCX10..GD TYPE B:REFER TO ILLUSTRATION & W(CD AUTO CHANGER)	04/2000 - 09/2002	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86270A - DISC PLAYER ASSY
86270-YF020	MCX10..GD CD AUTO CHANGER	10/2001 - 09/2003	1
86270-YF020	MCX10..GD CD AUTO CHANGER	09/2003 - 06/2005	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-YF020	MCX10..GD W(MULTI AV STATION & NAVIGATION SYSTEM)	10/2001 - 09/2003	1
86280-YF010	MCX10..GD	04/2000 - 09/2003	1
86280-YF040	MCX10..GD	09/2003 - 12/2999	1
Common parts
90119-06390
90153-50012
90159-50238
90179-06159
93560-55010

ILLUST NO. 3 OF 4(0110- )GD

Click highlighted areas on diagram

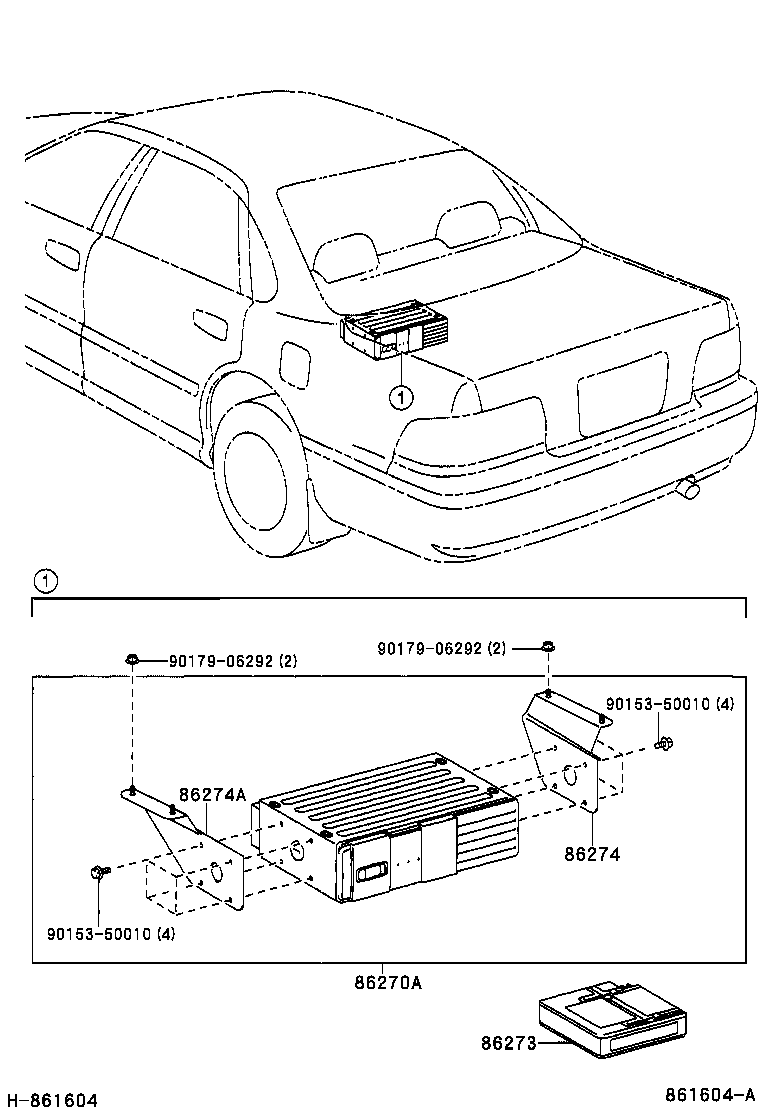

CD AUTO CHANGER

Part #	Description	Period	Qty
86270A - DISC PLAYER ASSY
86270-YF020	MCX10..GD CD AUTO CHANGER	10/2001 - 09/2003	1
86270-YF020	MCX10..GD CD AUTO CHANGER	09/2003 - 06/2005	1
86273 - MAGAZINE, DISC PLAYER
86273-YC030	MCX10..GD	09/2003 - 06/2005	1
86273-YC030	MCX10..GD	10/2001 - 09/2003	1
86274 - BRACKET, DISC PLAYER
86274-YF010	MCX10..GD	09/2003 - 06/2005	1
86274-YF010	MCX10..GD	10/2001 - 09/2003	1
86274A - BRACKET, DISC PLAYER
86274-YF020	MCX10..GD	10/2001 - 09/2003	1
86274-YF020	MCX10..GD	09/2003 - 06/2005	1
Common parts
90153-50010
90179-06292

ILLUST NO. 1 OF 4(0309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-YC260	MCX10..GD,VXI FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION	09/2003 - 10/2004	1
86120-YC310	MCX10..GD,VXI FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION	10/2004 - 12/2999	1
86211 - BRACKET, RADIO, NO.1
86211-YF010	MCX10	04/2000 - 09/2003	1
86211-YF030	MCX10	09/2003 - 12/2999	1
86212 - BRACKET, RADIO, NO.2
86212-YF010	MCX10	04/2000 - 09/2003	1
86212-YF030	MCX10	09/2003 - 12/2999	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-YF020	MCX10..GD W(MULTI AV STATION & NAVIGATION SYSTEM)	10/2001 - 09/2003	1
86280-YF010	MCX10..GD	04/2000 - 09/2003	1
86280-YF040	MCX10..GD	09/2003 - 12/2999	1
Common parts
90159-50238
90179-06159
93249-15008

ILLUST NO. 4 OF 4(0309- )

Click highlighted areas on diagram

CONDENSER & NOISE FILTER

Part #	Description	Period	Qty
86011A - CONDENSER, RADIO SETTING
90980-04066	MCX10	09/2003 - 12/2999	1
90980-04066	MCX10	04/2000 - 09/2003	1
86011C - FILTER, NOISE
90980-04083	MCX10	09/2003 - 12/2999	1
90980-04083	MCX10	04/2000 - 09/2003	1
86011Q - CONDENSER, RADIO SETTING
90089-88002	MCX10	09/2003 - 12/2999	1
90084-98052	MCX10	04/2000 - 09/2003	1
86011R - CONDENSER, RADIO SETTING
90980-04178	MCX10	09/2003 - 12/2999	1
Common parts
90119-06005

ILLUST NO. 2 OF 4(0309- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90011-23010
90011-25120

MCX10R-BEPEKQ (2000)

ILLUST NO. 1 OF 4(0004-0309)

ILLUST NO. 3 OF 4(0110- )GD

ILLUST NO. 1 OF 4(0309- )

ILLUST NO. 4 OF 4(0309- )

ILLUST NO. 2 OF 4(0309- )

Part Price Details
