MCX10R-BEPEKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

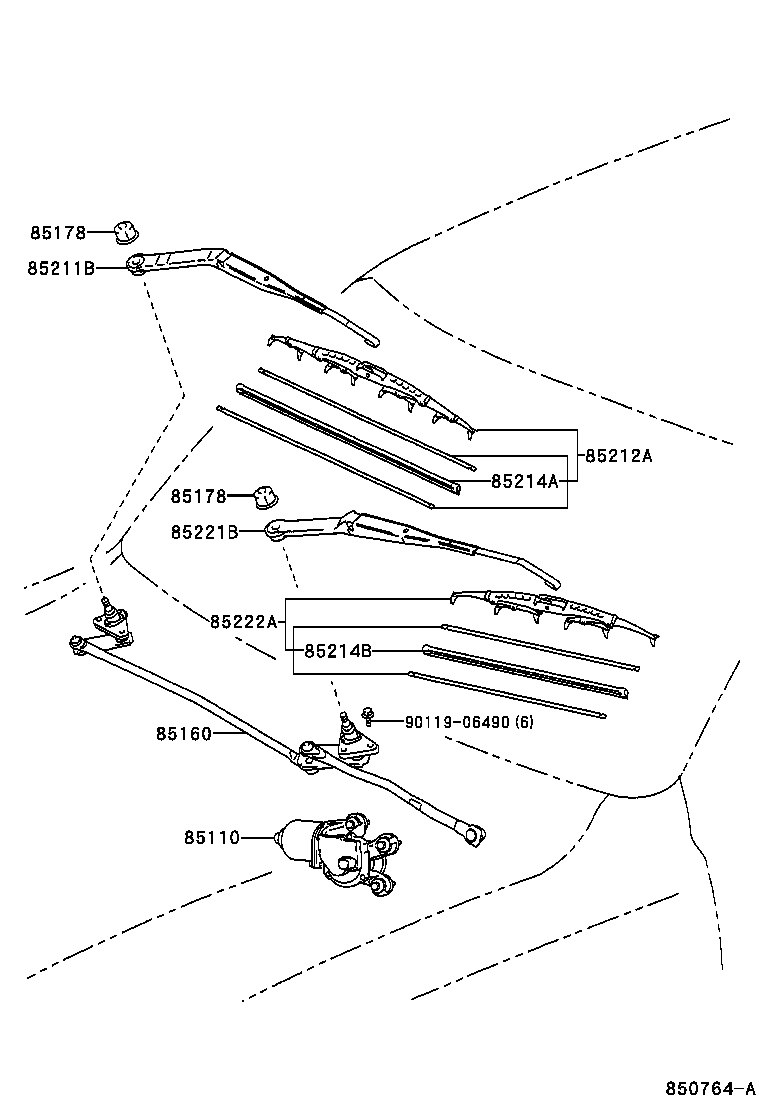

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-41010 |
MCX10 |
1 | ||
| 85110-41010 |
MCX10 |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-YF010 |
MCX10 |
1 | ||
| 85150-YF010 |
MCX10 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
MCX10 |
2 | ||
| 90176-10005 |
MCX10 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-10005 |
MCX10 |
2 | ||
| 90176-10005 |
MCX10 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-YF010 |
MCX10 |
1 | ||
| 85211-YF010 |
MCX10 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-YC030 |
MCX10 |
1 | ||
| 85212-YC030 |
MCX10 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-YC900 |
MCX10 |
1 | ||
| 85214-YC900 |
MCX10 |
1 | ||
| 85214-YC020 |
MCX10 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-YC900 |
MCX10 |
1 | ||
| 85214-YC900 |
MCX10 |
1 | ||
| 85214-YC010 |
MCX10 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-YF010 |
MCX10 |
1 | ||
| 85221-YF010 |
MCX10 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-YC030 |
MCX10 |
1 | ||
| 85222-YC030 |
MCX10 |
1 | ||
| Common parts | ||||
| 90119-06490 | ||||
