MCX10R-BEPEKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

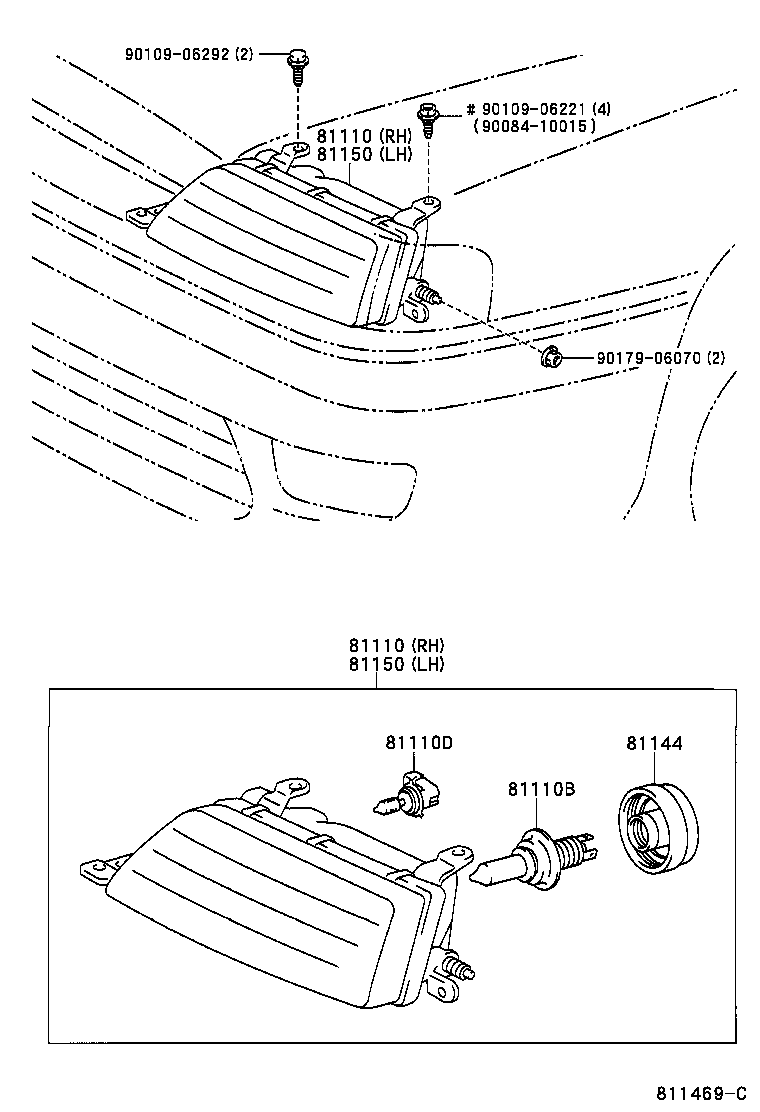

(0004-0309)

Click highlighted areas on diagram

diagram 81110 81110 81110B 81110D 81144 81150 81150 9008410015 9010906221 9010906292 9017906070
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-YF010

MCX10

 1
81110 - HEADLAMP ASSY, RH
81110-YF010

MCX10

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

MCX10

12V 60/55W,*HAL *WH

 2
90981-22004

MCX10

12V 60/55W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-8Y001

MCX10

12V 65W

 2
90080-81041

MCX10

12V 65W

 2
81144 - COVER, HEADLAMP, NO.1
81139-8Y001

MCX10

 2
81150 - HEADLAMP ASSY, LH
81150-YF010

MCX10

 1
81150 - HEADLAMP ASSY, LH
81150-YF010

MCX10

 1
Common parts
90084-10015
90109-06221
90109-06292
90179-06070

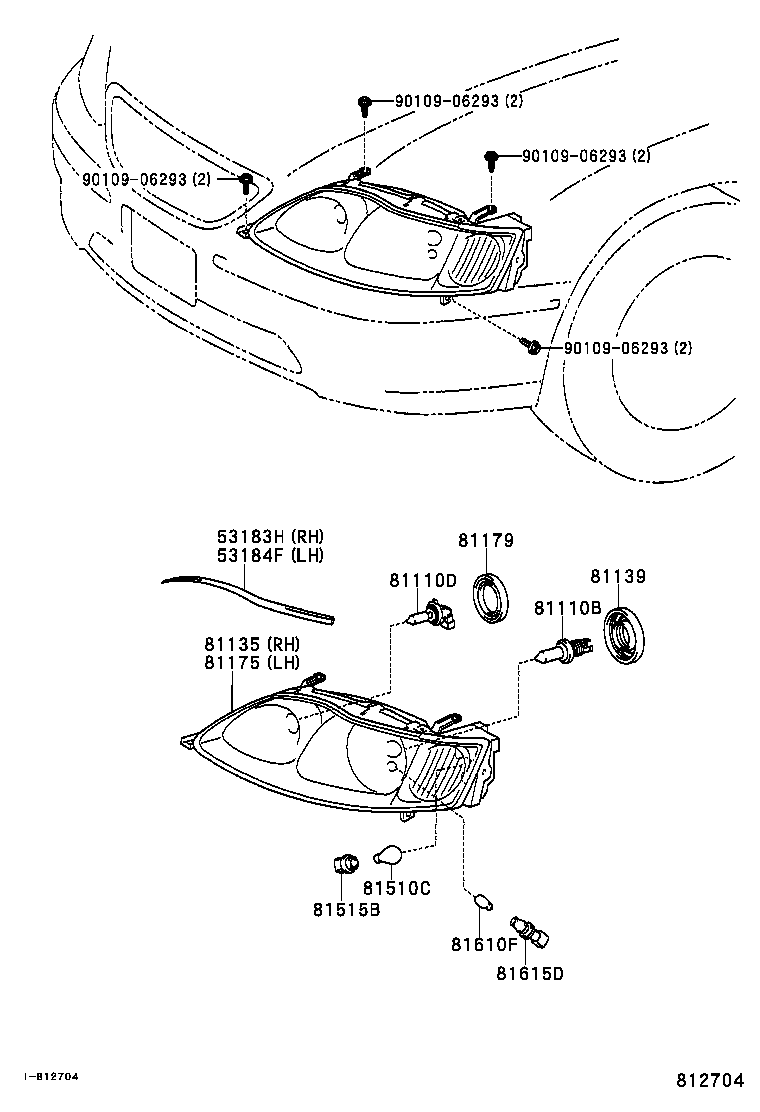

(0309- )

Click highlighted areas on diagram

diagram 53183H 53184F 81110B 81110D 81135 81139 81175 81179 81510C 81515B 81610F 81615D 9010906293 9010906293 9010906293 9010906293
Part # Description Qty Price
53183H - SEAL, HEADLAMP COVER, RH
53183-8Y002

MCX10

 1
53184F - SEAL, HEADLAMP COVER, LH
53184-8Y001

MCX10

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

MCX10

12V 60/55W,*HAL *WH

 2
90981-22004

MCX10

12V 60/55W,*HAL *WH

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-8Y001

MCX10

12V 65W

 2
90080-81041

MCX10

12V 65W

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-8Y001

MCX10

 1
81139 - COVER, HEADLAMP SOCKET
81139-YC090

MCX10

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-8Y001

MCX10

 1
81179 - COVER, HEADLAMP SOCKET
81179-YC090

MCX10

 2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-8Y001

MCX10

12V 21W,YELLOW

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-8Y002

MCX10

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

MCX10

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90069-81043

MCX10

 2
Common parts
90109-06293
