MCX10R-BEPEKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

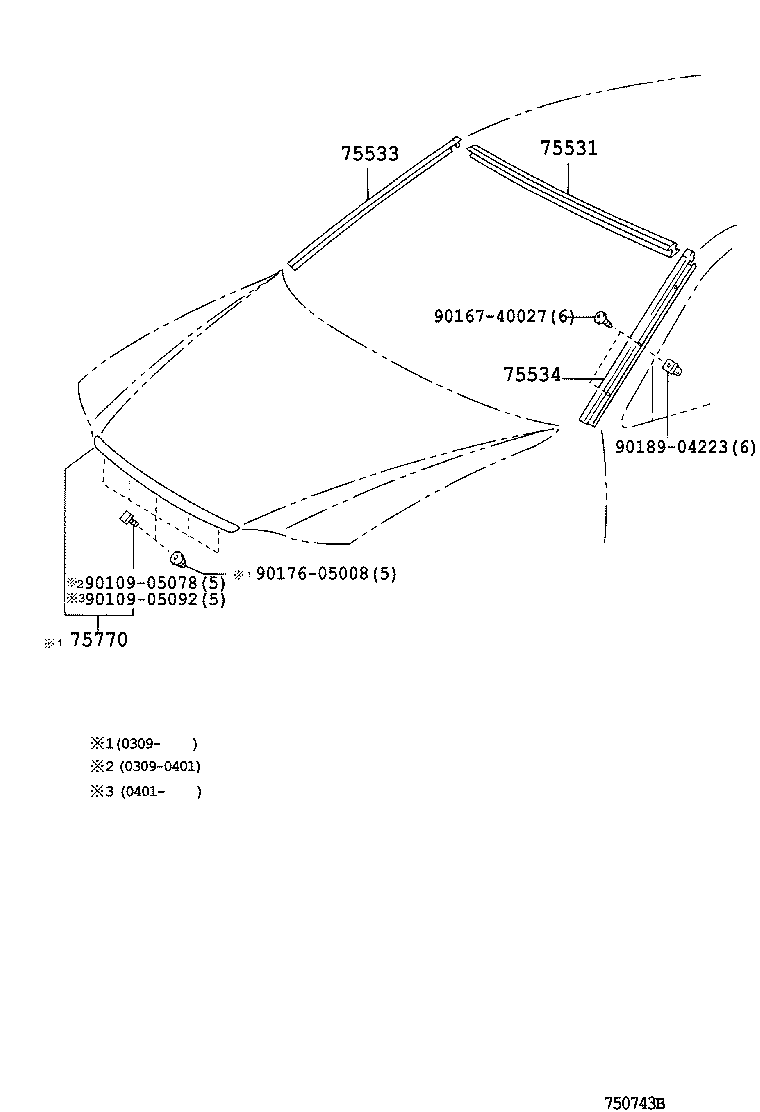

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-07010 |
MCX10 |
1 | ||
| 75531-07010 |
MCX10 |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 76503-07011 |
MCX10 |
1 | ||
| 76503-07011 |
MCX10 |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 76504-07011 |
MCX10 |
1 | ||
| 76504-07011 |
MCX10 |
1 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-YF010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90109-05078 | ||||
| 90109-05092 | ||||
| 90167-40027 | ||||
| 90176-05008 | ||||
| 90189-04223 | ||||
