MCX10R-BEPEKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0004- )

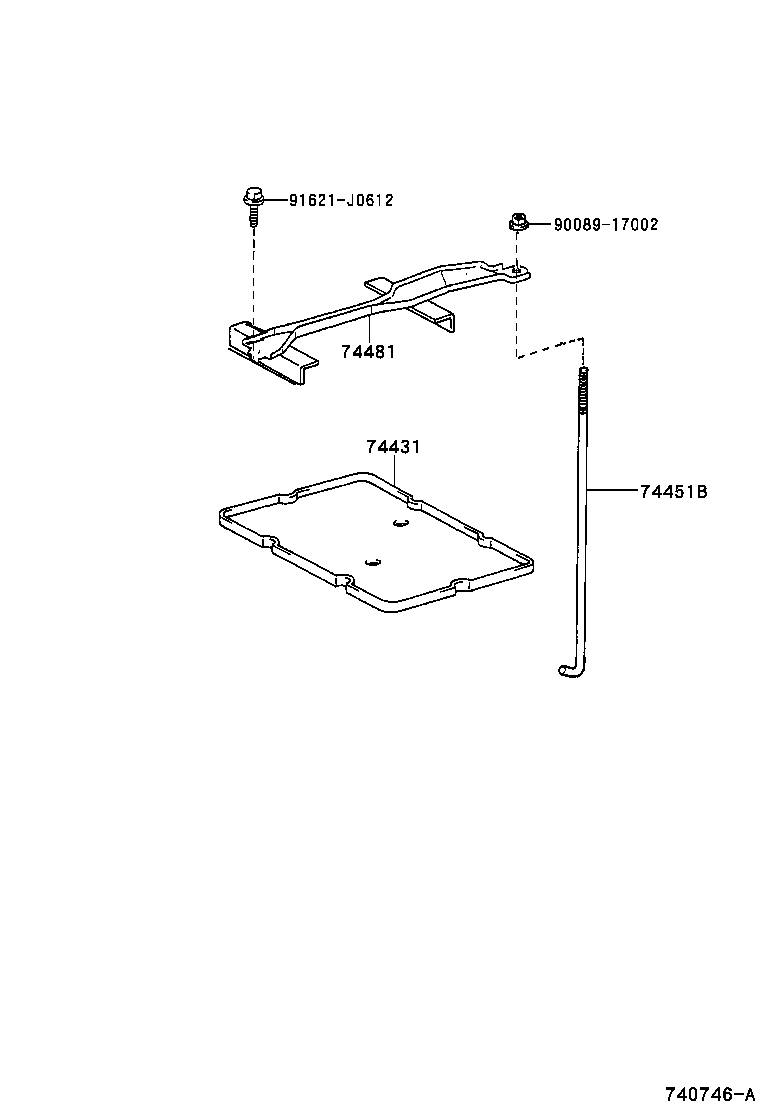

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74431 - TRAY, BATTERY | ||||
| 74431-YC030 |
MCX10 |
1 | ||
| 74431-YC030 |
MCX10 |
1 | ||
| 74451B - BOLT, BATTERY CLAMP | ||||
| 74452-YC020 |
MCX10 |
1 | ||
| 74452-YC020 |
MCX10 |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-YF010 |
MCX10 |
1 | ||
| 74404-YF010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90089-17002 | ||||
| 91621-J0612 | ||||
