MCX10R-BEPEKQ (2000)
Toyota Avalon

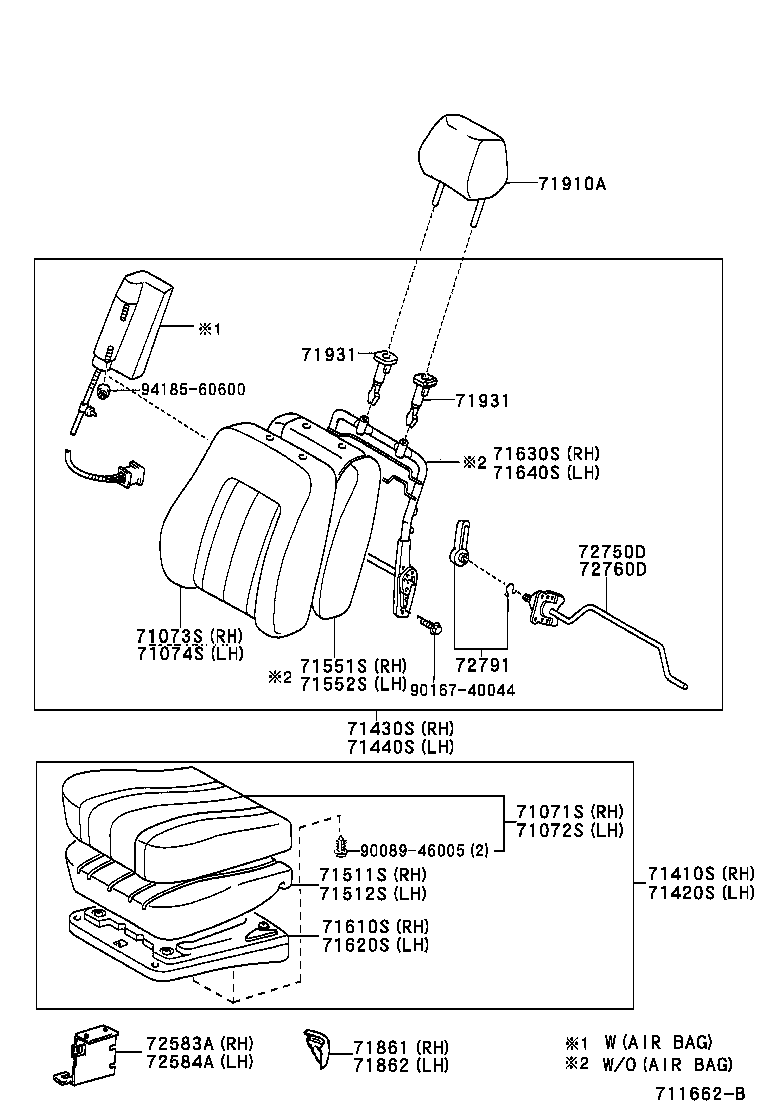

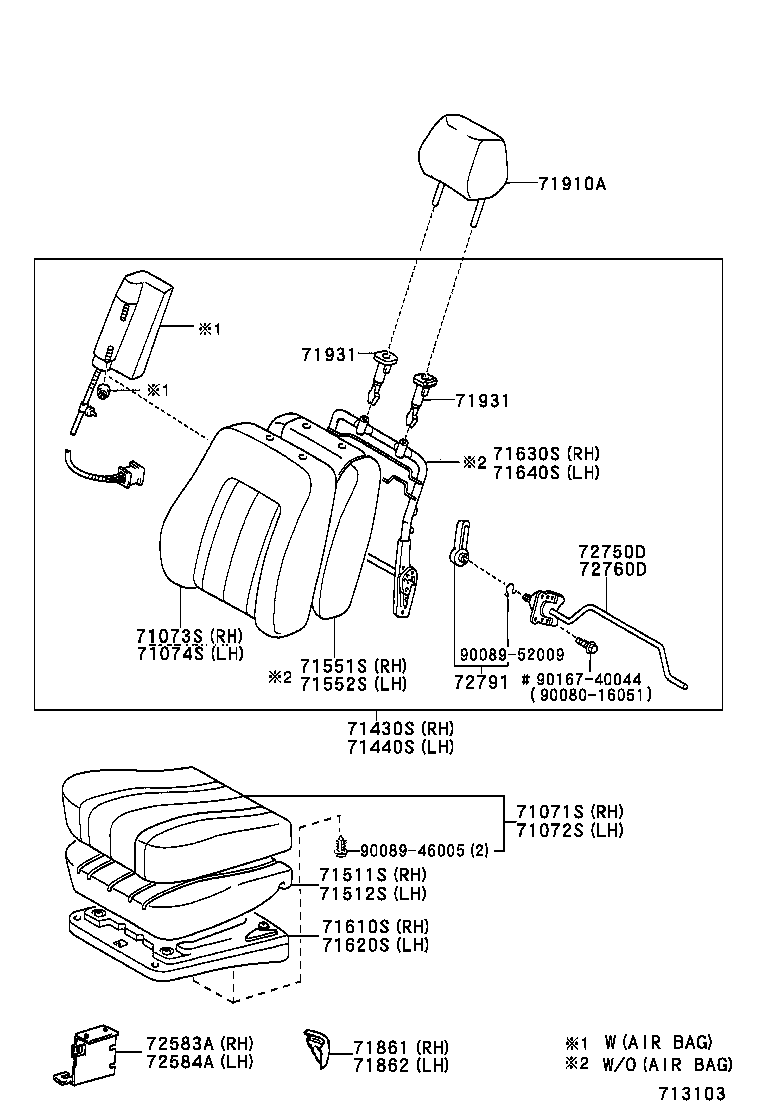

ILLUST NO. 1 OF 2(0004-0309)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YF040E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71071-YF030E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71071-YF080E1 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71071-YF080B1 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71071-YF030B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71071-YF040B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-YF040B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-YF100B1 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71071-YF100E1 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71071-YF040E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-YF040B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-YF040E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF040E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF030E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF080B1 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71072-YF080E1 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71072-YF030B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71072-YF040B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-YF100E1 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71072-YF100B1 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71073-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71073-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71073-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71073-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71074-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71074-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71074-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71074-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71074-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71074-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-YF040B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71410-YF040B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71410-YF030B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71410-YF030E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71410-YF040E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71410-YF040E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71410-YF080B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71410-YF080E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71410-YF070B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71410-YF080E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71410-YF070E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71410-YF080B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71430-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71430-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71430-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71430-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71430-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71430-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71430-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71430-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71430-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71440-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71440-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71440-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71440-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71440-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71440-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-YF010 |
MCX10 |
1 | ||
| 71511-YF010 |
MCX10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-YF010 |
MCX10 |
1 | ||
| 71511-YF010 |
MCX10 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71011-YC040 |
MCX10 |
1 | ||
| 71011-YC040 |
MCX10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71011-YC040 |
MCX10 |
1 | ||
| 71011-YC040 |
MCX10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33020B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71861-33020B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71861-33020E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71861-33020E1 |
MCX10 FAWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33030B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71862-33030E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71862-33030E1 |
MCX10 FAWN,TRIM4# |
1 | ||
| 71862-33030B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-YF040B1 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-YF040E1 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
2 | ||
| 71910-YF040B1 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-YF040E1 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
2 | ||
| 71910-YF080B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71910-YF080E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71910-YF030B2 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-YF100B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
2 | ||
| 71910-YF100E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
2 | ||
| 71910-YF030E2 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020L1 |
MCX10 W(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020L1 |
MCX10..GD,VXI W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-32020L2 |
MCX10..GD,VXI W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020L2 |
MCX10 W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020L1 |
MCX10 W(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020L1 |
MCX10..GD,VXI W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-32020L2 |
MCX10..GD,VXI W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020L2 |
MCX10 W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 72583A - BRACKET, SEAT SIDE GARNISH, RH | ||||
| 72583-33020 |
MCX10..CSX,GD,VXI |
1 | ||
| 72583-33020 |
MCX10..GD,VXI |
1 | ||
| 72584A - BRACKET, SEAT SIDE GARNISH, LH | ||||
| 72584-33010 |
MCX10..GD,VXI |
1 | ||
| 72584-33010 |
MCX10..GD |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33030 |
MCX10..GD,VXI |
1 | ||
| 72750-33030 |
MCX10..GD,VXI |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-YC010 |
MCX10..CSX,GD,VXI |
1 | ||
| 72760-YC010 |
MCX10..CSX,GD,VXI |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-YC010B1 |
MCX10..CONQ,GD,VXI STONE,TRIM1# |
1 | ||
| 72791-YC010E1 |
MCX10..CONQ,GD,VXI FAWN,TRIM4# |
1 | ||
| 72791-YC010B1 |
MCX10..CONQ,GD,VXI STONE,TRIM1# |
1 | ||
| 72791-YC010E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90089-46005 | ||||
| 90167-40044 | ||||
| 94185-60600 | ||||

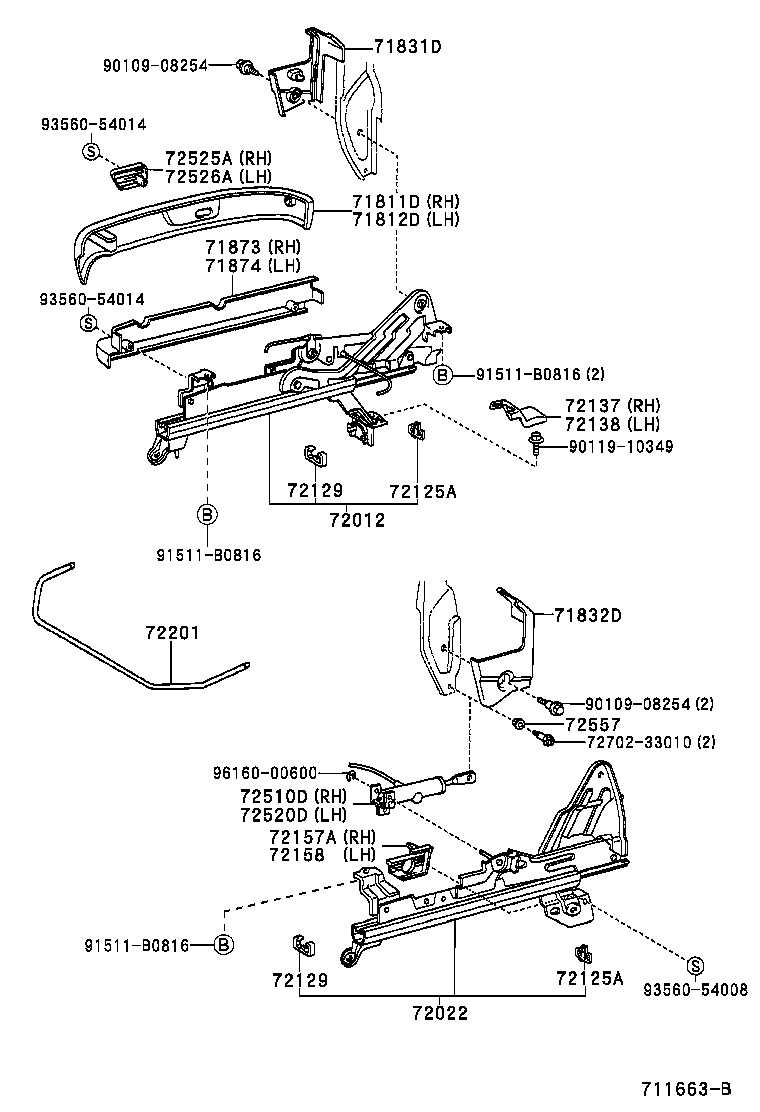

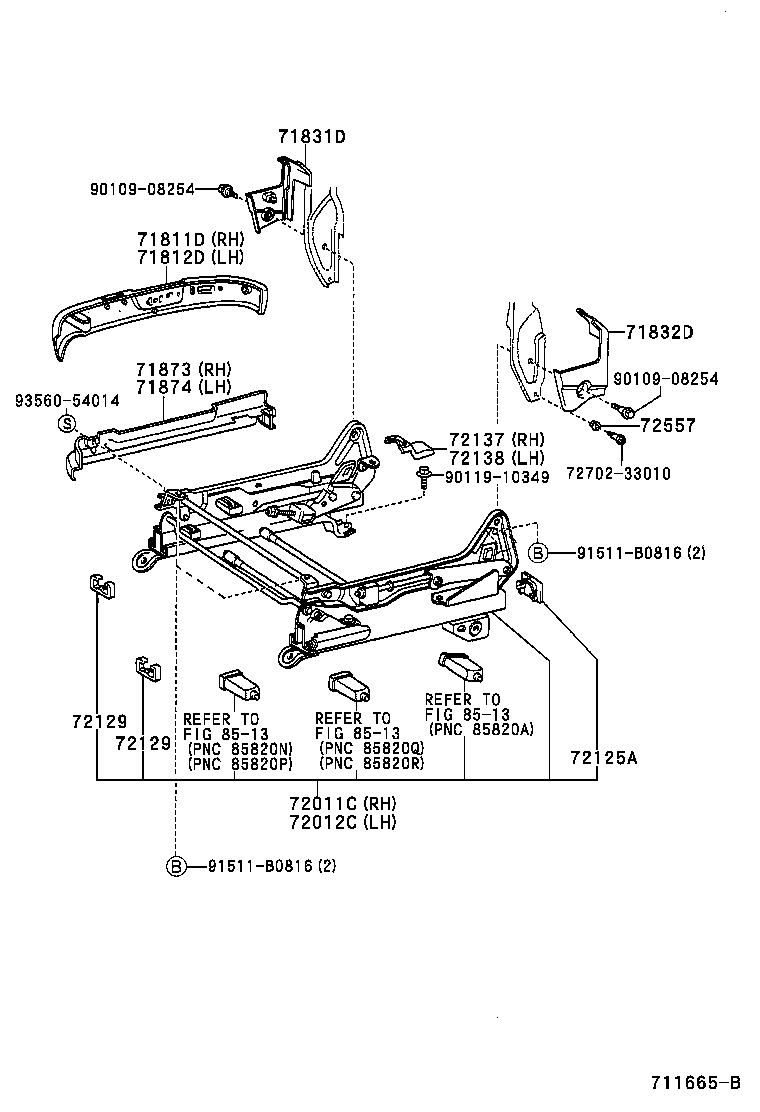

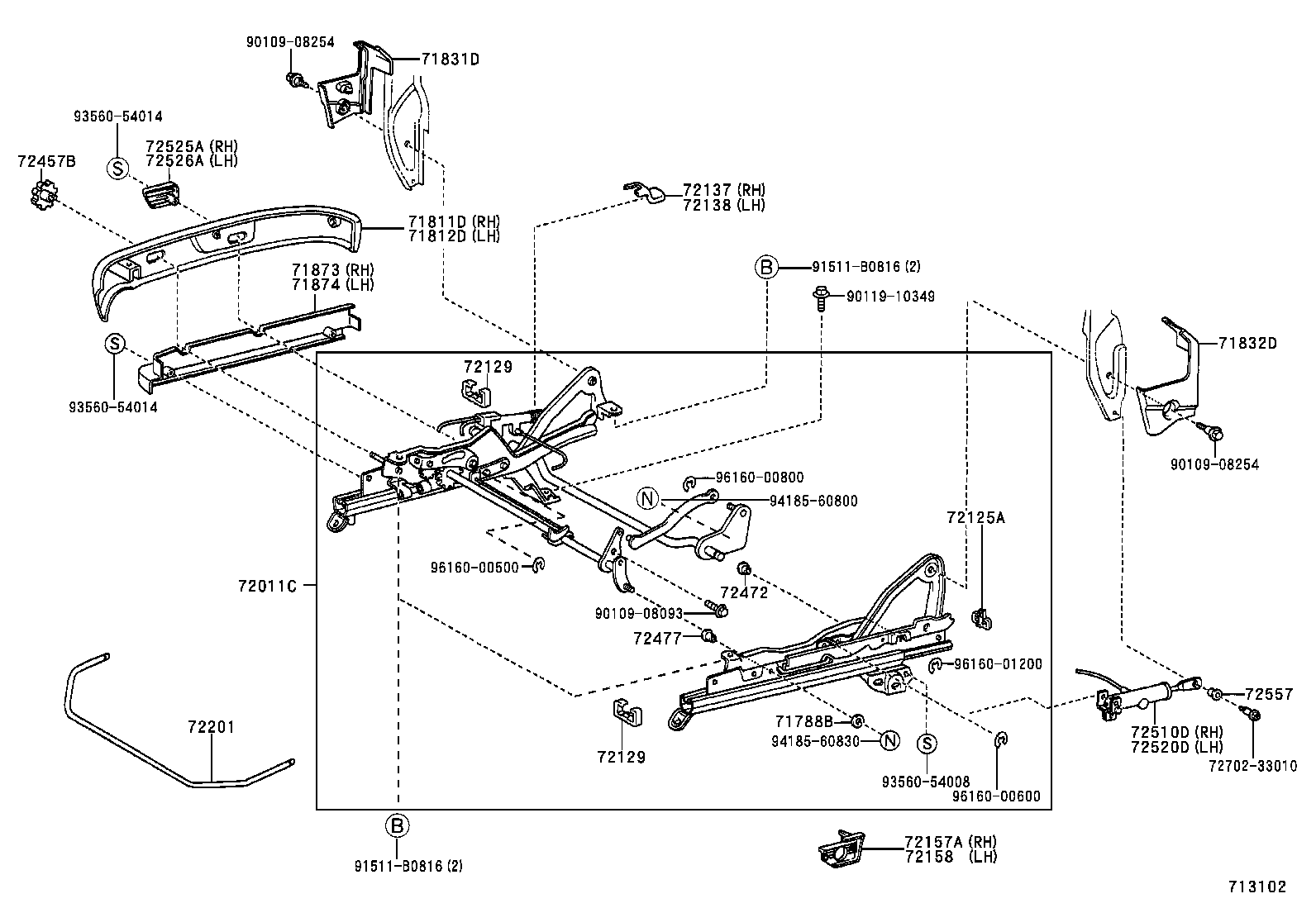

ILLUST NO. 2 OF 2(0004- )
NORMAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33100B0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33100E0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33120E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33120B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-33021 |
MCX10 |
2 | ||
| 71831-YC020 |
MCX10 |
2 | ||
| 71831-33021 |
MCX10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-YC020 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-33010 |
MCX10..GD,VXI |
1 | ||
| 72125-33010 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-33010 |
MCX10..GD,VXI |
1 | ||
| 72125-33010 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72157-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72157-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72157-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72158-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCX10 |
4 | ||
| 72557-33010 |
MCX10 |
4 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 91511-B0816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 96160-00600 | ||||
ILLUST NO. 2 OF 2(0004- )
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33100B0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33100E0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33120E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33120B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-33021 |
MCX10 |
2 | ||
| 71831-YC020 |
MCX10 |
2 | ||
| 71831-33021 |
MCX10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-YC020 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-33051 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72010-33051 |
MCX10..GD,VXI |
1 | ||
| 72010-33050 |
MCX10..GD,VXI |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-33091 |
MCX10..GD |
1 | ||
| 72020-33091 |
MCX10..GD,VXI |
1 | ||
| 72020-33090 |
MCX10..GD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-33010 |
MCX10..GD,VXI |
1 | ||
| 72125-33010 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCX10 |
4 | ||
| 72557-33010 |
MCX10 |
4 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 91511-B0816 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8513 | ||||
ILLUST NO. 2 OF 2(0004- )
6WAY SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33100B0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33060E0 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71811-33060B0 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71811-33100E0 |
MCX10..GD,VXI W(POWER SEAT & *80,SIDE),FAWN,TRIM4# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33120E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33120B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71812-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-33021 |
MCX10 |
2 | ||
| 71831-YC020 |
MCX10 |
2 | ||
| 71831-33021 |
MCX10 |
2 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-YC020 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71832-33021 |
MCX10 |
2 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050B1 |
MCX10..GD,VXI STONE,TRIM1# |
1 | ||
| 71873-33050E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050B1 |
MCX10..GD STONE,TRIM1# |
1 | ||
| 71874-33050E1 |
MCX10..GD FAWN,TRIM4# |
1 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-33051 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72010-33051 |
MCX10..GD,VXI |
1 | ||
| 72010-33050 |
MCX10..GD,VXI |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-33010 |
MCX10..GD,VXI |
1 | ||
| 72125-33010 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-33030 |
MCX10..GD,VXI |
2 | ||
| 72129-33030 |
MCX10..CSX,GD,VXI W(POWER SEAT) |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72137-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72157-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72157-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72157-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158-33020B2 |
MCX10 DK. STONE,TRIM1# |
1 | ||
| 72158-33020E2 |
MCX10..GD,VXI SANDAL WOOD,TRIM4# |
1 | ||
| 72158-33020E2 |
MCX10 SANDAL WOOD,TRIM4# |
1 | ||
| 72557 - SPACER, RECLINING ADJUSTER | ||||
| 72557-33010 |
MCX10 |
4 | ||
| 72557-33010 |
MCX10 |
4 | ||
| Common parts | ||||
| 72702-33010 | ||||
| 90109-08093 | ||||
| 90109-08254 | ||||
| 90119-10349 | ||||
| 91511-B0816 | ||||
| 93560-54008 | ||||
| 93560-54014 | ||||
| 94185-60800 | ||||
| 94185-60830 | ||||
| 96160-00500 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
ILLUST NO. 1 OF 2(0309- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-YF040E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71071-YF030E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71071-YF080E1 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71071-YF080B1 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71071-YF030B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71071-YF040B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-YF040B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71071-YF100B1 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71071-YF100E1 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71071-YF040E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-YF040B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-YF040E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF040E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF030E0 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71072-YF080B1 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71072-YF080E1 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71072-YF030B0 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71072-YF040B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71072-YF100E1 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71072-YF100B1 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71073-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71073-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71073-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71073-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71073-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71073-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71074-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71074-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71074-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71074-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71074-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71074-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71074-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71430-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71430-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71430-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71430-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71430-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71430-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71430-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71430-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71430-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-YF070E0 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF070B0 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71440-YF060E0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF060B0 |
MCX10..GD,VXI W(SIDE AIR BAG) & SEAT = TYPE C-*104,STONE,TRIM1# |
1 | ||
| 71440-YF070B0 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
1 | ||
| 71440-YF070E0 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
1 | ||
| 71440-YF130B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71440-YF170E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
1 | ||
| 71440-YF170B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
1 | ||
| 71440-YF130E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-YF010 |
MCX10 |
1 | ||
| 71511-YF010 |
MCX10 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-YF010 |
MCX10 |
1 | ||
| 71511-YF010 |
MCX10 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71011-YC040 |
MCX10 |
1 | ||
| 71011-YC040 |
MCX10 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71011-YC040 |
MCX10 |
1 | ||
| 71011-YC040 |
MCX10 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-33020B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71861-33020B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71861-33020E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71861-33020E1 |
MCX10 FAWN,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-33030B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71862-33030E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| 71862-33030E1 |
MCX10 FAWN,TRIM4# |
1 | ||
| 71862-33030B1 |
MCX10 STONE,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-YF040B1 |
MCX10..GD SEAT = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-YF040E1 |
MCX10..GD SEAT = TYPE D-*104,FAWN,TRIM4# |
2 | ||
| 71910-YF040B1 |
MCX10..GD,VXI SEAT = TYPE D-*104,STONE,TRIM1# |
2 | ||
| 71910-YF040E1 |
MCX10..GD,VXI SEAT = TYPE D-*104,FAWN,TRIM4# |
2 | ||
| 71910-YF080B0 |
MCX10..GD LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71910-YF080E0 |
MCX10..GD LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71910-YF030B2 |
MCX10..GD,VXI SEAT = TYPE C-*104,STONE,TRIM1# |
2 | ||
| 71910-YF100B0 |
MCX10..GD,VXI FABRIC SEAT,STONE,TRIM1# |
2 | ||
| 71910-YF100E0 |
MCX10..GD,VXI FABRIC SEAT,FAWN,TRIM4# |
2 | ||
| 71910-YF030E2 |
MCX10..GD,VXI SEAT = TYPE C-*104,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020L1 |
MCX10 W(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020L1 |
MCX10..GD,VXI W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-32020L2 |
MCX10..GD,VXI W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020L2 |
MCX10 W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020L1 |
MCX10 W(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020L1 |
MCX10..GD,VXI W(LOCK),FAWN,TRIM4# |
2 | ||
| 71931-32020L2 |
MCX10..GD,VXI W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71930-32020P3 |
MCX10 W(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020P8 |
MCX10 W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931-32020L2 |
MCX10 W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 72583A - BRACKET, SEAT SIDE GARNISH, RH | ||||
| 72583-33020 |
MCX10..CSX,GD,VXI |
1 | ||
| 72583-33020 |
MCX10..GD,VXI |
1 | ||
| 72584A - BRACKET, SEAT SIDE GARNISH, LH | ||||
| 72584-33010 |
MCX10..GD,VXI |
1 | ||
| 72584-33010 |
MCX10..GD |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-33030 |
MCX10..GD,VXI |
1 | ||
| 72750-33030 |
MCX10..GD,VXI |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-YC010 |
MCX10..CSX,GD,VXI |
1 | ||
| 72760-YC010 |
MCX10..CSX,GD,VXI |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-YC010B1 |
MCX10..CONQ,GD,VXI STONE,TRIM1# |
1 | ||
| 72791-YC010E1 |
MCX10..CONQ,GD,VXI FAWN,TRIM4# |
1 | ||
| 72791-YC010B1 |
MCX10..CONQ,GD,VXI STONE,TRIM1# |
1 | ||
| 72791-YC010E1 |
MCX10..GD,VXI FAWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-16051 | ||||
| 90089-46005 | ||||
| 90089-52009 | ||||
| 90167-40044 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
