MCX10R-BEPEKQ (2000)
Toyota Avalon
Production
Apr 2000
-
Jun 2005
Engine
1MZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

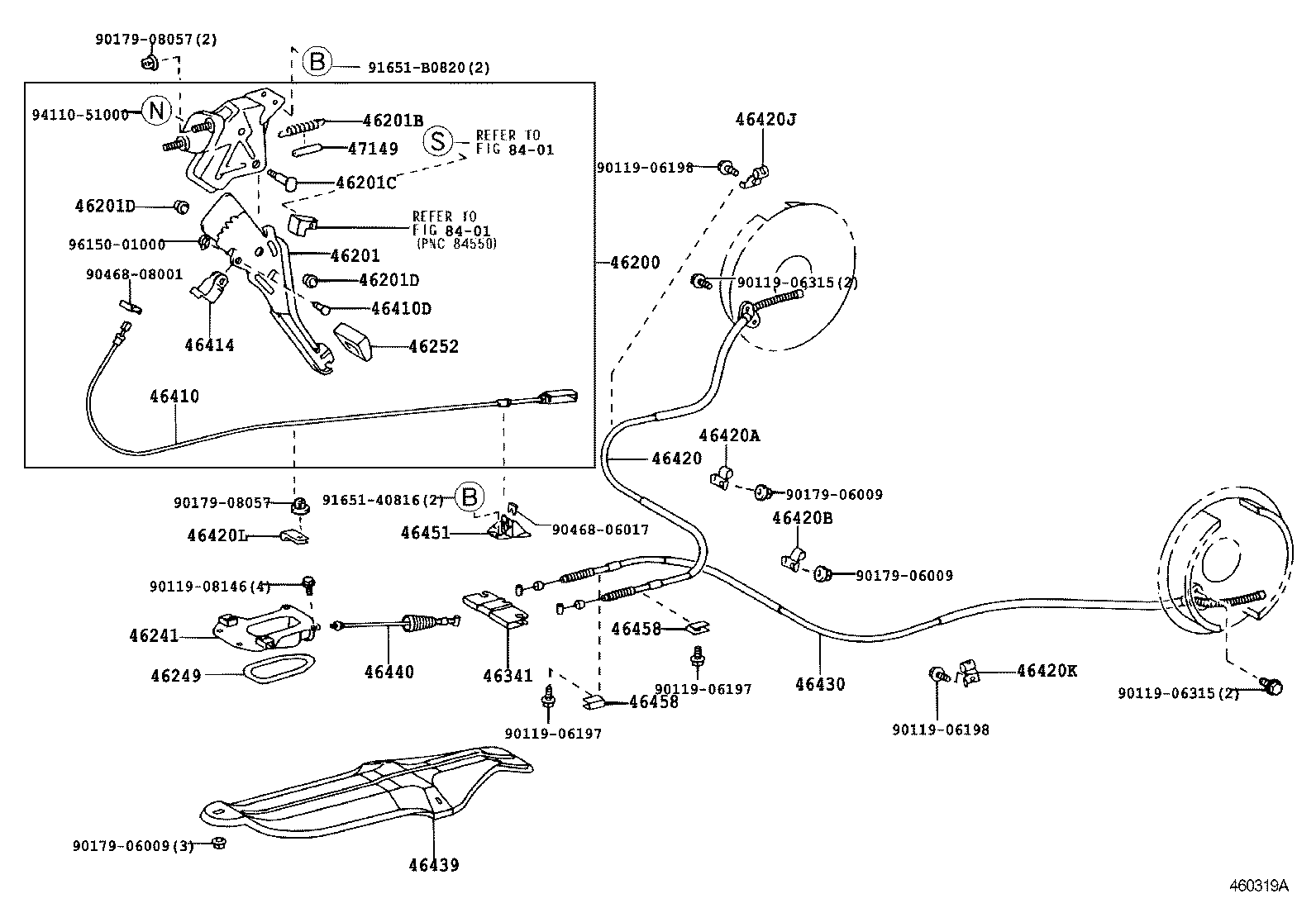

ILLUST NO. 1 OF 2(0004-0202)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-33030 |
MCX10 |
1 | ||
| 46200-33030 |
MCX10 |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-33100 |
MCX10 |
1 | ||
| 46210-33100 |
MCX10 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-19004 |
MCX10 |
1 | ||
| 90506-19004 |
MCX10 |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
MCX10 |
1 | ||
| 90109-10033 |
MCX10 |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MCX10 |
2 | ||
| 90386-16022 |
MCX10 |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MCX10 |
2 | ||
| 90386-16022 |
MCX10 |
2 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-33040 |
MCX10 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32020 |
MCX10 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-33010 |
MCX10 |
1 | ||
| 46252-33010 |
MCX10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-06020 |
MCX10 |
1 | ||
| 46341-33010 |
MCX10 |
1 | ||
| 46341-06020 |
MCX10 |
1 | ||
| 46341-20070 |
MCX10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-33090 |
MCX10 |
1 | ||
| 46410-33090 |
MCX10 |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10200 |
MCX10 |
1 | ||
| 90249-10200 |
MCX10 |
1 | ||
| 46414 - CLEVIS, PARKING CABLE | ||||
| 46414-33010 |
MCX10 |
1 | ||
| 46414-33010 |
MCX10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-41010 |
MCX10 |
1 | ||
| 46420-41011 |
MCX10 |
1 | ||
| 46420-06070 |
MCX10 |
1 | ||
| 46420-33120 |
MCX10 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01663 |
MCX10 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01B08 |
MCX10 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C61 |
MCX10 |
1 | ||
| 90949-01A66 |
MCX10 |
1 | ||
| 90949-01C61 |
MCX10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C62 |
MCX10 |
1 | ||
| 90949-01A67 |
MCX10 |
1 | ||
| 90949-01C62 |
MCX10 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A68 |
MCX10 |
1 | ||
| 90949-01A68 |
MCX10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06070 |
MCX10 |
1 | ||
| 46430-41010 |
MCX10 |
1 | ||
| 46430-41011 |
MCX10 |
1 | ||
| 46430-33120 |
MCX10 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-YC010 |
MCX10 |
1 | ||
| 46439-YC010 |
MCX10 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-41010 |
MCX10 |
1 | ||
| 46440-41020 |
MCX10 |
1 | ||
| 46440-41020 |
MCX10 |
1 | ||
| 46440-33020 |
MCX10 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33040 |
MCX10 |
1 | ||
| 46451-33040 |
MCX10 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCX10 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCX10 |
2 | ||
| 47149 - DAMPER, RETURN SPRING | ||||
| 47149-22040 |
MCX10 |
1 | ||
| 47149-22040 |
MCX10 |
1 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-08146 | ||||
| 90179-06009 | ||||
| 90179-08057 | ||||
| 90468-06017 | ||||
| 90468-08001 | ||||
| 91651-40816 | ||||
| 91651-B0820 | ||||
| 94110-51000 | ||||
| 96150-01000 | ||||
| Linked diagrams | ||||
| 8401 | ||||

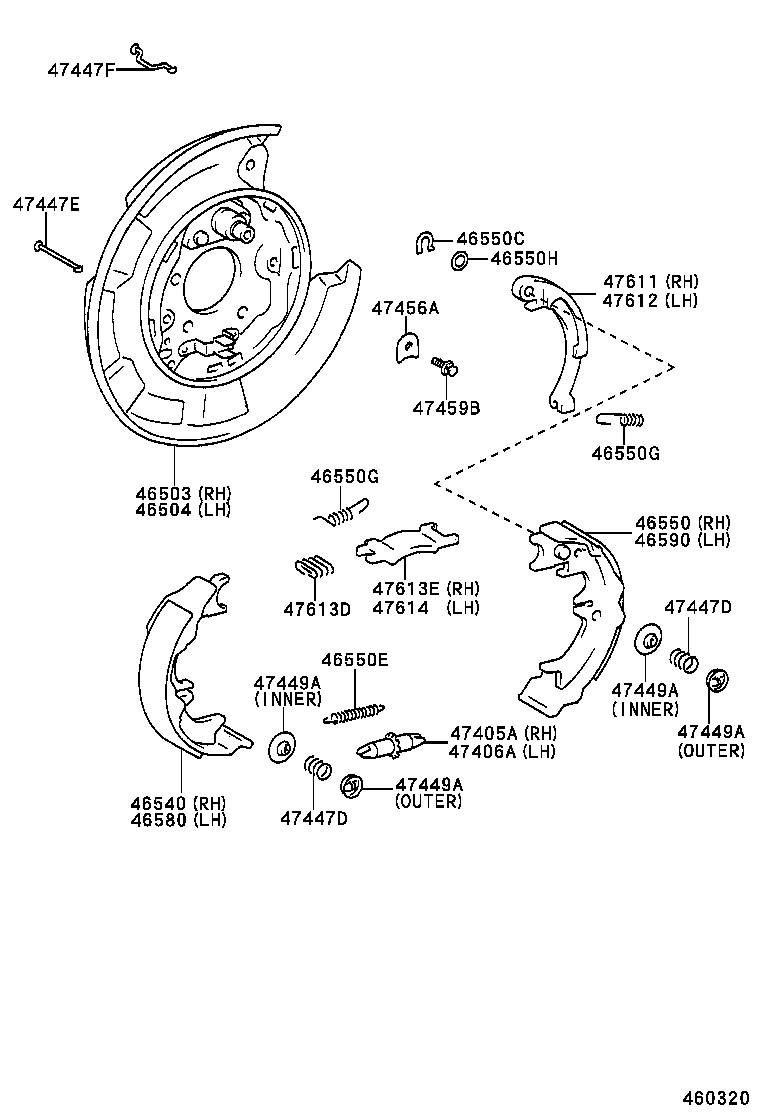

ILLUST NO. 2 OF 2(0004-0309)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-33010 |
MCX10 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-33010 |
MCX10 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20060 |
MCX10 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20060 |
MCX10 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
MCX10 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
MCX10 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCX10 |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCX10 |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
MCX10 T=0.9 |
2 | ||
| 90564-09185 |
MCX10 T=0.6 |
2 | ||
| 90564-09184 |
MCX10 T=0.3 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20060 |
MCX10 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20060 |
MCX10 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MCX10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MCX10 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCX10 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCX10 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
MCX10 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
MCX10 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCX10 INNER |
4 | ||
| 47449-30030 |
MCX10 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCX10 INNER |
4 | ||
| 47449-30030 |
MCX10 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCX10 INNER |
4 | ||
| 47449-30030 |
MCX10 OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCX10 INNER |
4 | ||
| 47449-30030 |
MCX10 OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
MCX10 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MCX10 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
MCX10 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
MCX10 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
MCX10 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
MCX10 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
MCX10 |
1 | ||

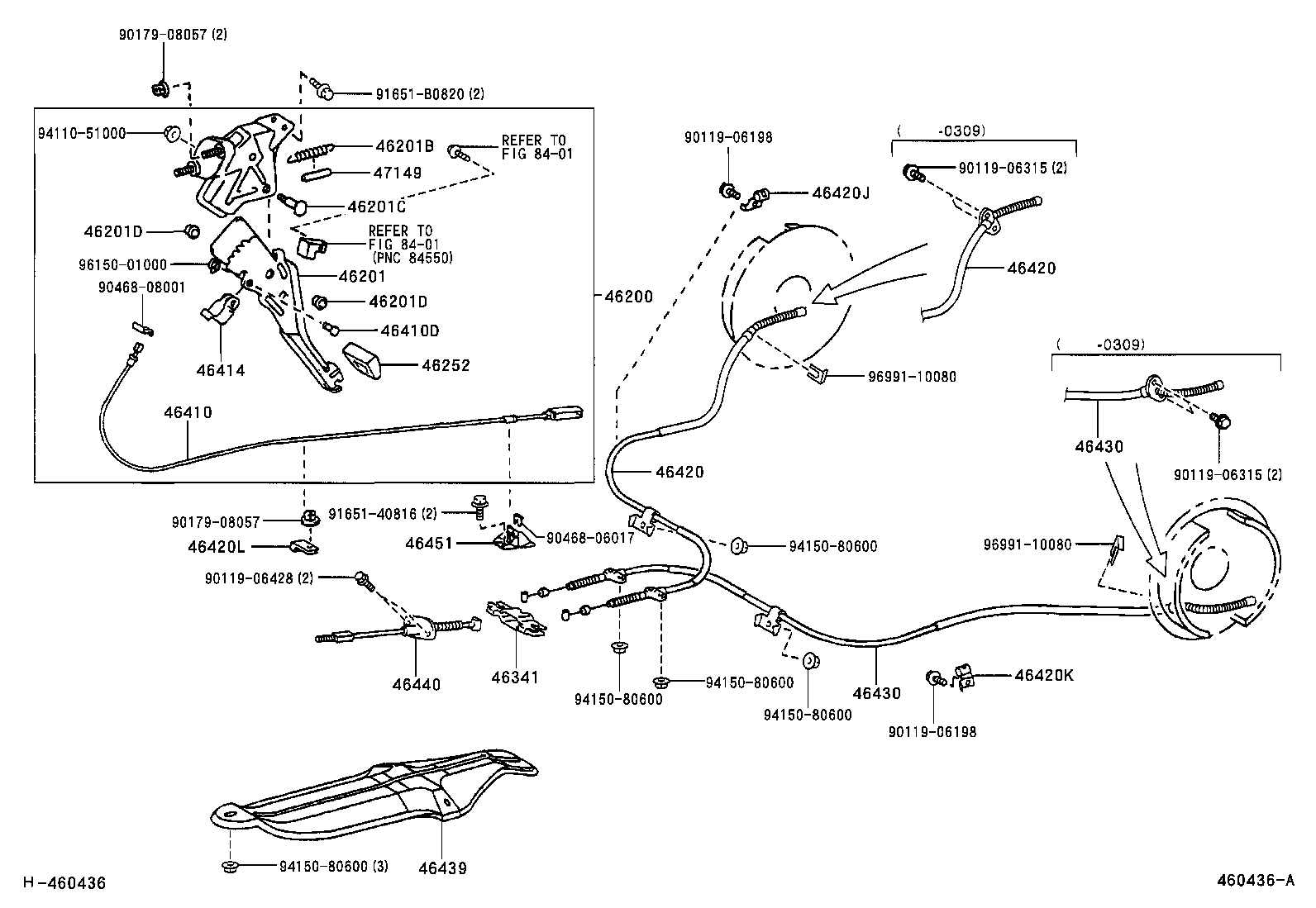

ILLUST NO. 1 OF 2(0202- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-33030 |
MCX10 |
1 | ||
| 46200-33030 |
MCX10 |
1 | ||
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46210-33100 |
MCX10 |
1 | ||
| 46210-33100 |
MCX10 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90506-19004 |
MCX10 |
1 | ||
| 90506-19004 |
MCX10 |
1 | ||
| 46201C - SHAFT, PEDAL | ||||
| 90109-10033 |
MCX10 |
1 | ||
| 90109-10033 |
MCX10 |
1 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MCX10 |
2 | ||
| 90386-16022 |
MCX10 |
2 | ||
| 46201D - BUSH(FOR PARKING BRAKE PEDAL) | ||||
| 90386-16022 |
MCX10 |
2 | ||
| 90386-16022 |
MCX10 |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-33010 |
MCX10 |
1 | ||
| 46252-33010 |
MCX10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-06020 |
MCX10 |
1 | ||
| 46341-33010 |
MCX10 |
1 | ||
| 46341-06020 |
MCX10 |
1 | ||
| 46341-20070 |
MCX10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-33090 |
MCX10 |
1 | ||
| 46410-33090 |
MCX10 |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90249-10200 |
MCX10 |
1 | ||
| 90249-10200 |
MCX10 |
1 | ||
| 46414 - CLEVIS, PARKING CABLE | ||||
| 46414-33010 |
MCX10 |
1 | ||
| 46414-33010 |
MCX10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-41010 |
MCX10 |
1 | ||
| 46420-41011 |
MCX10 |
1 | ||
| 46420-06070 |
MCX10 |
1 | ||
| 46420-33120 |
MCX10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-41010 |
MCX10 |
1 | ||
| 46420-41011 |
MCX10 |
1 | ||
| 46420-06070 |
MCX10 |
1 | ||
| 46420-33120 |
MCX10 |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C61 |
MCX10 |
1 | ||
| 90949-01A66 |
MCX10 |
1 | ||
| 90949-01C61 |
MCX10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C62 |
MCX10 |
1 | ||
| 90949-01A67 |
MCX10 |
1 | ||
| 90949-01C62 |
MCX10 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A68 |
MCX10 |
1 | ||
| 90949-01A68 |
MCX10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06070 |
MCX10 |
1 | ||
| 46430-41010 |
MCX10 |
1 | ||
| 46430-41011 |
MCX10 |
1 | ||
| 46430-33120 |
MCX10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06070 |
MCX10 |
1 | ||
| 46430-41010 |
MCX10 |
1 | ||
| 46430-41011 |
MCX10 |
1 | ||
| 46430-33120 |
MCX10 |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-YC010 |
MCX10 |
1 | ||
| 46439-YC010 |
MCX10 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-41010 |
MCX10 |
1 | ||
| 46440-41020 |
MCX10 |
1 | ||
| 46440-41020 |
MCX10 |
1 | ||
| 46440-33020 |
MCX10 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33040 |
MCX10 |
1 | ||
| 46451-33040 |
MCX10 |
1 | ||
| 47149 - DAMPER, RETURN SPRING | ||||
| 47149-22040 |
MCX10 |
1 | ||
| 47149-22040 |
MCX10 |
1 | ||
| Common parts | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90119-06428 | ||||
| 90179-08057 | ||||
| 90468-06017 | ||||
| 90468-08001 | ||||
| 91651-40816 | ||||
| 91651-B0820 | ||||
| 94110-51000 | ||||
| 94150-80600 | ||||
| 96150-01000 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 8401 | ||||

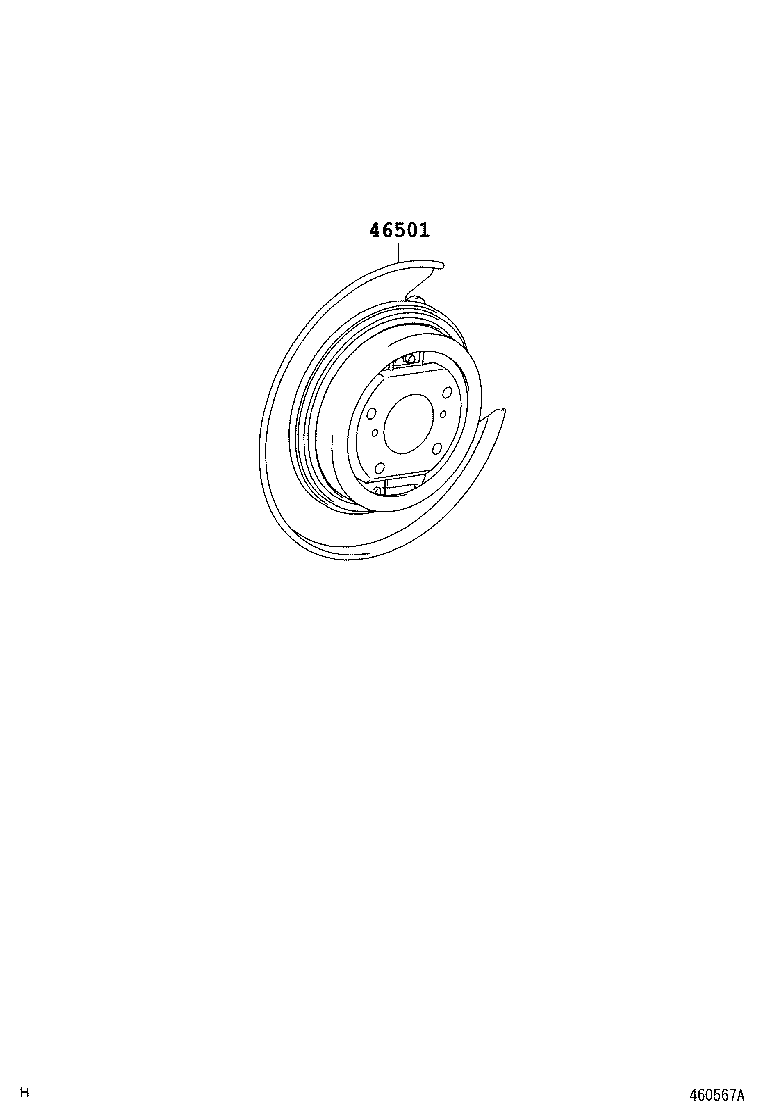

ILLUST NO. 2 OF 2(0309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46510-06020 |
MCX10 RH |
1 | ||
| 46520-06020 |
MCX10 LH |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
