MCX10R-BEPDKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

Click highlighted areas on diagram

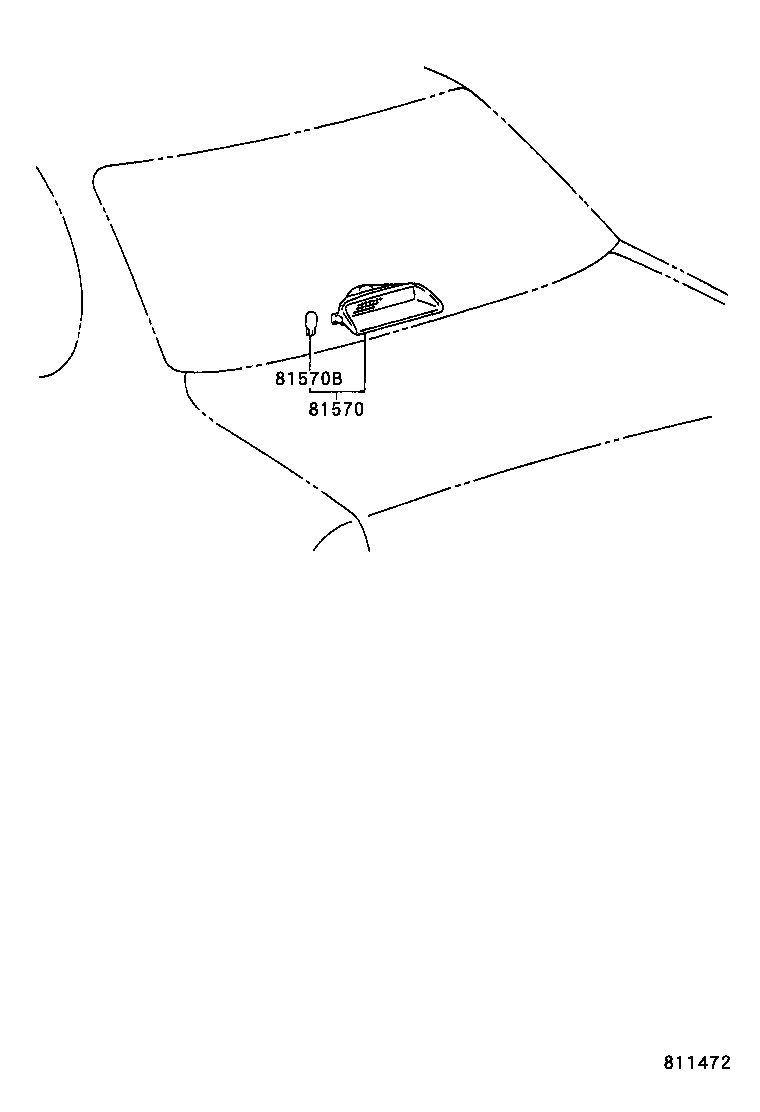

TYPE B

diagram 81570 81570B
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-YC010B1

MCX10..CONQ,CSX,VXI

TYPE A:REFER TO ILLUSTRATION,DK. STONE,TRIM1#

 1
81570-YC010E1

MCX10..CONQ,CSX,VXI

TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#

 1
81570-YC010B1

MCX10

TYPE A:REFER TO ILLUSTRATION,DK. STONE,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

MCX10..CONQ,CSX,VXI

12V 21W,TYPE A:REFER TO ILLUSTRATION

 1
90981-13043

MCX10

12V 21W,TYPE A:REFER TO ILLUSTRATION

 1

(0004- )

Click highlighted areas on diagram

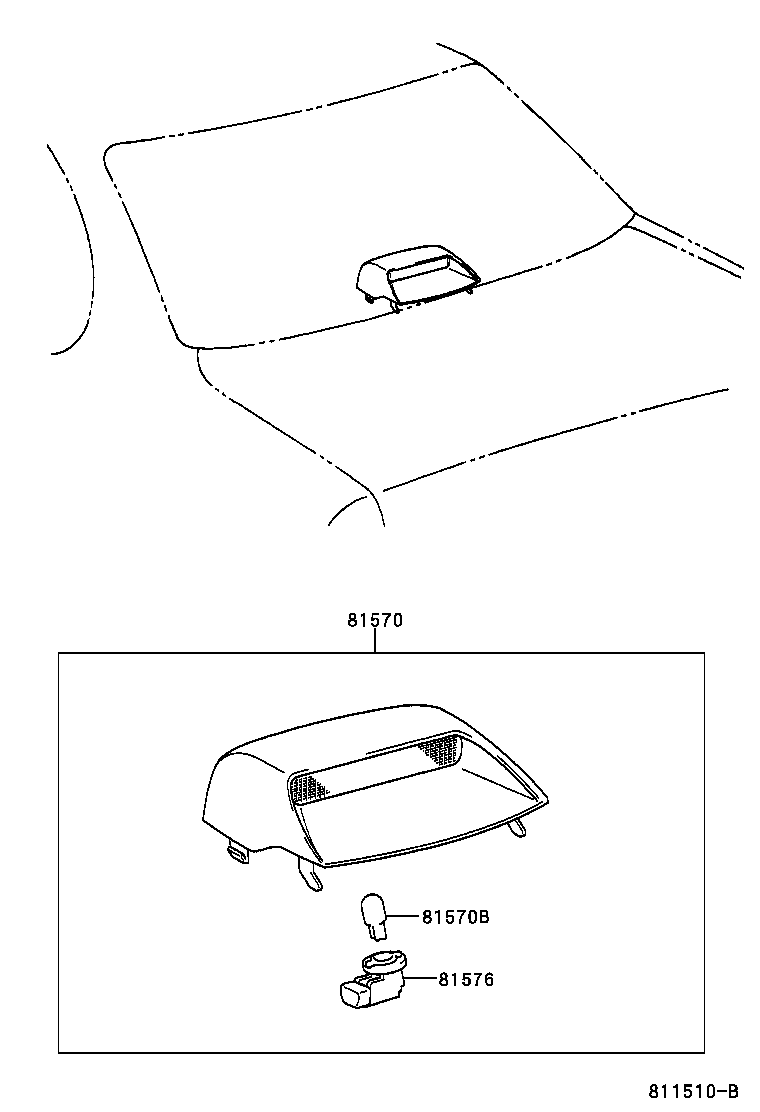

TYPE A

diagram 81570 81570B 81576
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-YC010B1

MCX10..CONQ,CSX,VXI

TYPE A:REFER TO ILLUSTRATION,DK. STONE,TRIM1#

 1
81570-YC010E1

MCX10..CONQ,CSX,VXI

TYPE A:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM4#

 1
81570-YC010B1

MCX10

TYPE A:REFER TO ILLUSTRATION,DK. STONE,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-13043

MCX10..CONQ,CSX,VXI

12V 21W,TYPE A:REFER TO ILLUSTRATION

 1
90981-13043

MCX10

12V 21W,TYPE A:REFER TO ILLUSTRATION

 1
81576 - SOCKET & WIRE, CENTER STOP LAMP
81576-8Y001

MCX10..CONQ,CSX,VXI

 1
81576-8Y001

MCX10

 1
