MCX10R-BEPDKQ (2000)

Toyota Avalon

Production Apr 2000 - Jun 2005
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0004- )

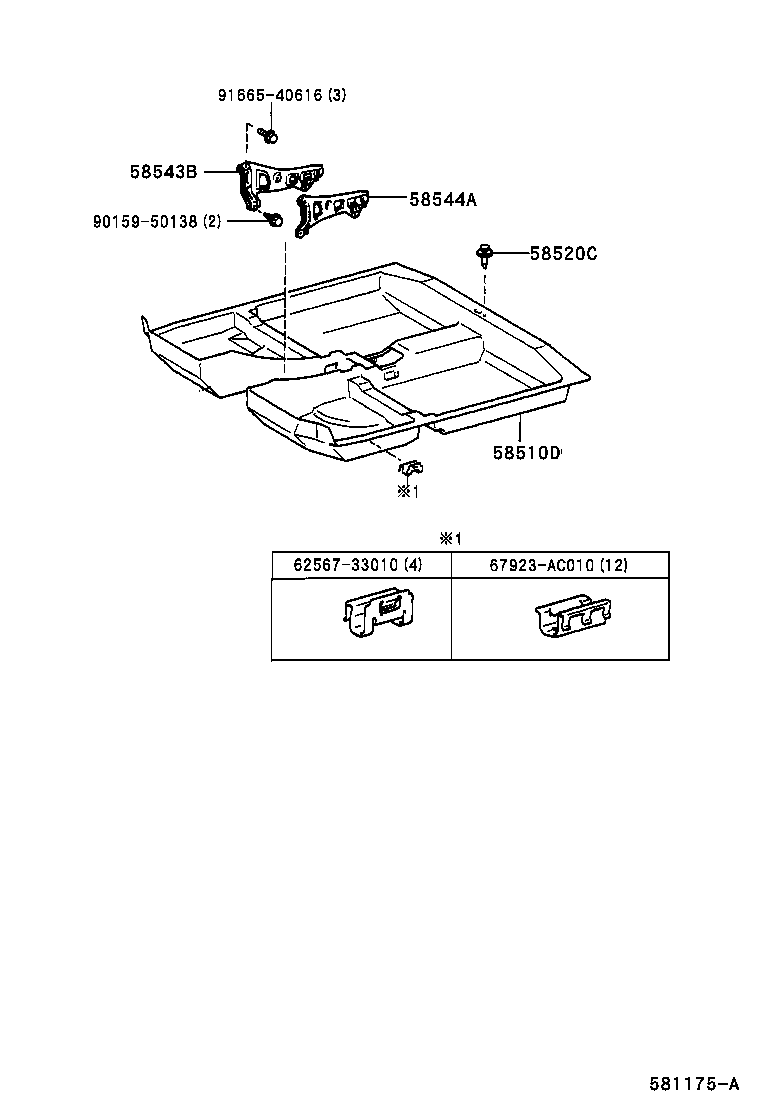

Click highlighted areas on diagram

diagram 58510D 58520C 58543B 58544A 6256733010 67923AC010 9015950138 9166540616
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-YF010B1

MCX10..CONQ,CSX,VXI

DK. STONE,TRIM1#

 1
58510-YF010B1

MCX10..CONQ,CSX,VXI

DK. STONE,TRIM1#

 1
58510-YF010E1

MCX10..CONQ,CSX,VXI

SANDALWOOD,TRIM4#

 1
58510-YF030

MCX10..CONQ

BLACK

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-06151C0

MCX10..CONQ,CSX

BLACK,TRIM1#

 1
90467-06151C0

MCX10

BLACK,TRIM1#,4#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-YF010

MCX10

 1
58543-YF010

MCX10

 1
58544A - BRACKET, FLOOR CARPET, LH
58544-YF010

MCX10

 1
58544-YF010

MCX10

 1
Common parts
62567-33010
67923-AC010
90159-50138
91665-40616
