MCX10L-AESGKV (1995)
Toyota Avalon
Production
Aug 1995
-
Sep 1997
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

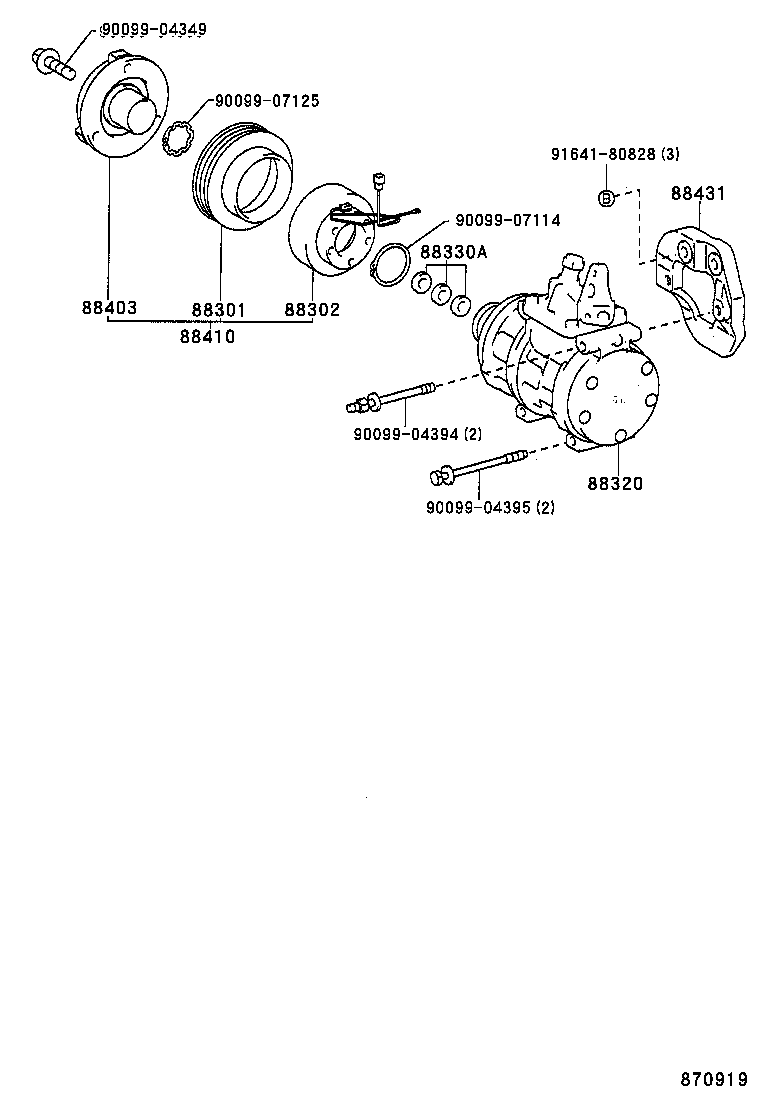

ILLUST NO. 1 OF 2(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-33010 |
MCX10 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-07020 |
MCX10 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-07010 |
MCX10 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
MCX10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
MCX10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-07010 |
MCX10 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-07010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04394 | ||||
| 90099-04395 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91641-80828 | ||||

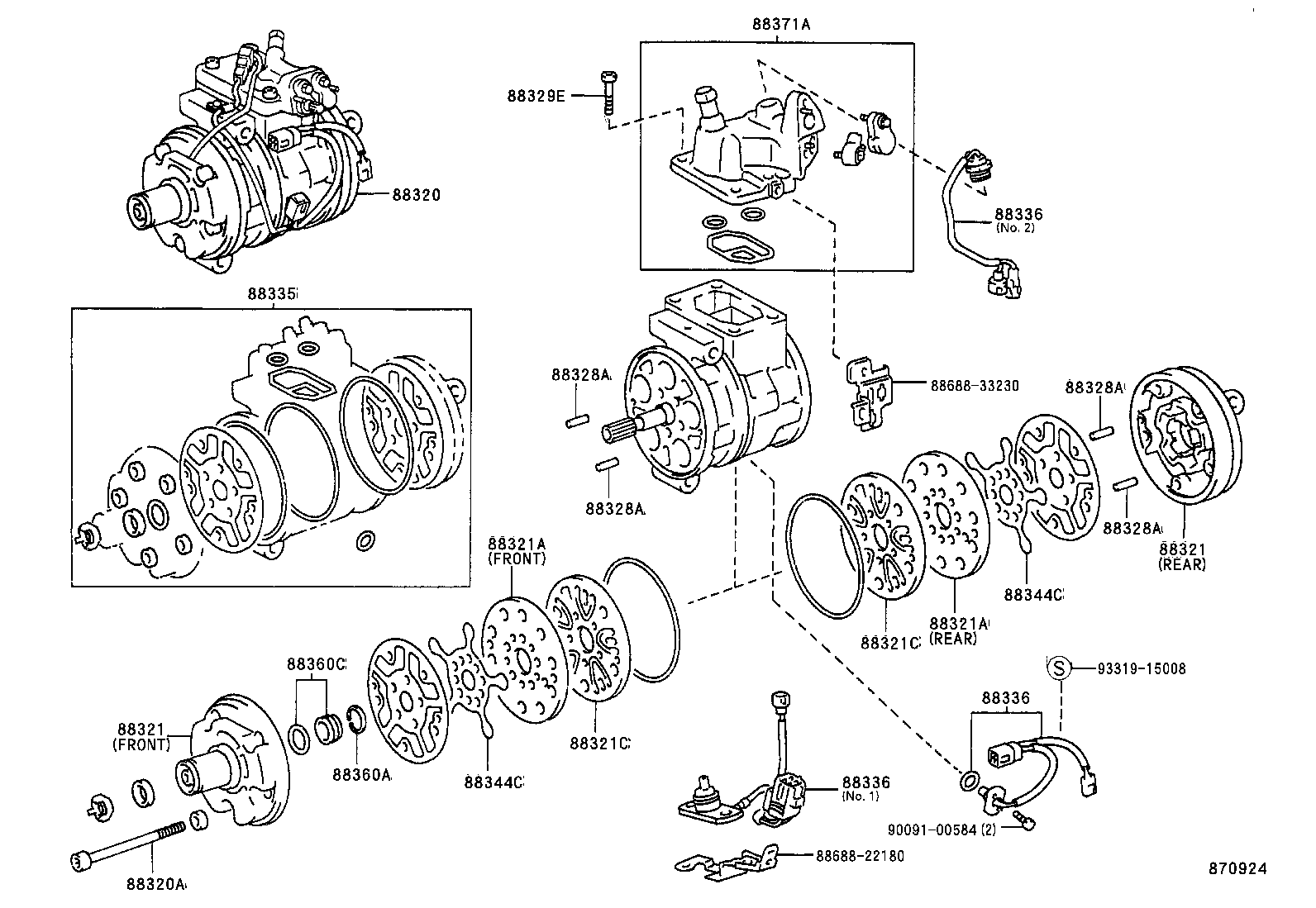

ILLUST NO. 2 OF 2(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-07010 |
MCX10 |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
MCX10 |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
MCX10 FRONT |
1 | ||
| 88322-32050 |
MCX10 REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
MCX10 FRONT |
1 | ||
| 88322-32050 |
MCX10 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
MCX10 FRONT |
1 | ||
| 88342-22010 |
MCX10 REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
MCX10 FRONT |
1 | ||
| 88342-22010 |
MCX10 REAR |
1 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MCX10 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14020 |
MCX10 |
2 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCX10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCX10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCX10 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
MCX10 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04924 |
MCX10 |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
MCX10 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-33100 |
MCX10 NO.2 |
1 | ||
| 88336-33090 |
MCX10 NO.1 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-33100 |
MCX10 NO.2 |
1 | ||
| 88336-33090 |
MCX10 NO.1 |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-33100 |
MCX10 NO.2 |
1 | ||
| 88336-33090 |
MCX10 NO.1 |
1 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
MCX10 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
MCX10 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
MCX10 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
MCX10 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-33090 |
MCX10 |
1 | ||
| Common parts | ||||
| 88688-22180 | ||||
| 88688-33230 | ||||
| 90091-00584 | ||||
| 93319-15008 | ||||

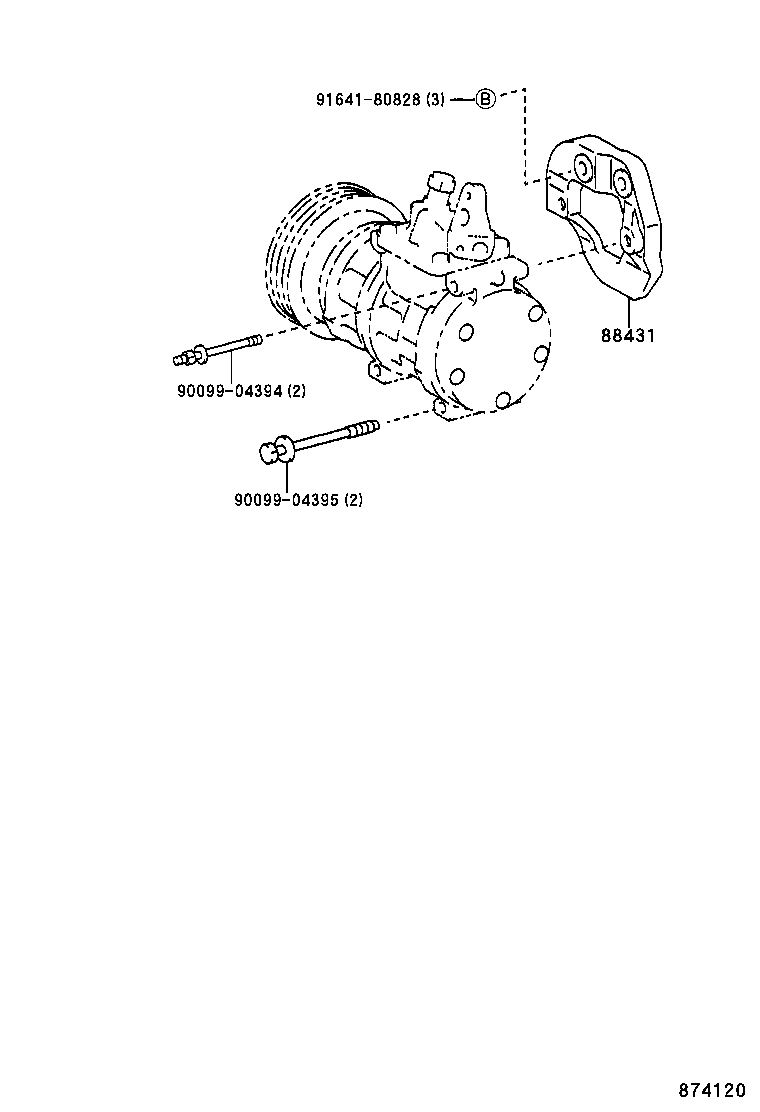

(0004-0309)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04394 | ||||
| 90099-04395 | ||||
| 91641-80828 | ||||
Part Price Details
