MCX10L-AESGKV (1995)

Toyota Avalon

Production Aug 1995 - Sep 1997
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

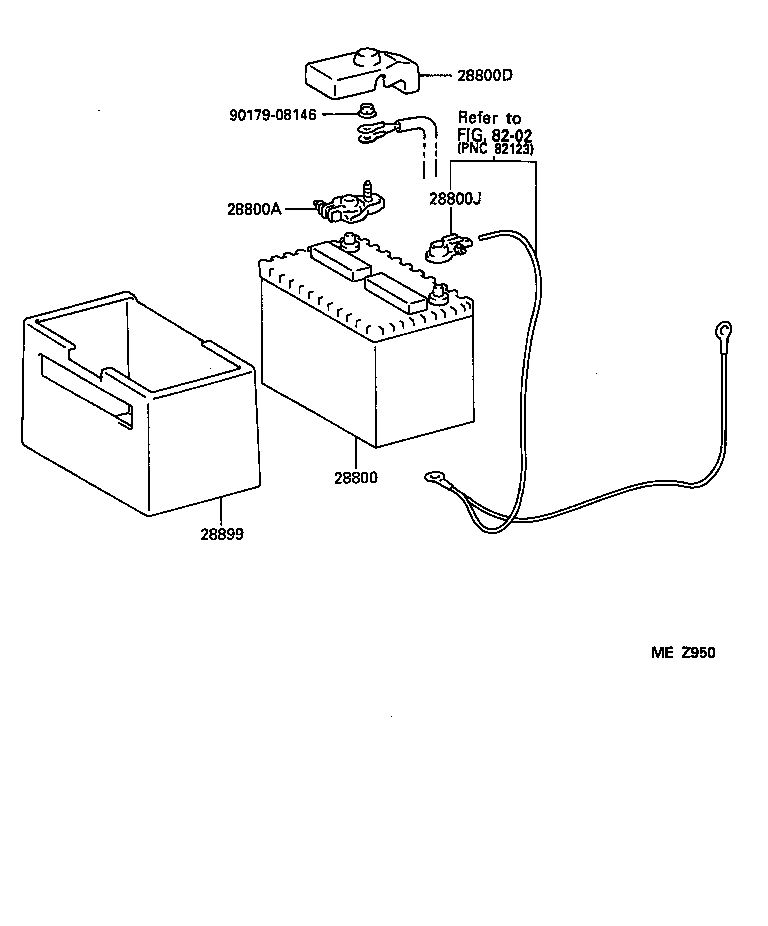

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28899 8202 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-AA010

1MZFE..MCX10

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

1MZFE..MCX10

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12290

1MZFE..MCX10

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

1MZFE..MCX10

 1
28899 - INSULATOR, BATTERY
28899-AA010

1MZFE..MCX10

 1
Common parts
90179-08146
Linked diagrams
8202
