MCX10L-AESGKV (1995)
Toyota Avalon
Production
Aug 1995
-
Sep 1997
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

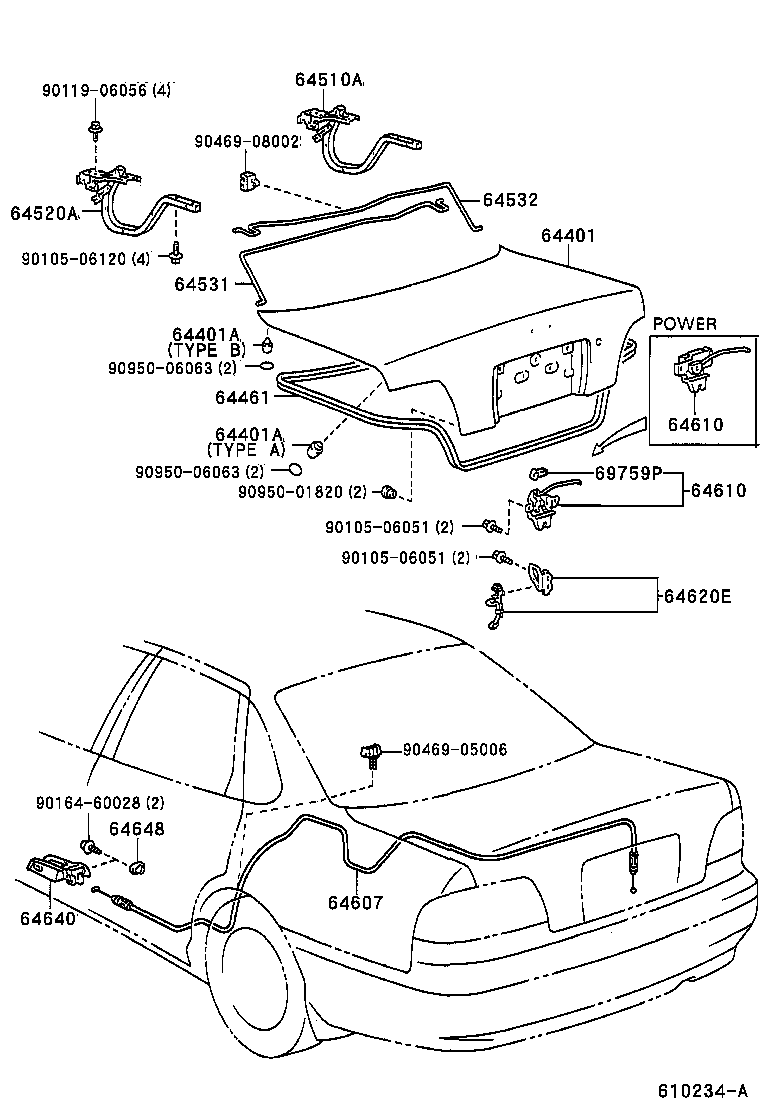

(9508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-07020 |
MCX10 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 64459-AC010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06059 |
MCX10 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 64459-AC010 |
MCX10 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-AC010 |
MCX10 |
1 | ||
| 64510A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-AC010 |
MCX10 |
1 | ||
| 64520A - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-AC010 |
MCX10 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-AC010 |
MCX10 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-AC010 |
MCX10 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-07010 |
MCX10 |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64600-07010 |
MCX10 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64620-06010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90105-06120 | ||||
| 90119-06056 | ||||
| 90164-60028 | ||||
| 90469-05006 | ||||
| 90469-08002 | ||||
| 90950-01820 | ||||
| 90950-06063 | ||||

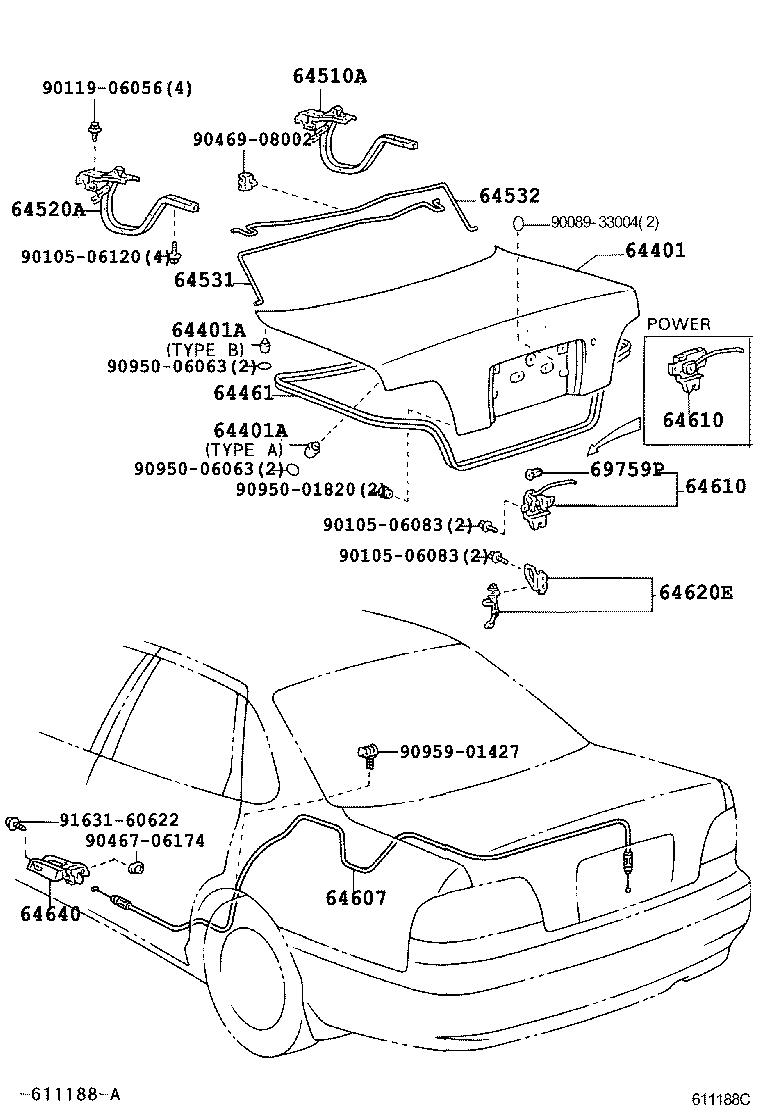

(0004-0309)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90089-33004 | ||||
| 90105-06083 | ||||
| 90105-06120 | ||||
| 90119-06056 | ||||
| 90467-06174 | ||||
| 90469-08002 | ||||
| 90950-01820 | ||||
| 90950-06063 | ||||
| 90959-01427 | ||||
| 91631-60622 | ||||
