MCX10L-AESGKV (1995)

Toyota Avalon

Production Aug 1995 - Sep 1997
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

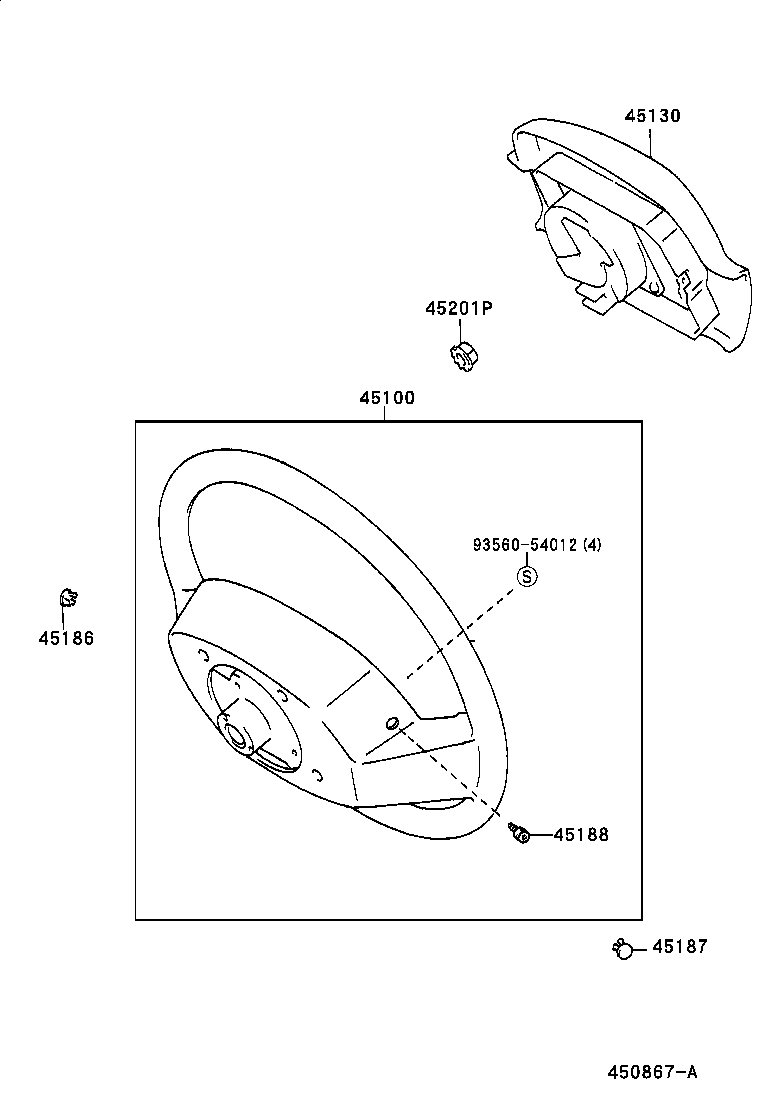

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45188 45201P 9356054012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-07020C0

MCX10

2-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-07050C0

MCX10

2-SPOKE,LEATHER,BLACK,TRIM2#

 1
45100-07050E0

MCX10

2-SPOKE,LEATHER,DK. ADOBE,TRIM4#

 1
45100-07020E0

MCX10

2-SPOKE,LEATHER,DARK ROSE,TRIM41

 1
45100-07020E1

MCX10

2-SPOKE,LEATHER,ADOBE,TRIM42

 1
45100-07050E1

MCX10

2-SPOKE,LEATHER,ROSE STONE,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-07010E0

MCX10

DARK ROSE,TRIM4#

 1
45130-07010E1

MCX10

ADOBE,TRIM4#

 1
45130-07010E2

MCX10

ROSE STONE,TRIM4#

 1
45130-07010C0

MCX10

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-07010C0

MCX10

BLACK,TRIM2#

 1
45186-06070E2

MCX10

ROSE STONE,TRIM4#

 1
45186-07010E0

MCX10

DARK ROSE,TRIM4#

 1
45186-06070E1

MCX10

DK. ADOBE,TRIM4#

 1
45186-07010E1

MCX10

ADOBE,TRIM4#

 1
45186-06070C0

MCX10

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-07010C0

MCX10

BLACK,TRIM2#

 1
45186-07010E1

MCX10

ADOBE,TRIM42

 1
45186-06070C0

MCX10

BLACK,TRIM2#

 1
45186-06070E1

MCX10

DK. ADOBE,TRIM42

 1
45186-07010E0

MCX10

DARK ROSE,TRIM41

 1
45186-06070E2

MCX10

ROSE STONE,TRIM43

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-06010

MCX10

L=16.3

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

MCX10

 1
Common parts
93560-54012
