MCX10L-AEPGKV (1995)
Toyota Avalon
Production
Aug 1995
-
Aug 1999
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9709- )

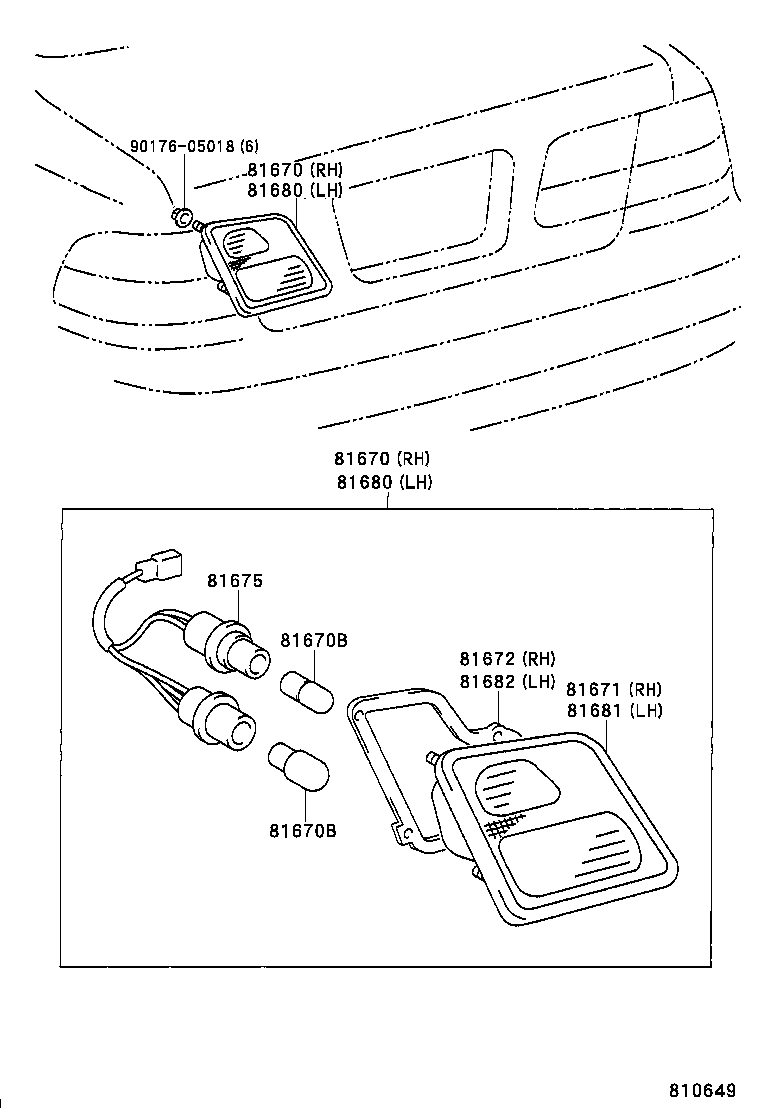

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81670 - LAMP ASSY, BACK-UP, RH | ||||
| 81670-AC010 |
MCX10 |
1 | ||
| 81670 - LAMP ASSY, BACK-UP, RH | ||||
| 81670-AC010 |
MCX10 |
1 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-11039 |
MCX10 12V 16W |
2 | ||
| 90981-13051 |
MCX10 12V 21/5W |
2 | ||
| 81670B - BULB(FOR BACK-UP LAMP) | ||||
| 90981-11039 |
MCX10 12V 16W |
2 | ||
| 90981-13051 |
MCX10 12V 21/5W |
2 | ||
| 81671 - LENS, BACK-UP LAMP, RH | ||||
| 81671-AC010 |
MCX10 |
1 | ||
| 81672 - GASKET, BACK-UP LAMP LENS, RH | ||||
| 81672-AC010 |
MCX10 |
1 | ||
| 81675 - SOCKET & WIRE, BACK-UP LAMP | ||||
| 81675-AC010 |
MCX10 |
2 | ||
| 81680 - LAMP ASSY, BACK UP, LH | ||||
| 81680-AC010 |
MCX10 |
1 | ||
| 81680 - LAMP ASSY, BACK UP, LH | ||||
| 81680-AC010 |
MCX10 |
1 | ||
| 81681 - LENS, BACK-UP LAMP, LH | ||||
| 81681-AC010 |
MCX10 |
1 | ||
| 81682 - GASKET, BACK UP LAMP LENS, LH | ||||
| 81682-AC010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90176-05018 | ||||
(0004-0309)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90176-05018 | ||||
| 90179-05076 | ||||
