MCX10L-AEPGKV (1995)
Toyota Avalon
Production
Aug 1995
-
Aug 1999
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9508- )

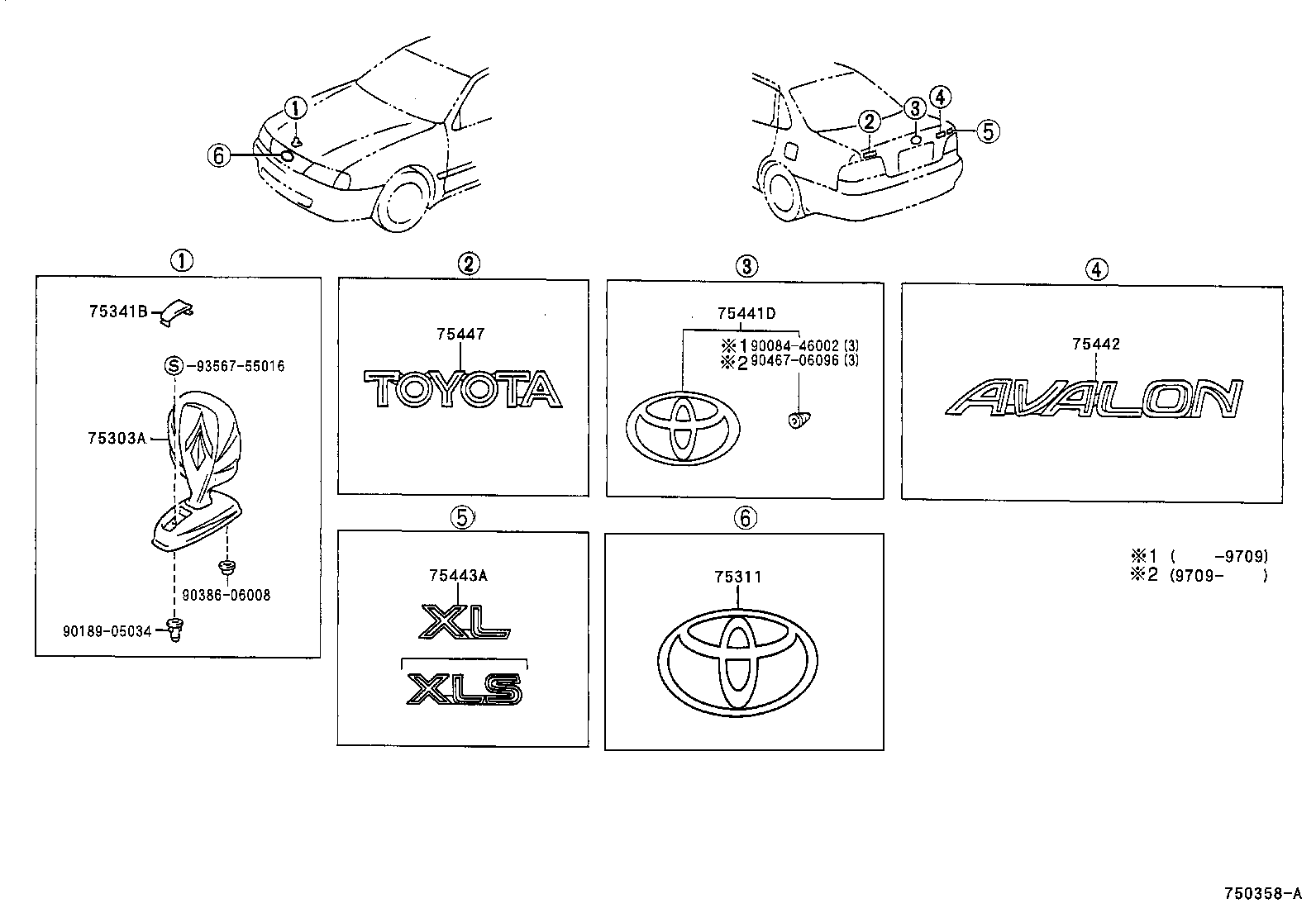

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75303A - EMBLEM SUB-ASSY, HOOD | ||||
| 75303-41010 |
MCX10 |
1 | ||
| 75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL) | ||||
| 75441-AC010 |
MCX10 |
1 | ||
| 75341B - PLATE, HOOD NAME | ||||
| 75341-22010 |
MCX10 |
1 | ||
| 75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1 | ||||
| 75441-06040 |
MCX10 |
1 | ||
| 75404-AC010 |
MCX10 |
1 | ||
| 75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2 | ||||
| 75442-AC010 |
MCX10 AVALON |
1 | ||
| 75442-AC020 |
MCX10 AVALON |
1 | ||
| 75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3 | ||||
| 75443-07010 |
MCX10..XL XL |
1 | ||
| 75443-07020 |
MCX10..XLS XLS |
1 | ||
| 75447 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7 | ||||
| 75447-AC010 |
MCX10 |
1 | ||
| Common parts | ||||
| 90084-46002 | ||||
| 90189-05034 | ||||
| 90386-06008 | ||||
| 90467-06096 | ||||
| 93567-55016 | ||||
