MCX10L-AEPGKV (1995)

Toyota Avalon

Production Aug 1995 - Aug 1999
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )

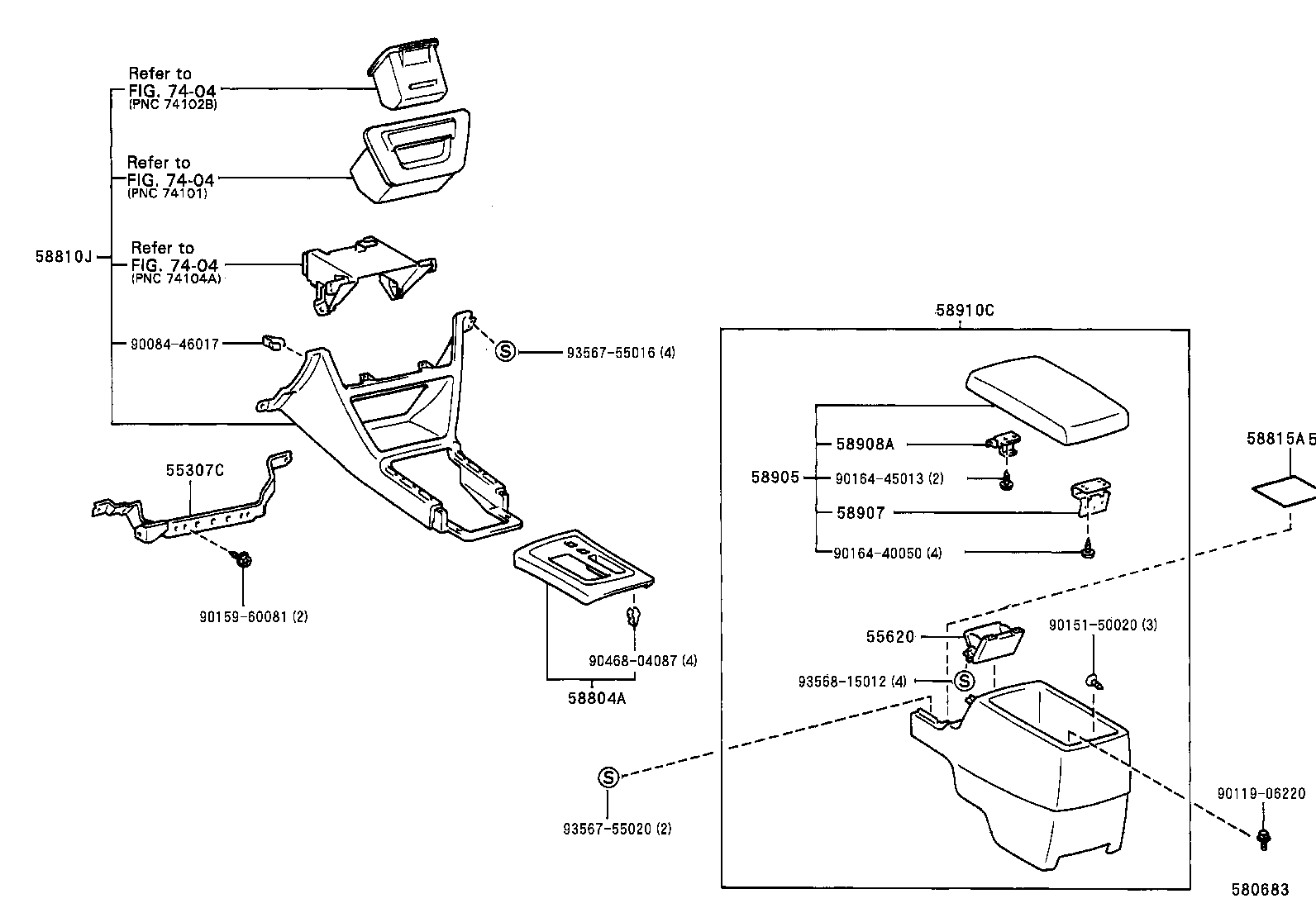

Click highlighted areas on diagram

diagram 55307C 55620 58804A 58810J 58815A 58905 58907 58908A 58910C 9008446017 9011906220 9015150020 9015960081 9016440050 9016445013 9046804087 9356755016 9356755020 9356815012
Part # Description Qty Price
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-AC010

MCX10..4FC

 1
55620 - HOLDER ASSY, INSTRUMENT PANEL CUP
55620-AC010E1

MCX10..4FC

LT. ADOBE,TRIM42

 1
55620-AC010E0

MCX10..4FC

QUARTZ,TRIM41

 1
55620-AC010A0

MCX10..4FC

IVORY,TRIM44

 1
55620-AC010C0

MCX10..4FC

BLACK,TRIM2#

 1
55620-AC010E0

MCX10..4FC

QUARTZ,TRIM43

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-AC010E2

MCX10..4FC

QUARTZ,TRIM41

 1
58804-AC010C0

MCX10..4FC

BLACK,TRIM2#

 1
58804-AC010E2

MCX10..4FC

QUARTZ,TRIM43

 1
58804-AC010E3

MCX10..4FC

ADOBE,TRIM42

 1
58804-AC021

MCX10..XLS

 1
58804-AC010A0

MCX10..4FC

IVORY,TRIM44

 1
58810J - BOX ASSY, CONSOLE
58810-AC010E0

MCX10..4FC

QUARTZ,TRIM41

 1
58810-AC010E0

MCX10..4FC

QUARTZ,TRIM43

 1
58810-AC010C0

MCX10..4FC

BLACK,TRIM2#

 1
58810-AC010E1

MCX10..4FC

ADOBE,TRIM42

 1
58810-AC010A0

MCX10..4FC

IVORY,TRIM44

 1
58815A - CARPET, CONSOLE BOX
58815-AC020

MCX10..4FC

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-AC010L0

MCX10..4FC

QUARTZ,TRIM41

 1
58905-AC010C3

MCX10..4FC

BLACK,TRIM2#

 1
58905-AC010A0

MCX10..4FC

IVORY,TRIM44

 1
58905-AC010L1

MCX10..4FC

ADOBE,TRIM42

 1
58905-AC010L0

MCX10..4FC

QUARTZ,TRIM43

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-AC010

MCX10..4FC

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32020

MCX10..4FC

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-AC010C0

MCX10..4FC

BLACK,TRIM2#

 1
58910-AC010E0

MCX10..4FC

QUARTZ,TRIM41

 1
58910-AC010E0

MCX10..4FC

QUARTZ,TRIM43

 1
58910-AC010E1

MCX10..4FC

LT. ADOBE,TRIM42

 1
58910-AC010A0

MCX10..4FC

IVORY,TRIM44

 1
Common parts
90084-46017
90119-06220
90151-50020
90159-60081
90164-40050
90164-45013
90468-04087
93567-55016
93567-55020
93568-15012
