GSX50L-AEZGBV (2020)
Toyota Avalon
(2008- )
UA80E

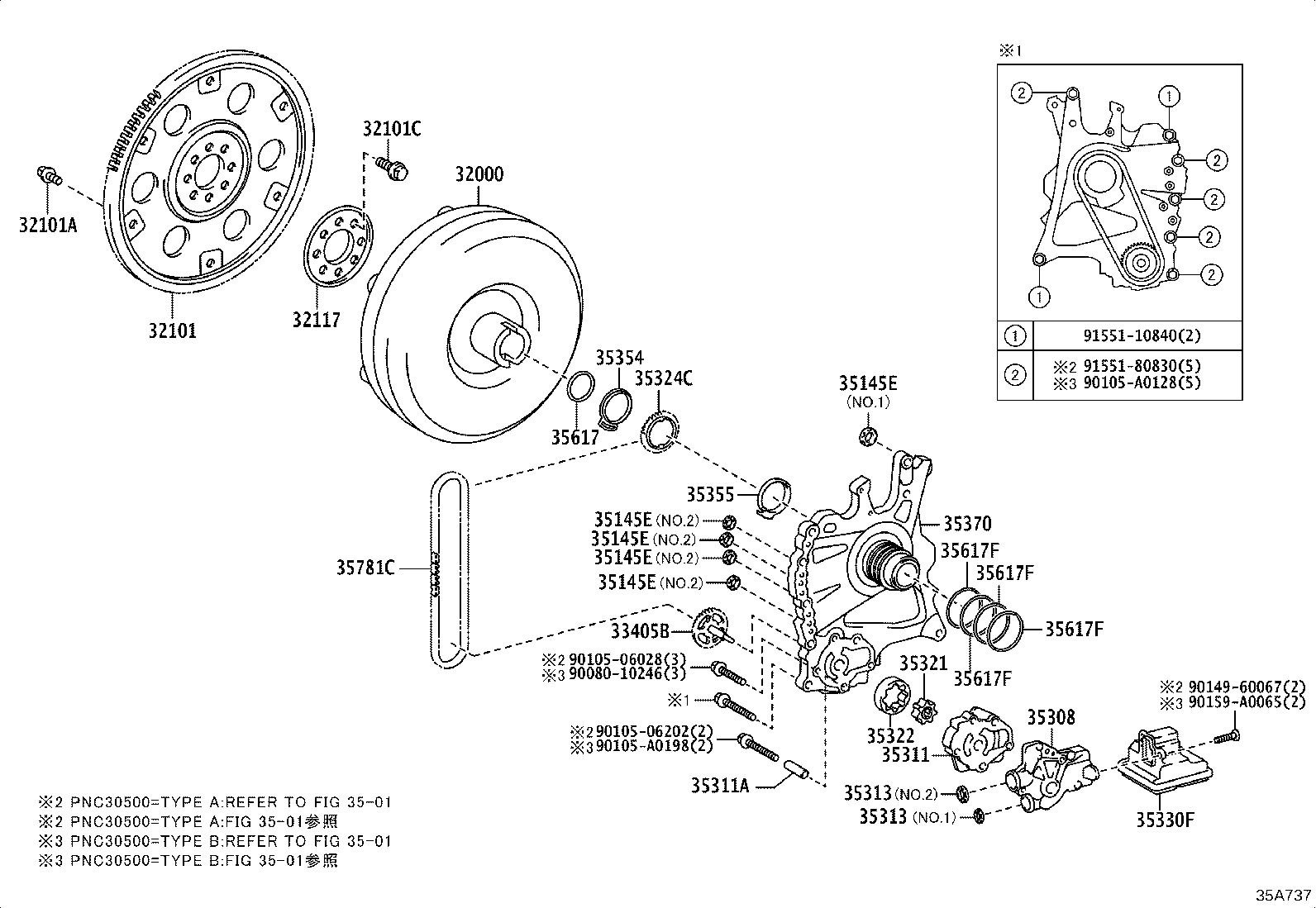

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-06070 |
GSX50 (L) |
1 | ||
| 32000-48060 |
GSX50 (J) |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-48010 |
GSX50 (J) |
1 | ||
| 32101-0E010 |
GSX50 (L) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
GSX50 *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
GSX50 *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GSX50 *10-1.25PX18-13 |
8 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
GSX50 |
1 | ||
| 33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE | ||||
| 33405-48010 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 33405-06010 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-07010 |
GSX50 T/P B:SEE 35-01,NO.1 |
1 | ||
| 35145-48030 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145-33020 |
GSX50 T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33010 |
GSX50 T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33040 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-07010 |
GSX50 T/P B:SEE 35-01,NO.1 |
1 | ||
| 35145-48030 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145-33020 |
GSX50 T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33010 |
GSX50 T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33040 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-07010 |
GSX50 T/P B:SEE 35-01,NO.1 |
1 | ||
| 35145-48030 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145-33020 |
GSX50 T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33010 |
GSX50 T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33040 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-07010 |
GSX50 T/P B:SEE 35-01,NO.1 |
1 | ||
| 35145-48030 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145-33020 |
GSX50 T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33010 |
GSX50 T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33040 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145E - GASKET, TRANSAXLE CASE | ||||
| 35145-07010 |
GSX50 T/P B:SEE 35-01,NO.1 |
1 | ||
| 35145-48030 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35145-33020 |
GSX50 T/P B:SEE 35-01,NO.1,T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33010 |
GSX50 T/P A:SEE 35-01,NO.1 |
1 | ||
| 35145-33040 |
GSX50 T/P B:SEE 35-01,NO.2,T/P A:SEE 35-01,NO.2 |
4 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-06010 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35308-48110 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 35311 - BODY, FRONT OIL PUMP | ||||
| 35311-48040 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 35311-06030 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35311A - PIN, RING | ||||
| 90253-09005 |
GSX50 TYPE B:REFER 35-01 |
2 | ||
| 90253-09004 |
GSX50 TYPE A:REFER 35-01 |
2 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSX50 NO.1 |
1 | ||
| 35313-48030 |
GSX50 NO.2 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-48020 |
GSX50 NO.1 |
1 | ||
| 35313-48030 |
GSX50 NO.2 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-48110 |
GSX50 T=16.66,TYPE A:REFER 35-01 |
1 | ||
| 35321-06160 |
GSX50 T=16.66,TYPE B:REFER 35-01 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-06160 |
GSX50 T=16.66,TYPE B:REFER 35-01 |
1 | ||
| 35322-48110 |
GSX50 T=16.66,TYPE A:REFER 35-01 |
1 | ||
| 35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE | ||||
| 35324-48040 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 35324-06010 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35330F - STRAINER ASSY, OIL | ||||
| 35330-06020 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35330-48040 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT | ||||
| 35354-48010 |
GSX50 |
1 | ||
| 35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR | ||||
| 35355-48010 |
GSX50 |
1 | ||
| 35355-48011 |
GSX50 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-06040 |
GSX50 TYPE B:REFER 35-01 |
1 | ||
| 35370-48040 |
GSX50 TYPE A:REFER 35-01 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48050 |
GSX50 |
1 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSX50 |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSX50 |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSX50 |
4 | ||
| 35617F - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-48060 |
GSX50 |
4 | ||
| 35781C - CHAIN, TRANSMISSION DRIVE | ||||
| 35781-48020 |
GSX50 (J) |
1 | ||
| 35781-06010 |
GSX50 (L) |
1 | ||
| Common parts | ||||
| 90080-10246 | ||||
| 90105-06028 | ||||
| 90105-06202 | ||||
| 90105-A0128 | ||||
| 90105-A0198 | ||||
| 90149-60067 | ||||
| 90159-A0065 | ||||
| 91551-10840 | ||||
| 91551-80830 | ||||
