GSX50L-AEZGBV (2018)
Toyota Avalon

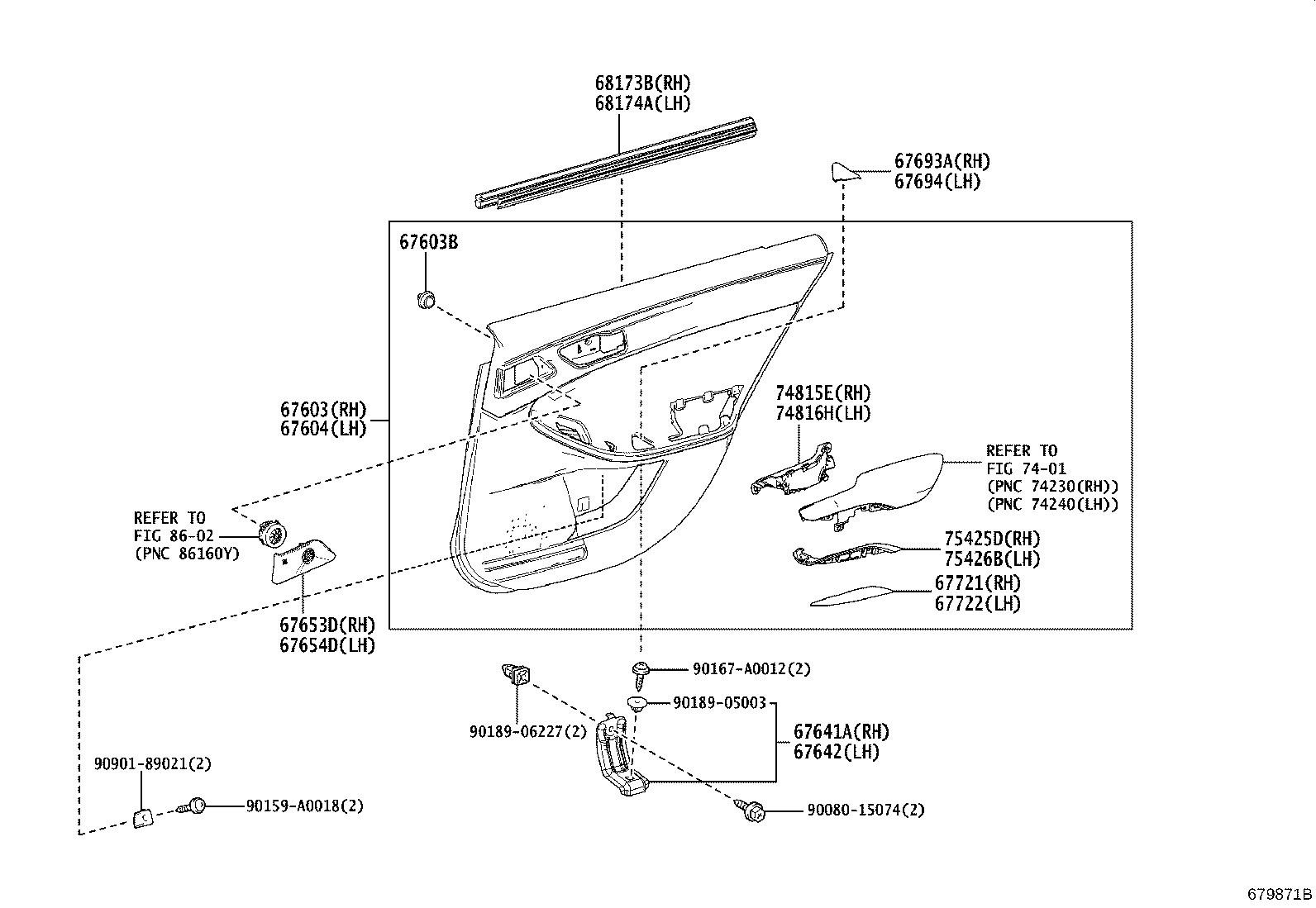

ILLUST NO. 2 OF 2(1806- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67030-07010B1 |
GSX50..XLE NW.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67030-07010C3 |
GSX50..XLE BLACK/BLACK/N.BEIGE,TRIM4# |
1 | ||
| 67030-07010C2 |
GSX50..XLE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67030-07010B3 |
GSX50..XLE NQ.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67030-07010C7 |
GSX50..XLE BLACK/BLACK/N.BEIGE,TRIM4# |
1 | ||
| 67030-07010C6 |
GSX50..XLE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67030-07011B3 |
GSX50..XLE GRAY,TRIM1#,## |
1 | ||
| 67030-07011C6 |
GSX50..XLE BLACK,TRIM2#,## |
1 | ||
| 67030-07011C7 |
GSX50..XLE NEUTRAL BEIGE,TRIM4#,## |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-A0005 |
GSX50..XLE |
32 | ||
| 90467-A0005 |
GSX50 |
16 | ||
| 90467-A0005 |
GSX50..XLE |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67040-07010C3 |
GSX50..XLE BLACK/BLACK/N.BEIGE,TRIM4# |
1 | ||
| 67040-07010B1 |
GSX50..XLE NW.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67040-07010B3 |
GSX50..XLE NW.GRAY/BLACK/GRAY,TRIM1# |
1 | ||
| 67040-07011C7 |
GSX50..XLE NEUTRAL BEIGE,TRIM4#,## |
1 | ||
| 67040-07010C6 |
GSX50..XLE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67040-07010C7 |
GSX50..XLE BLACK/BLACK/N.BEIGE,TRIM4# |
1 | ||
| 67040-07011C6 |
GSX50..XLE BLACK,TRIM2#,## |
1 | ||
| 67040-07011B3 |
GSX50..XLE GRAY,TRIM1#,## |
1 | ||
| 67040-07010C2 |
GSX50..XLE BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67641A - BRACKET, REAR DOOR TRIM, NO.1 RH | ||||
| 67641-07010 |
GSX50 |
1 | ||
| 67642 - BRACKET, REAR DOOR TRIM, NO.1 LH | ||||
| 67641-07010 |
GSX50 |
1 | ||
| 67653D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, RH | ||||
| 67653-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM10 |
2 | ||
| 67653-07010C0 |
GSX50..XLE BLACK,TRIM10,2#,4# |
1 | ||
| 67653-07010C0 |
GSX50..XLE BLACK,TRIM10,2#,4# |
2 | ||
| 67653-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 67653-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM10 |
1 | ||
| 67653-07010C0 |
GSX50..XLE BLACK,TRIM2#,4# |
1 | ||
| 67654D - GRILLE SUB-ASSY, REAR DOOR SPEAKER, LH | ||||
| 67654-07010C0 |
GSX50..XLE BLACK,TRIM10,2#,4# |
1 | ||
| 67654-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM10 |
1 | ||
| 67654-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM10 |
2 | ||
| 67654-07010C0 |
GSX50..XLE BLACK,TRIM10,2#,4# |
2 | ||
| 67654-07010B0 |
GSX50..XLE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 67654-07010C0 |
GSX50..XLE BLACK,TRIM2#,4# |
1 | ||
| 67693A - COVER, REAR DOOR TRIM ASSY, RH | ||||
| 67693-07010 |
GSX50 |
1 | ||
| 67694 - COVER, REAR DOOR TRIM ASSY, LH | ||||
| 67694-07010 |
GSX50 |
1 | ||
| 67721 - COVER, REAR DOOR TRIM, RH | ||||
| 67721-07020C0 |
GSX50..XLE BLACK,TRIM2# |
1 | ||
| 67721-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67721-07020B0 |
GSX50..XLE GRAY,TRIM1# |
1 | ||
| 67721-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67721-07020C0 |
GSX50..XLE BLACK,TRIM2# |
2 | ||
| 67721-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
2 | ||
| 67721-07020B0 |
GSX50 GRAY,TRIM1# |
1 | ||
| 67721-07020C0 |
GSX50..XLE BLACK,TRIM2# |
1 | ||
| 67721-07020B0 |
GSX50..XLE GRAY,TRIM1# |
2 | ||
| 67722 - COVER, REAR DOOR TRIM, LH | ||||
| 67722-07020C0 |
GSX50..XLE BLACK,TRIM2# |
1 | ||
| 67722-07020C0 |
GSX50..XLE BLACK,TRIM2# |
2 | ||
| 67722-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67722-07020B0 |
GSX50 GRAY,TRIM1# |
1 | ||
| 67722-07020B0 |
GSX50..XLE GRAY,TRIM1# |
2 | ||
| 67722-07020B0 |
GSX50..XLE GRAY,TRIM1# |
1 | ||
| 67722-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
1 | ||
| 67722-07020C0 |
GSX50..XLE BLACK,TRIM2# |
1 | ||
| 67722-07020E1 |
GSX50..XLE NEUTRAL BEIGE,TRIM4# |
2 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-07020 |
GSX50 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-07020 |
GSX50 |
1 | ||
| 74815E - HANDLE, REAR DOOR PULL, RH | ||||
| 74815-07010 |
GSX50..XLE |
2 | ||
| 74815-07010 |
GSX50 |
1 | ||
| 74815-07010 |
GSX50..XLE |
1 | ||
| 74816H - HANDLE, REAR DOOR PULL, LH | ||||
| 74816-07010 |
GSX50 |
1 | ||
| 74816-07010 |
GSX50..XLE |
1 | ||
| 74816-07010 |
GSX50..XLE |
2 | ||
| 75425D - ORNAMENT, REAR DOOR, RH | ||||
| 75425-07020 |
GSX50..XLE |
2 | ||
| 75425-07020 |
GSX50..XLE |
1 | ||
| 75425-07020 |
GSX50 |
1 | ||
| 75426B - ORNAMENT, REAR DOOR, LH | ||||
| 75426-07020 |
GSX50 |
1 | ||
| 75426-07020 |
GSX50..XLE |
2 | ||
| 75426-07020 |
GSX50..XLE |
1 | ||
| Common parts | ||||
| 90080-15074 | ||||
| 90159-A0018 | ||||
| 90167-A0012 | ||||
| 90189-05003 | ||||
| 90189-06227 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||

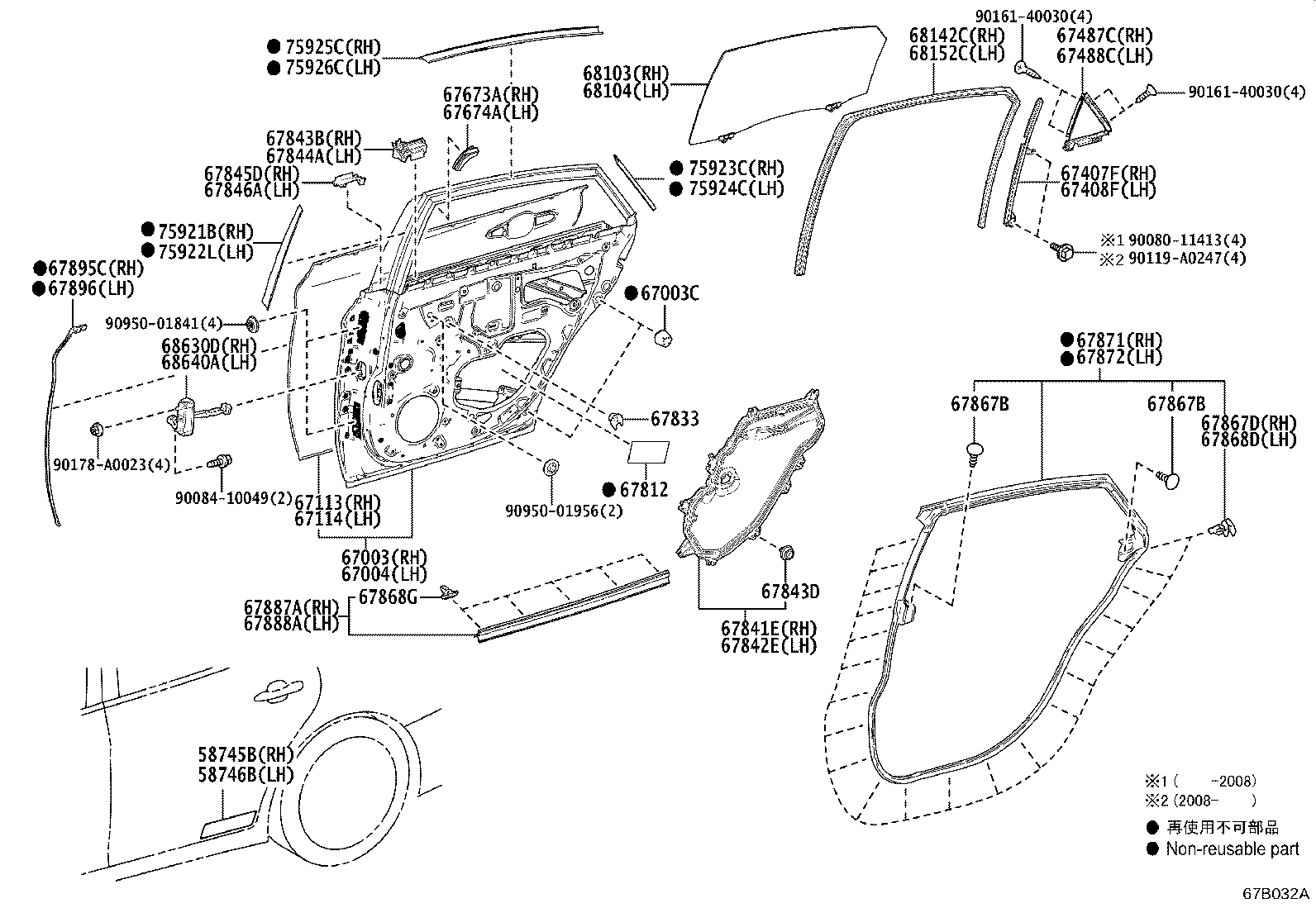

ILLUST NO. 1 OF 2(1806- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58745B - PROTECTOR, QUARTER PANEL, FRONT RH | ||||
| 58745-07020 |
GSX50 |
1 | ||
| 58746B - PROTECTOR, QUARTER PANEL, FRONT LH | ||||
| 58746-07020 |
GSX50 |
1 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-07040 |
GSX50 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09143 |
GSX50 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-07040 |
GSX50 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-07030 |
GSX50 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-07030 |
GSX50 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-07020 |
GSX50 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-07020 |
GSX50 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67470-07010 |
GSX50 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67480-07010 |
GSX50 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-06140 |
GSX50 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-06140 |
GSX50 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-AA040 |
GSX50 |
2 | ||
| 67833 - COVER, REAR DOOR SERVICE HOLE | ||||
| 67833-0E010 |
GSX50 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-07040 |
GSX50 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-07040 |
GSX50 |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-07010 |
GSX50 |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 90467-A0005 |
GSX50 |
16 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-07010 |
GSX50 |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-07010 |
GSX50 |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-07010 |
GSX50 |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
GSX50 |
4 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
GSX50 |
4 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GSX50 |
21 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GSX50 |
21 | ||
| 67868G - RETAINER, DOOR WEATHERSTRIP | ||||
| 67867-52030 |
GSX50 |
10 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-07020 |
GSX50 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-07020 |
GSX50 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-07020 |
GSX50 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-07020 |
GSX50 |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-07020 |
GSX50 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-07020 |
GSX50 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-07040 |
GSX50 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-07040 |
GSX50 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-07020 |
GSX50 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-07020 |
GSX50 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-07032 |
GSX50 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-07032 |
GSX50 |
1 | ||
| 75921B - TAPE, BLACK OUT, NO.1 RH | ||||
| 75977-07020 |
GSX50 |
1 | ||
| 75922L - TAPE, BLACK OUT, NO.1 LH | ||||
| 75978-07020 |
GSX50 |
1 | ||
| 75923C - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-07020 |
GSX50 |
1 | ||
| 75924C - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-07020 |
GSX50 |
1 | ||
| 75925C - TAPE, BLACK OUT, NO.3 RH | ||||
| 75987-07020 |
GSX50 |
1 | ||
| 75926C - TAPE, BLACK OUT, NO.3 LH | ||||
| 75988-07020 |
GSX50 |
1 | ||
| Common parts | ||||
| 90080-11413 | ||||
| 90084-10049 | ||||
| 90119-A0247 | ||||
| 90161-40030 | ||||
| 90178-A0023 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
