GSX50L-AEZGBV (2018)

Toyota Avalon

Production Jun 2018 - Aug 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

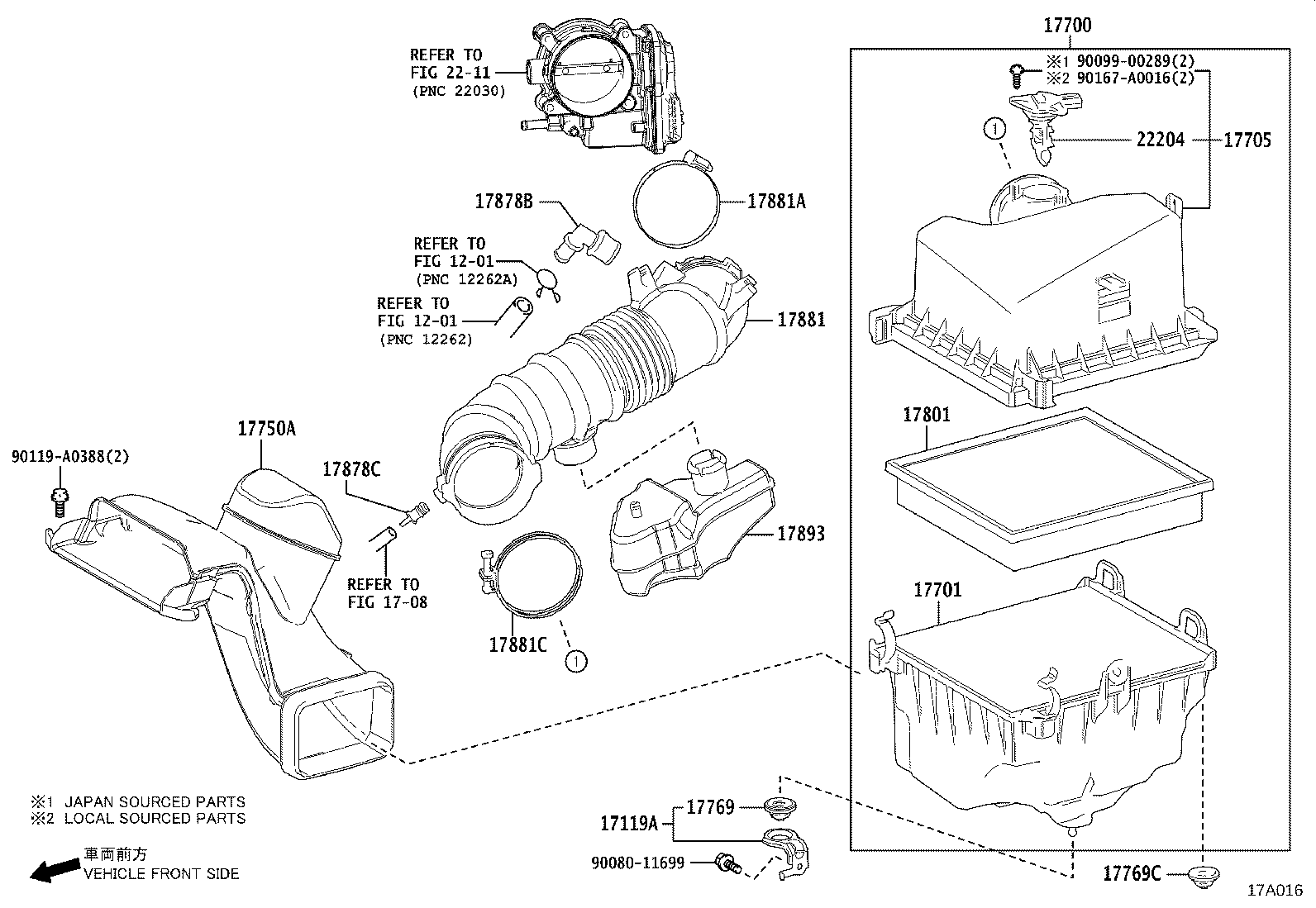

ILLUST NO. 1 OF 1(1806- )

Click highlighted areas on diagram

2GRFKS

diagram 1201 1201 1708 17119A 17700 17701 17705 17750A 17769 17769C 17801 17878B 17878C 17881 17881A 17881C 17893 2211 22204 9008011699 9009900289 90119A0388 90167A0016
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-F0010

2GRFKS..GSX50

 1
17700 - CLEANER ASSY, AIR
17700-F0130

2GRFKS..GSX50

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-F0010

2GRFKS..GSX50

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-F0130

2GRFKS..GSX50

 1
17750A - INLET ASSY, AIR CLEANER
17750-0P080

2GRFKS..GSX50

 1
17769 - SUPPORT, AIR CLEANER
17769-25020

2GRFKS..GSX50

 1
17769C - SUPPORT, AIR CLEANER, NO.1
17769-25020

2GRFKS..GSX50

 2
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-25020

2GRFKS..GSX50

(J)

 1
17801-F0050

2GRFKS..GSX50

(L)

 1
17878B - TUBE, VENTILATION
17878-0P040

2GRFKS..GSX50

 1
17878C - TUBE, VENTILATION, NO.2
17878-0P060

2GRFKS..GSX50

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0P230

2GRFKS..GSX50

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-90005

2GRFKS..GSX50

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10880

2GRFKS..GSX50

 1
17893 - RESONATOR, INTAKE AIR
17893-0P180

2GRFKS..GSX50

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

2GRFKS..GSX50

 1
Common parts
90080-11699
90099-00289
90119-A0388
90167-A0016
Linked diagrams
1201
1708
2211
