GSX40L-AETPKV (2012)
Toyota Avalon
Production
Oct 2012
-
Oct 2015
Engine
2GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1210- )

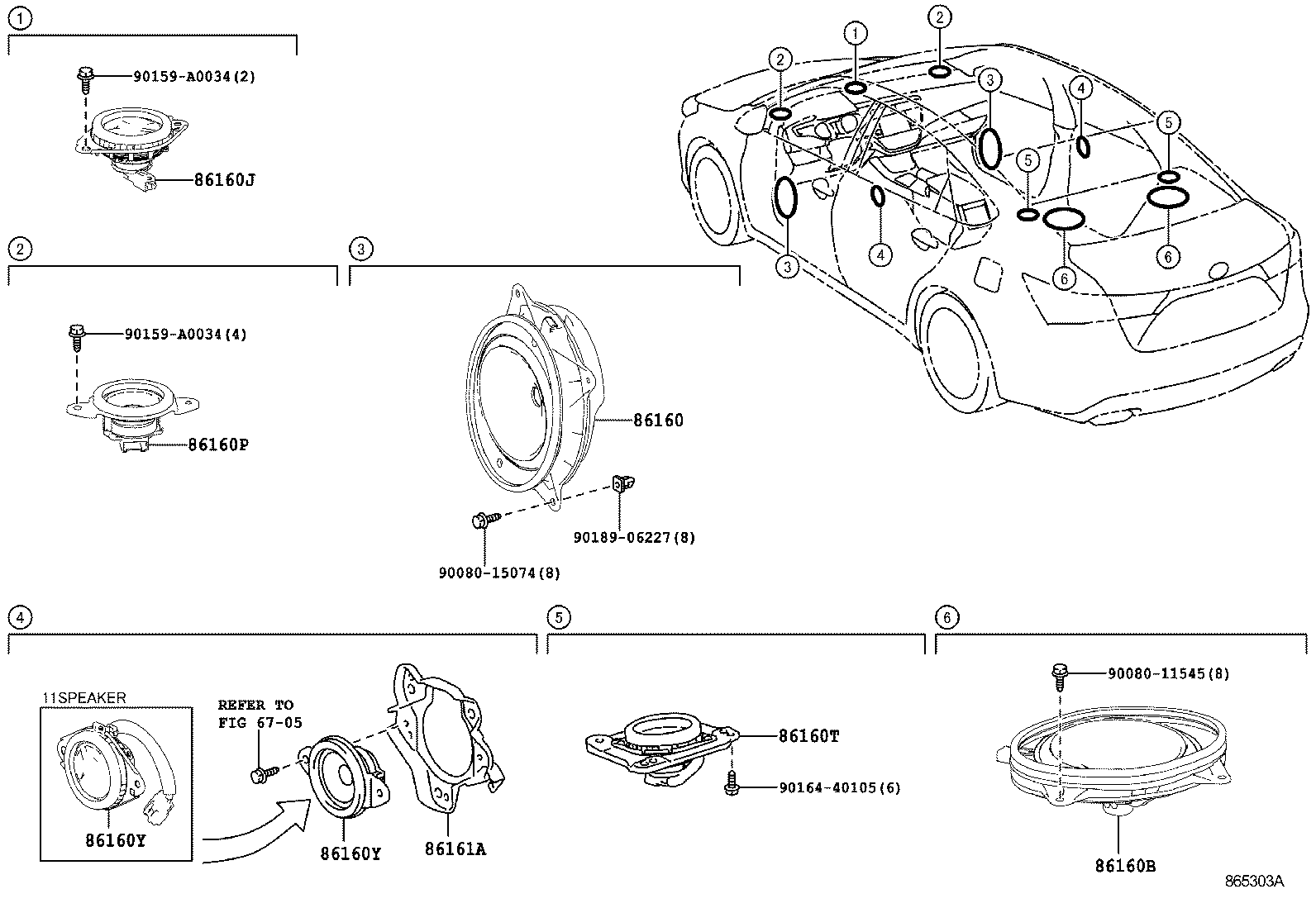

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-0WU60 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-0WU60 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-06390 |
GSX40 |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-0WU70 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-0WU70 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-06450 |
GSX40 |
2 | ||
| 86160J - SPEAKER ASSY, FRONT NO.3 | ||||
| 86160-0WU80 |
GSX40 AUDIO-AVN & 11SPEAKER |
1 | ||
| 86160-0WU80 |
GSX40 AUDIO-AVN & 11SPEAKER |
1 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-06380 |
GSX40 |
2 | ||
| 86160-0WU50 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-0WU50 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160T - SPEAKER ASSY, REAR HEADER | ||||
| 86150-07030 |
GSX40 AUDIO-AVN & 11SPEAKER,LH |
1 | ||
| 86150-07040 |
GSX40 AUDIO-AVN & 11SPEAKER,RH |
1 | ||
| 86150-07030 |
GSX40 AUDIO-AVN & 11SPEAKER,LH |
1 | ||
| 86150-07040 |
GSX40 AUDIO-AVN & 11SPEAKER,RH |
1 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-07100 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-07100 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-06380 |
GSX40 |
2 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-07100 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-07100 |
GSX40 AUDIO-AVN & 11SPEAKER |
2 | ||
| 86160-06380 |
GSX40 |
2 | ||
| 86161A - BRACKET, SPEAKER, REAR | ||||
| 86161-07010 |
GSX40 RH |
1 | ||
| 86161-07020 |
GSX40 LH |
1 | ||
| Common parts | ||||
| 90080-11545 | ||||
| 90080-15074 | ||||
| 90159-A0034 | ||||
| 90164-40105 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 6705 | ||||
