GSX40L-AETPKV (2012)
Toyota Avalon

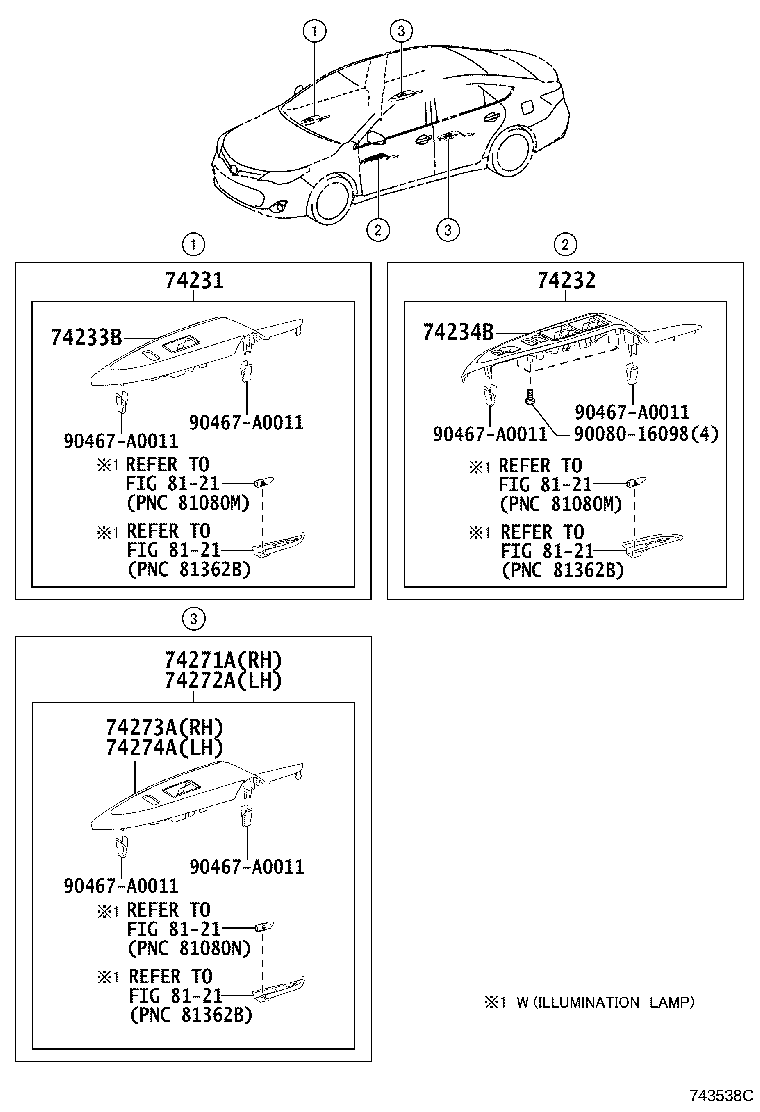

ILLUST NO. 1 OF 2(1210- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-07040 |
GSX40..LIMD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-07040 |
GSX40..LIMD |
1 | ||
| 74233B - PANEL, FRONT DOOR ARMREST BASE, LOWER RH | ||||
| 74233-07020 |
GSX40..LIMD |
1 | ||
| 74234B - PANEL, FRONT DOOR ARMREST BASE, LOWER LH | ||||
| 74234-07020 |
GSX40..LIMD |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-07040 |
GSX40..LIMD |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-07040 |
GSX40..LIMD |
1 | ||
| 74273A - PANEL, REAR DOOR ARMREST BASE, LOWER RH | ||||
| 74273-07020 |
GSX40..LIMD |
1 | ||
| 74274A - PANEL, REAR DOOR ARMREST BASE, LOWER LH | ||||
| 74274-07020 |
GSX40..LIMD |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90467-A0011 | ||||
| Linked diagrams | ||||
| 8121 | ||||

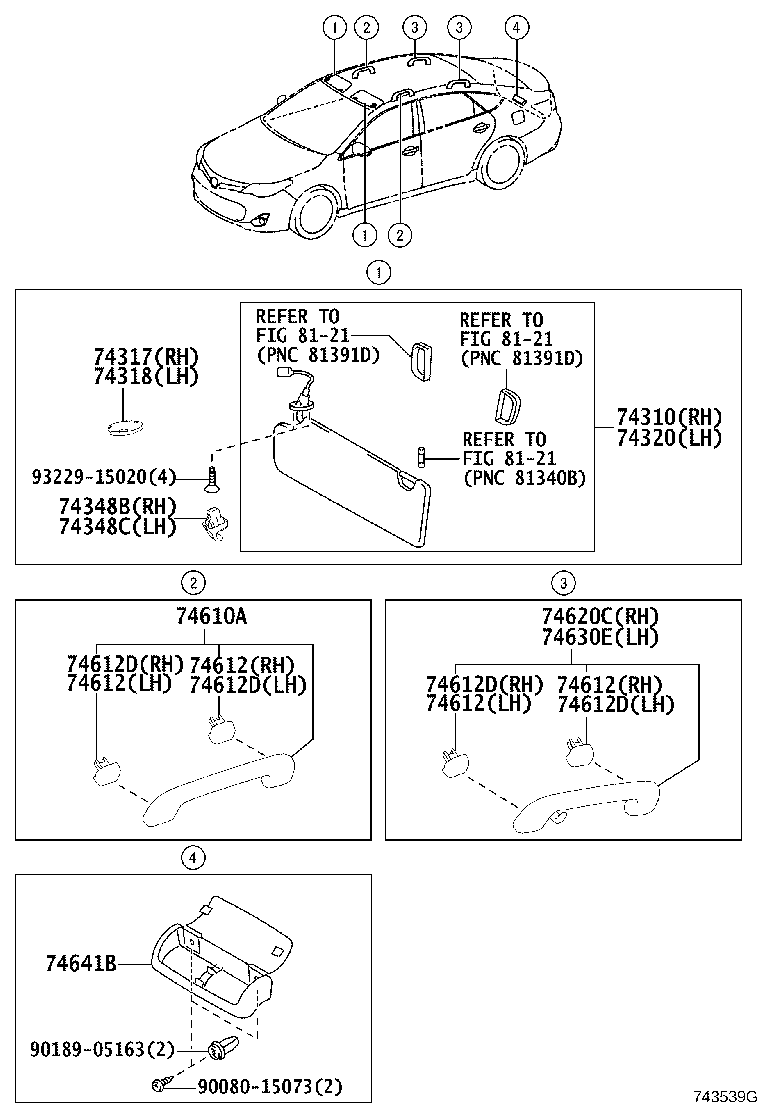

ILLUST NO. 2 OF 2(1210- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-07020B0 |
GSX40 LT GRAY,TRIM1#,2# |
1 | ||
| 74310-07020A0 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74317-60020A7 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74317-60020A7 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-07020A0 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74320-07020B0 |
GSX40 LT GRAY,TRIM1#,2# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-07030A0 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74348-07030B0 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-07030B0 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74348-07030A0 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-06060B1 |
GSX40 LT.GRAY,TRIM1#,2# |
2 | ||
| 74610-06061A1 |
GSX40 FLAXEN,TRIM0# |
2 | ||
| 74610-06060A1 |
GSX40 FLAXEN,TRIM0# |
2 | ||
| 74610-06061B1 |
GSX40 LT.GRAY,TRIM1#,2# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-06110A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74611-06110B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-06110A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74611-06110B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-06110A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74611-06110B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-06110A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74611-06110B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-06100B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06100A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-06100B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06100A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-06100B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06100A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-06100B1 |
GSX40 LT.GRAY,TRIM1#,2# |
4 | ||
| 74612-06100A1 |
GSX40 FLAXEN,TRIM0# |
4 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-06081B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74610-06080A1 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74610-06080B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74610-06081A1 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-06070B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74610-06071A1 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74610-06070A1 |
GSX40 FLAXEN,TRIM0# |
1 | ||
| 74610-06071B1 |
GSX40 LT.GRAY,TRIM1#,2# |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74642-07010C0 |
GSX40 BLACK,TRIM0#,1#,2# |
1 | ||
| Common parts | ||||
| 90080-15073 | ||||
| 90189-05163 | ||||
| 93229-15020 | ||||
| Linked diagrams | ||||
| 8121 | ||||
